PLCC Adapter

The professional and production adapters from Batronix and Winslow Adaptics allows easy and fast working. You can put the chip into the adapter and close the "clamshell" which take for a safely connection. After the programming procedure is finished, you push at the button on the top of the "clamshell" and it will jump up.

The "low-cost" Adapter are a cheap solution for programming plcc chips. You will have to press the chip into the adapter. After the programming procedure is finished, you can pull the chip out of the adapter using a PLCC extractor tool.
You can find additional information about each adapter in its datasheet.

PLCC Adapter

Batronix PLCC20-DIP20 PRO Adapter BA001

  • Fits for: All programmers
  • Conversion: 1:1

Details Datasheet

Batronix PLCC28-DIP24 PRO Adapter BA002

  • Fits for: Galep-4/5...
  • Conversion: F:F

Details Datasheet

Batronix PLCC28-DIP28 PRO Adapter BA003

  • Fits for: BX48, BX448, BX848, Beeprog, Superpro, Leaper-48, ...
  • Conversion: 1:1

Details Datasheet

Batronix PLCC32-DIP28 PRO Adapter BA004

  • IMPORTANT: Only for BX32, BX32P, BX40 and Galep-4/5 and only for 27C64 to 27C512 and 28x64 to 28x256. Bigger PLCC32 Chips requires a PLCC32-DIP32 Adapter!
  • Conversion: F:F

Details Datasheet

Winslow PLCC32-DIP28 Low cost Adapter W2603

  • IMPORTANT: Only for BX32, BX32P, BX40 and Galep-4/5 and only for 27C64 to 27C512 and 28x64 to 28x256. Bigger PLCC32 Chips requires a PLCC32-DIP32 Adapter!
  • Conversion: F:F

Details Datasheet
€ 18.- incl. 19% VAT
€ 15.13 net (VAT Details)
10 pcs. :€ 15.30 / € 12.86
50 pcs. :€ 13.51 / € 11.35
Pricesincl. 19% VAT / net

Batronix PLCC32-DIP32 PRO Adapter BA005

  • Fits for: BX48, BeeProg, Superpro, Leaper-48, ...
  • Fits starting from 27C010/28x512 at BX32-BX40 and Galep-4/5. IMPORTANT: BX32, BX32P, BX40 and Galep-4/5 requires for 27C64 to 27C512 and 28x64 to 28x256 a PLCC32-DIP28 Adapter!
  • Conversion: 1:1

Details Datasheet

Winslow PLCC32-DIP32 Low cost Adapter WA032127

  • Fits for: BX48, BeeProg, Superpro, Leaper-48, ...
  • Fits starting from 27C010/28x512 at BX32-BX40 and Galep-4/5. IMPORTANT: BX32, BX32P, BX40 and Galep-4/5 requires for 27C64 to 27C512 and 28x64 to 28x256 a PLCC32-DIP28 Adapter!
  • Conversion: 1:1

Details Datasheet
€ 18.- incl. 19% VAT
€ 15.13 net (VAT Details)
10 pcs. :€ 15.30 / € 12.86
50 pcs. :€ 13.51 / € 11.35
Pricesincl. 19% VAT / net

Batronix PLCC44-DIP40 PRO Adapter BA006

  • Fits for: BX40, Galep, ...
  • Conversion: F:F

Details Datasheet

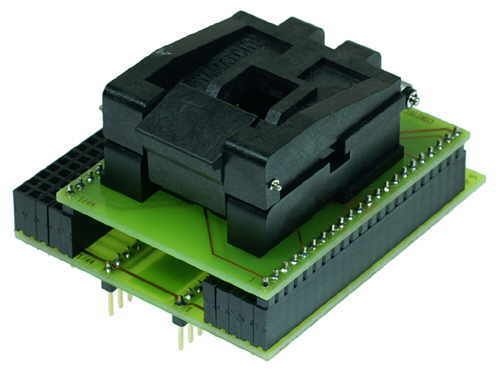

Conitec PLCC44-DIP40 PRO Adapter 210841

  • Fits for: Galep-4/5...
  • Conversion: F:F

Details Datasheet

Winslow PLCC44-DIP40 Low cost Adapter WA044127

  • IMPORTANT: Does NOT fit for memory chips, fits only for microcontrollers!
  • Fits for: Galep, ...
  • Conversion: F:F

Details Datasheet
€ 20.- incl. 19% VAT
€ 16.81 net (VAT Details)
10 pcs. :€ 17.01 / € 14.29
50 pcs. :€ 15.01 / € 12.61
Pricesincl. 19% VAT / net

Batronix PLCC44-DIP44 PRO Adapter BA007

  • Fits for: BX48, BX448, BX848, BeeProg, Superpro, Leaper-48, ...
  • Conversion: 1:1

Details Datasheet

Batronix PLCC68-DIP48 PRO Adapter BA019

  • Fits for: BX48, BX448, BX848
  • Conversion for CC460, 87M12, 87BC6, B57243, 68HC11, PIC18F6585, ...

Details Datasheet

SMD-Vacuum pen with 3 suction cups

Ideally suited for handling SMD-components during assembly of circuit boards as well as for programming adapters. Thanks to the balloon-shaped handle, the vacuum is easily generated and allows a very precise handling of the components. The patented technique holding the vacuum constantly for longer periods prevents the components from dropping off.

Delivery including 3 suction cups (1/8, 1/4 and 3/8 inch)

€ 19.90 incl. 19% VAT
€ 16.72 net (VAT Details)
5 pcs. :€ 17.90 / € 15.04
Pricesincl. 19% VAT / net
