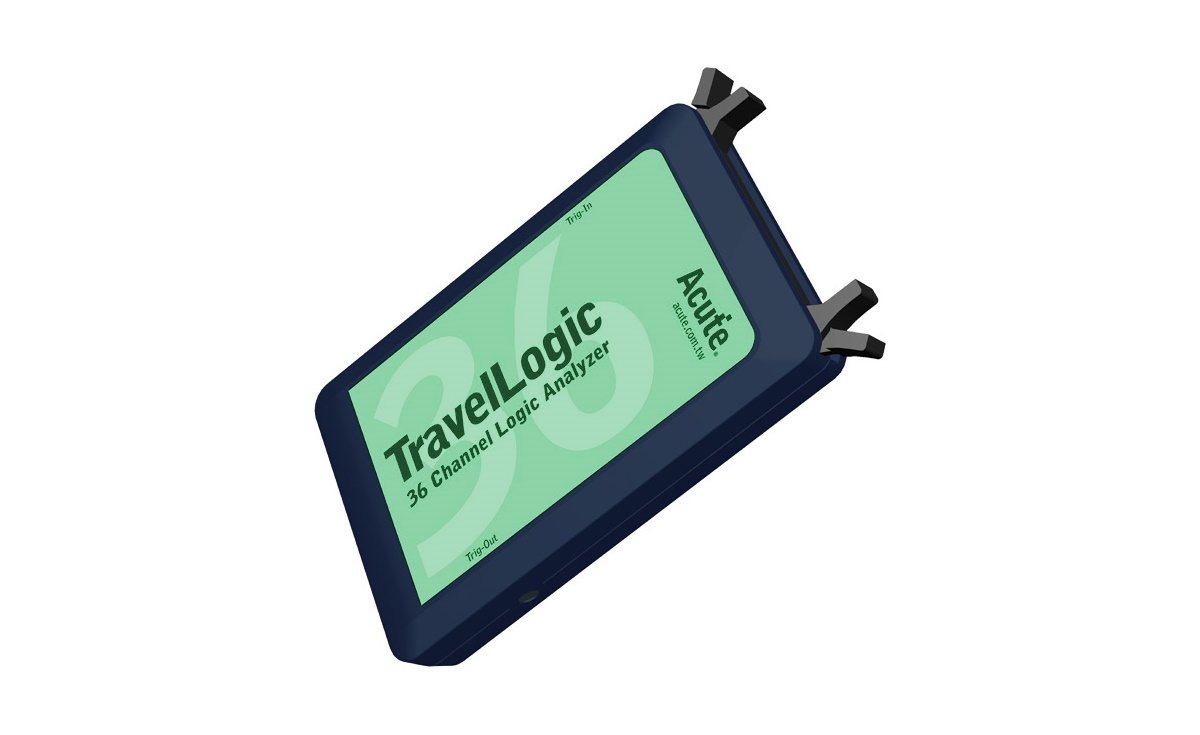

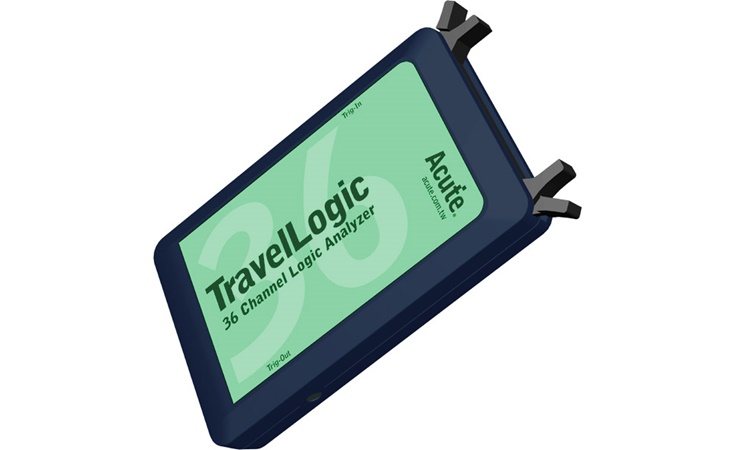

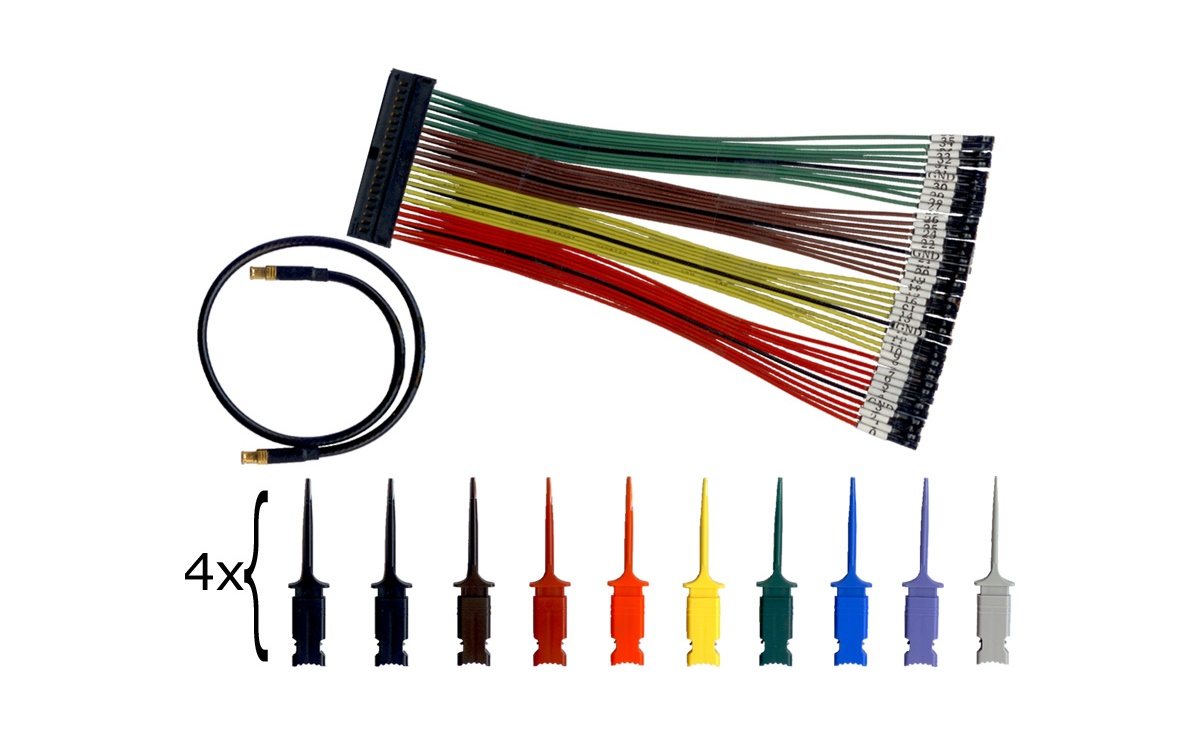

The new PC based logic analyzer from the Acute TravelLogic series offers professional and reliable measurement technology at an unrivalled price/performance ratio.
Thanks to the large RAM storage capacity, up to 512K measurement points can be captured per channel with the TL2136B or 2 million with the TL2236B when all 36 channels are in use. The voltage threshold level for high signals can be set to ±6 volt for the various logic families such as TTL, CMOS, or ECL, and the maximum input voltage can be up to ±40 V DC 15 Vpp AC.
| Device data | TL2118E | TL1236B | TL2236B |
|---|---|---|---|
| Sample Rate (asynchron) | 4 GHz | 4 GHz | 4 GHz |
| Sample Rate (synchron) | 200 MHz | 200 MHz | 200 MHz |
| Channels | 18 channels (+ 4x GND) | 36 channels (+ 4x GND) | 36 channels (+ 4x GND) |
| RAM Size | 18 Mbit | 18 Mbit | 72 Mbit |
| Connection | USB 2.0 | ||
| Dimension | 13.6 × 7.7 × 2.2 cm (5.35" × 3.03" × 0.87") | ||
| Weight with accessories / packaging | 117 g (0.258 lb) | ||
| Warranty | 2 years | ||
| Supported operation systems | Windows 10, 8, 7, Vista, XP, Windows 2000, ME, 98SE |
Trigger Functions
The wide range of trigger options allows for easy measurements even in complex systems. All channels can be used equally and in any combination for triggering purposes. In addition to triggering based on logic levels, the edges or signal patterns can also be used as triggers.
| Trigger | TL2118E | TL2136B | TL2236B |
|---|---|---|---|
| Condition | Pattern, Edge, AND | Pattern, Edge, AND | Pattern, Edge, AND |
| Channels | 18 Channels | 36 Channels | 36 Channels |
| PRE/POST Trigger | |||
| Trigger Levels | 3 (Edge or Pattern) | 3 (Edge or Pattern) | 3 (Edge or Pattern) |
| Continue Trigger | |||
| Trigger Counter | 1 to 255 | 1 to 255 | 1 to 255 |
| Pulse Width Trigger | |||
| Bus Analysis | |||
| Glitch Capture |
| Details | TL2118E, TL2136B and TL2236B |
|---|---|
| Threshold Range | ±6 Volt |
| Accuracy | ±100 mV |
| Maximum Input Voltage | ±40 V DC 15 Vpp AC |
| Impedance | 200 KΩ <5 pF |
Decoding Function
The devices in the Acute TravelLogic series stand out particularly well due to the many available bus decoding functions, such as: 1-Wire, CAN, FlexRay, HDMI-CEC, HDQ, I2C, I2S, I80, IDE, JTAG, LCD1602, LIN, Lissajous, LPC, Microwire, NEC IR, PMBus, PS/2, RC-5, RC-6, SDIO, SerialVID, SMBus, S/PDIF, SPI, SSI, ST7669, UART, UNI/O, USB1.1 and more...

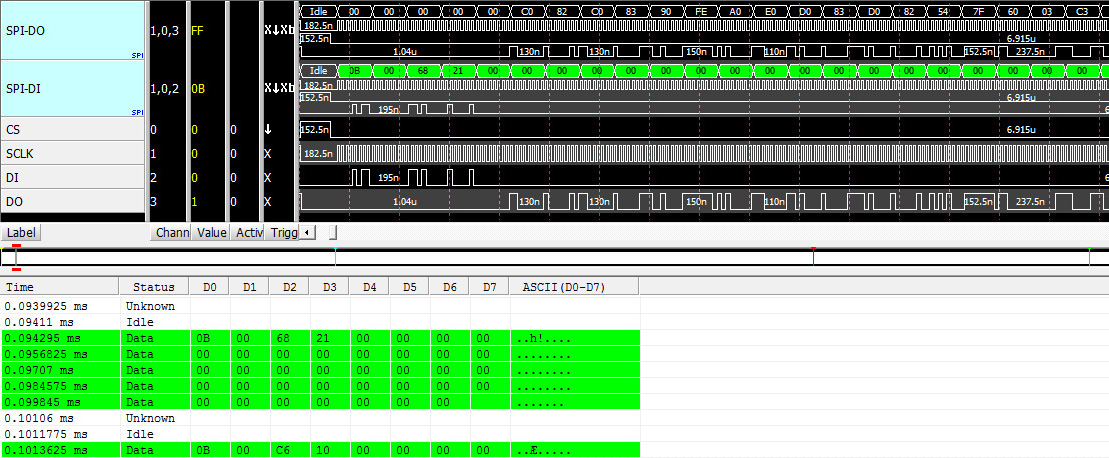

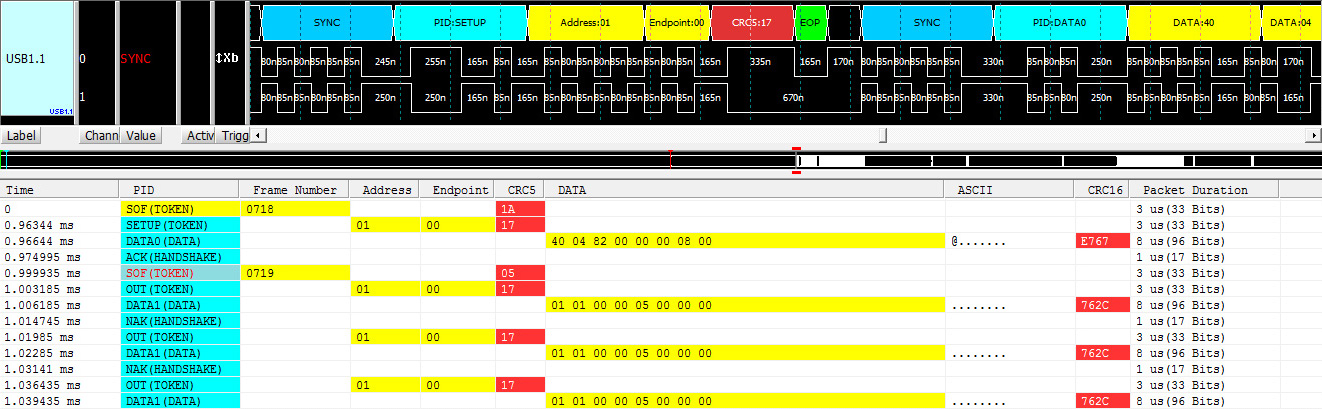

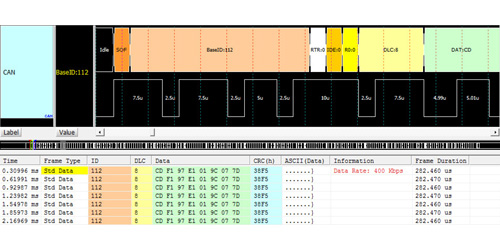

Examples:
Please click on an image below for a larger view:
Memory Allocation
Depending on the sampling rate, a certain number of channels are available and share the entire device memory. The memory is divided according to the following table.
| Sample Rate | available channels | Memory / CH TL2136B | Memory / CH TL2236B |
|---|---|---|---|
| 4 GHz | 36 | 2.5 kbit | 2.5 kbit |
| 2 GHz | 36 | 5 kbit | 5 kbit |
| 1.6 GHz | 4 | 4 Mbit | 16 Mbit |
| 800 MHz | 9 | 2 Mbit | 8 Mbit |
| 400 MHz | 18 | 1 Mbit | 4 Mbit |
| 200 MHz | 1 2 4 6 9 12 18 36 | 18 Mbit 9 Mbit 4.5 Mbit 3 Mbit 2 Mbit 1.5 Mbit 1 Mbit 512 kbit | 72 Mbit 36 Mbit 18 Mbit 12 Mbit 8 Mbit 6 Mbit 4 Mbit 2 Mbit |
Universal Software
The logic analyzer software can also be used to control the PC-based oscilloscopes from Acute. With the aid of an oscilloscope and logic analyzer, combined measurements can be displayed together:
