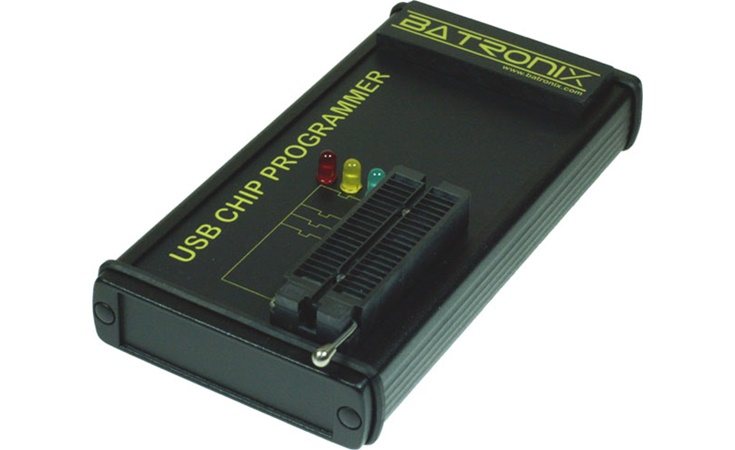

Batronix USB Chip Programmer

Batronix USB Chip Programmer

High quality and compact programmer for commonly-used memory chips.

This article is no longer available. Alternative: Batronix BX40 Bagero II

Compare this product

5 years warranty

30 days trial period

Made in Germany

The USB Chip Programmer is an flexible and simple to use programming devices that support a broad range of chips including Eproms, EEproms, Flash and other storage chips. With a height of only 2.5 cm the enclosures are very practical and are noted for their design and anodized die-cast aluminum construction.  These programming devices are your first choice even in a harsh usage environment.

The exceptional flexibility is attained by providing all power requirements via the USB port. A power adapter or batteries are not required, since all programming voltages between 3 and 25 volts are provided internally by a voltage generator from the USB supply voltage.

All supported chips can be programmed directly in DIP/DIL packages and suitable adapters are available for specialized packages such as PLCC, SOP, TSOP and QFP.

  • Chip Support
    USB Chip Programmer
  • 27' NMOS ab 2732
    OK
  • 27C, 27E, 27SF, 28, 28C, 28HC, 28F, 28SF, 29C, 48', 87', ...
    OK
  • 29F
    OK
  • 29LV, 29W, ...
    OK
  • 39', 49', LPC, FWH
    OK
  • 24', 25', 93', 95' serial EEproms
    not supported
  • 29F100/200/400/800
    OK
  • 16 Bit Chips
    OK
  • Chip updates on customer request
    Please have a look at the new BX programmers if you need support for further chips.
  • Supported chip variants
    Last Update (day.month.year)
    8,414
    03.05.2012
  • Complete chip support list als PDF-Datei
    UCP Chip List

Software

Batronix Prog-Express Software The software and all updates and further versions are free, and the current version can be downloaded from www.Batronix.com at any time and used without an activation key. Hence the devices are still current even after several years. Support for further chips is added quickly and free of charge based on customer requests, as long as these chips can be supported by the hardware.

You will find the complete description at the Prog-Express page.



Video Presentation

We would like to show you in a video presentation how easy it is to use the Prog-Express software and the Batronix USB programming devices. Within 5 minutes you will learn how to program a chip with the data from a file, copy an existing chip, read a chip and program 20 chips in a volume production.

Time: 5 minutes
File size: 5 MByte

  • Hardware Details
    USB Chip Programmer
  • Interface
    USB 2.0 / 1.1 compatible (full speed)
  • Socket
    40 Pin "High Quality" lever socket from Aries
  • Pin driver
    Optimized for memory chips
  • Low voltage support
    down to 3 V
  • Dimensions
    16.5 × 8.5 × 2.5 cm
    (6.5" × 3.3" × 1")
  • Weight without accessories / packaging
    263 g (0.58 lb)
  • Weight with accessories / packaging
    457 g (1.01 lbs)
  • Warranty
    5 Years
  • Software Details
    USB Chip Programmer
  • Process control
    OK
  • Project management
    OK
  • File formats
    Binary, Intel-Hex, Motorola S-Records, Straight-Hex, Tektronix, Extended Tektronix, Jedec
  • File format auto detection
    OK
  • Offset
    Data and chip offsets
  • Splitting
    Complete 16 and 32 Bit splitting functions
  • Serial number generator
    Very comfortable serial number generator with support for external serial number files.
  • Checksum calculation
    Checksum, MD5, SHA-1, EPT1 CRC16 and CRC32
  • Hex-Editor
    Very comfortable and feature rich
  • Software remote control
    Prog-Express can be remote controlled by other software with command line parameters and script files
  • Software updates
    ~2 weekly, free via download
  • Supported operation systems
    Windows 7 (32Bit), Vista(32Bit), XP(32Bit), 2003, 2000, ME, 98SE
  • Languages
    English, Arabic, Chinese Simplified, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese (software only), Norwegian, Portuguese, Russian (software only), Slovenian, Spanish, Swedish, Turkish

You will find further accessories like Adapter for special chip packages and ICs on separate pages.
