- Compact mechanical construction to ensure long term life
- Zero insertion and extraction pressure
- Standard 0.100"(2.54 mm) IC pitch, easy to mount in PC board
- All plastics are UL 94 V-0 grade fire retardant
- Gold plated contact to ensure low contact resistance and long operation life
-
DetailsAll ELK sockets
-
Contact Rating50 VDC, 100 mA
-
Contact Resistance
-
Initial10 mΩ max.
-
After life test20 mΩ max.
-
Insulation Resistance100 MΩ min.
-
Dielectric Strength500 VDC min., for 1 minute
-
Capacitance between adjacent contacts5 pF max.
-
DetailsAll ELK sockets
-
Temperature Rating50 VDC, 100 mA
-
Operating
-
Operating Life10 mΩ max.
-
Humidity20 mΩ max.
-
Vibration100 MΩ min.
-
Solderability500 VDC min., for 1 minute
-
Soldering Heat260 ± 5ºC for 5 ± 1 Seconds

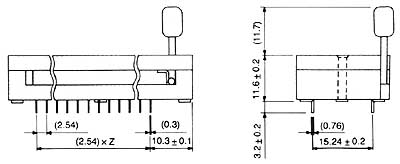

Abmaße
| Pins | Bezeichnung | A | B | C | Z | P |
| 24 | ELK324 | 45.3 | 40.9 | 14.9 | 11 | 7.62 |
| 28 | ELK628 | 50.4 | 46.0 | 22.9 | 13 | 15.24 |
| 32 | ELK632 | 55.5 | 51.1 | 22.9 | 15 | 15.24 |
| 40 | ELK640 | 65.6 | 61.2 | 22.9 | 19 | 15.24 |
alle Angaben in Millimeter!
| Pins | Bezeichnung | A | B | Z |
| 40 | ELK040 | 65.6 | 61.2 | 19 |
| 48 | ELK048 | 75.8 | 71.4 | 23 |
