PMK TETRIS 1000

Be the first to write a review

Active high Z probe

Attenuation	10 : 1
Input Resistance	1 MΩ 0.9 pF
Bandwidth	1.0 GHz
Max. Input	20 V
Cable Length	1.3 m

This article is no longer available.

Description

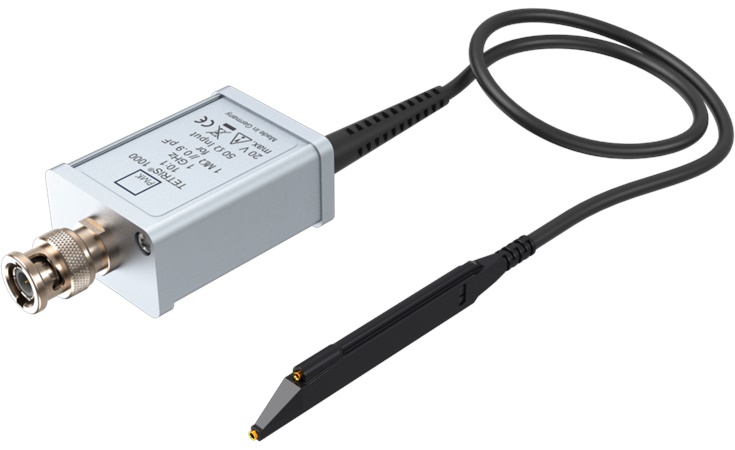

PMK presents a unique inline probing system – the PMK TETRIS 1000 Active Probe which can contact adjacent square pins in 2.54 mm pitch simultaneously. The probe‘s housing is T-shaped so that many probes can be positioned next to each other in a never ending chain.

Like this a number of measurements can be performed at the same time.

The PMK TETRIS 1000 is system-independent and its standard BNC connector can be plugged into any measuring instrument having 50 Ω input.
