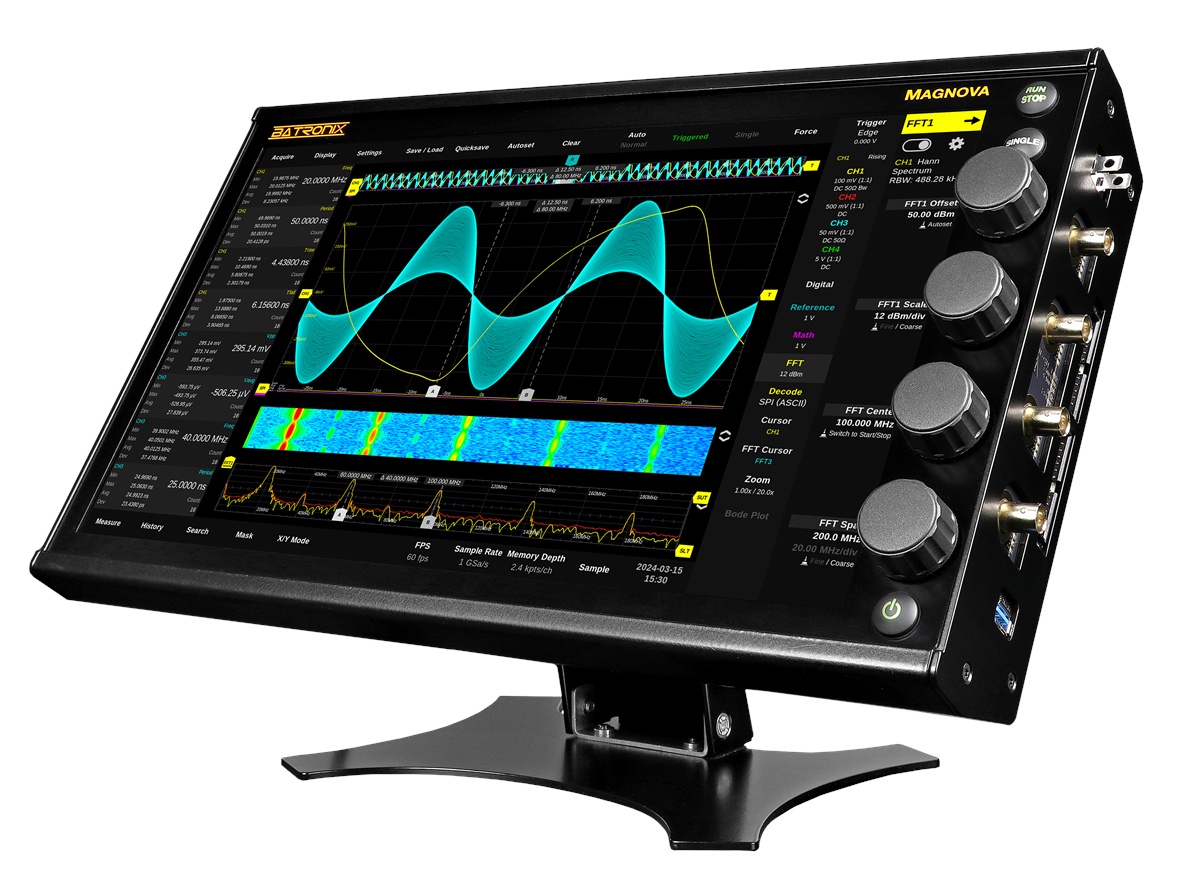

We broke new ground in the development of the Magnova. It is not just another oscilloscope, everything has been redesigned from scratch. With the Flex-Encoder® concept, the four rotary encoders adapt to the currently used function, allowing a wide range of parameters to be conveniently set in all areas. The current parameters and other functions are always shown next to the rotary encoders on the display.
The passive cooling concept ensures that you no longer have to be disturbed by fan noise. With the Magnova, the largest heat sources (processor, FPGA, RAM) are thermally connected directly to the metal case. This means that most of the heat is dissipated directly outside the case. Therefore a fan is unnecessary in normal operation and the Magnova can run silently.
Extensive measurement functions with trend charts, powerful history, signal analysis, search and mask test functions, X/Y mode, reference- and maths channels with freely definable formulas, simultaneous signal decoders, FFT spectra with waterfall display and markers, vertical and horizontal zoom function, Bode plots, display with persistence, adjustable colour grading and much more.
- 4 channels
- 100 MHz - 350 Hz (upgradable)
- 12 bit A/D converter
- 1.6 GSa/s
- 300,000 wfms/s (12,000,000 wfms/s History Mode)
- 320 Mpts
- 15.6" touch display Full-HD (1920x1080 pixels)
- 16 channel logic analyser (optional)
- 90 MHz function generator (optional)
