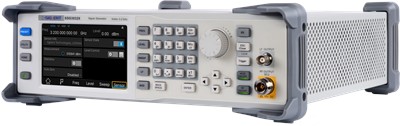

Siglent SSG3000X Signal-generators

4 of 4 Article

Siglent SSG3021X

RF signal generator up to 2.1 GHz, frequency resolution 0.01 Hz, output level from -110 dBm to max. +20 dBm, SSB phase noise typ. -110 dBc/Hz (@1 GHz; 20 kHz offset), 12.7 cm (5") touch display (800x480 pixels). With AM & FM & PM & pulse modulation.

The SSG3000X-PT pulse train generator is available as option.

Signal Generator
Max. Frequency
2.1 GHz
SSB Phase Noise (at 1 GHz; 20 kHz offset)
-110dBc/Hz
Maximum output power (at 1 GHz)
20 dBm
Minimum output power
-110dBm
Frequency Resolution
0.01 Hz
3 years warranty

Nr: SSG3021X

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 1,999.-
net (VAT Details)
€ 2,378.81
incl. 19% VAT

Siglent SSG3021X-IQE

RF signal generator up to 2.1 GHz, frequency resolution 0.01 Hz, output level from -110 dBm to max. +20 dBm, SSB phase noise typ. -110 dBc/Hz (@1 GHz; 20 kHz offset), 12.7 cm (5") touch display (800x480 pixels). With AM & FM & PM & pulse modulation and I/Q modulation (I/Q baseband via external generator).

The SSG3000X-PT pulse train generator is available as option.

Signal Generator
Max. Frequency
2.1 GHz
SSB Phase Noise (at 1 GHz; 20 kHz offset)
-110dBc/Hz
Maximum output power (at 1 GHz)
20 dBm
Minimum output power
-110dBm
Frequency Resolution
0.01 Hz
3 years warranty

Nr: SSG3021X-IQE

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 4,299.-
net (VAT Details)
€ 5,115.81
incl. 19% VAT

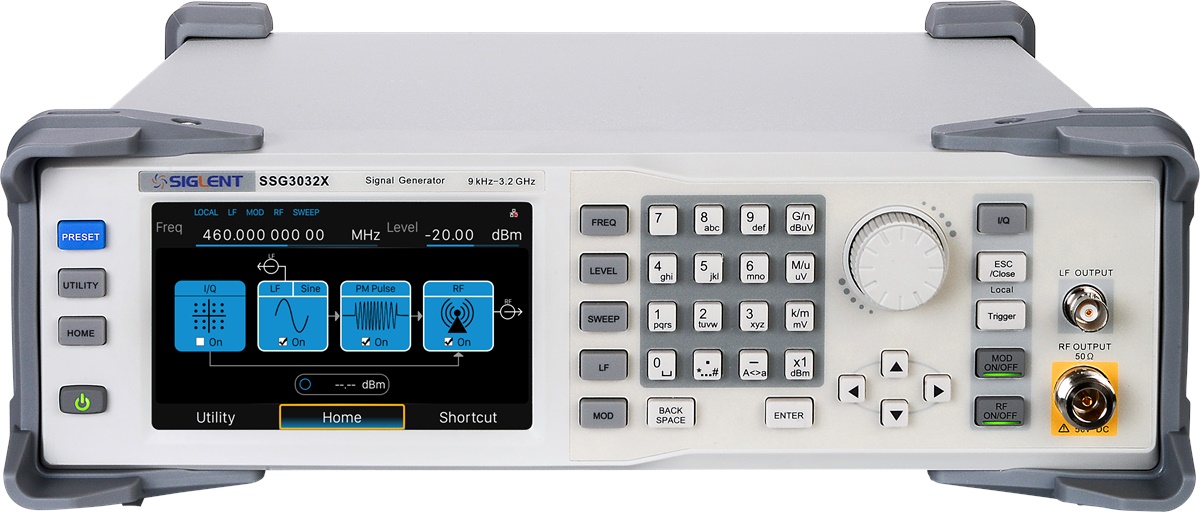

Siglent SSG3032X

RF signal generator up to 3.2 GHz, frequency resolution 0.01 Hz, output level from -110 dBm to max. +20 dBm, SSB phase noise typ. -110 dBc/Hz (@1 GHz; 20 kHz offset), 12.7 cm (5") touch display (800x480 pixels). With AM & FM & PM & pulse modulation.

The SSG3000X-PT pulse train generator is available as option.

Signal Generator
Max. Frequency
3.2 GHz
SSB Phase Noise (at 1 GHz; 20 kHz offset)
-110dBc/Hz
Maximum output power (at 1 GHz)
20 dBm
Minimum output power
-110dBm
Frequency Resolution
0.01 Hz
3 years warranty

Nr: SSG3032X

with FREE shipping within the EU! Shipping costs outside EU
in 21-40 days in stock.
€ 3,499.-
net (VAT Details)
€ 4,163.81
incl. 19% VAT

Siglent SSG3032X-IQE

RF signal generator up to 3.2 GHz, frequency resolution 0.01 Hz, output level from -110 dBm to max. +20 dBm, SSB phase noise typ. -110 dBc/Hz (@1 GHz; 20 kHz offset), 12.7 cm (5") touch display (800x480 pixels). With AM & FM & PM & pulse modulation and I/Q modulation (I/Q baseband via external generator).

The SSG3000X-PT pulse train generator is available as option.

Signal Generator
Max. Frequency
3.2 GHz
SSB Phase Noise (at 1 GHz; 20 kHz offset)
-110dBc/Hz
Maximum output power (at 1 GHz)
20 dBm
Minimum output power
-110dBm
Frequency Resolution
0.01 Hz
3 years warranty

Nr: SSG3032X-IQE

with FREE shipping within the EU! Shipping costs outside EU
in 21-40 days in stock.
€ 5,699.-
net (VAT Details)
€ 6,781.81
incl. 19% VAT
