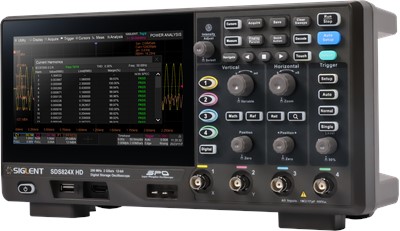

SDS800X HD Oscilloscopes

Picture:

The SDS800X HD oscilloscopes are available in bandwidths of 70 MHz - 200 MHz, have a maximum sample rate of 2 GSa/s, 12-bit analog-digital converters and a maximum record length of 100 Mpts.

The SDS800X HD has a built-in 1 channel waveform generator at 25 MHz (125 MSa/s) and an additional built-in 16 channel logic analyzer can also be added with a software code.

Serial decoders for I²C, SPI, RS232/UART, CAN and LIN are already included!

  • 2 - 4 channel
  • 70 MHz - 200 MHz
  • 2 GSa/s
  • 12-bit analog-digital convertors
  • up to 500.000 wfms/s
  • up to 100 Mpts
  • 17.8 cm (7") touch-display (1024x600 pixel)
  • 16 channel logic analyzer (optional)
  • 25 MHz waveform generator (optional)

Siglent SDS800X HD Oscilloscopes

6 of 6 Article

Siglent SDS802X HD

2 channel oscilloscope with 70 MHz bandwidth, 2 GSa/s and 50 Mpts memory depth with enhanced math and measurement functions and a 17.78 cm LCD display (1,024 x 600 pixel). Serial decoders for I²C, SPI, UART, CAN and LIN are already included! Upgradable to a MSO with a 16 channel logic analyzer. Upgradable with a 1-channel function generator.

Oszilloscope
Max. Capture Rate
500 kwfms/s
Analog Channels
2
Bandwidth
70 MHz
Samplerate
2 GSa/s
Memory
50 Mpts
A/D Converter
12 bit
Display Size
17.8 cm
Logic Analyzer
Touch Control
Waveform-Generator
Serial Protocols
CAN
I²C
LIN
SPI
UART (RS232/422/485)
3 years warranty

No.: SDS802X HD

with FREE shipping within the EU! Shipping costs outside EU
in 21-40 days in stock.
€ 359.-
net (VAT Details)
€ 427.21
incl. 19% VAT

Siglent SDS804X HD

4 channel oscilloscope with 70 MHz bandwidth, 2 GSa/s and 50 Mpts memory depth with enhanced math and measurement functions and a 17.78 cm LCD display (1,024 x 600 pixel). Serial decoders for I²C, SPI, UART, CAN and LIN are already included! Upgradable to a MSO with a 16 channel logic analyzer. Upgradable with a 1-channel function generator.

Oszilloscope
Max. Capture Rate
500 kwfms/s
Analog Channels
4
Bandwidth
70 MHz
Samplerate
2 GSa/s
Memory
50 Mpts
A/D Converter
12 bit
Display Size
17.8 cm
Logic Analyzer
Touch Control
Waveform-Generator
Serial Protocols
CAN
I²C
LIN
SPI
UART (RS232/422/485)
3 years warranty

No.: SDS804X HD
EAN: 726634199315

with FREE shipping within the EU! Shipping costs outside EU
in 41-60 days in stock.
€ 409.-
net (VAT Details)
€ 486.71
incl. 19% VAT

Siglent SDS812X HD

2 channel oscilloscope with 100 MHz bandwidth, 2 GSa/s and 50 Mpts memory depth with enhanced math and measurement functions and a 17.78 cm LCD display (1,024 x 600 pixel). Serial decoders for I²C, SPI, UART, CAN and LIN are already included! Upgradable to a MSO with a 16 channel logic analyzer. Upgradable with a 1-channel function generator.

Oszilloscope
Max. Capture Rate
500 kwfms/s
Analog Channels
2
Bandwidth
100 MHz
Samplerate
2 GSa/s
Memory
50 Mpts
A/D Converter
12 bit
Display Size
17.8 cm
Logic Analyzer
Touch Control
Waveform-Generator
Serial Protocols
CAN
I²C
LIN
SPI
UART (RS232/422/485)
3 years warranty

No.: SDS812X HD
EAN: 726634199353

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 409.-
net (VAT Details)
€ 486.71
incl. 19% VAT

Siglent SDS814X HD

4 channel oscilloscope with 100 MHz bandwidth, 2 GSa/s and 50 Mpts memory depth with enhanced math and measurement functions and a 17.78 cm LCD display (1,024 x 600 pixel). Serial decoders for I²C, SPI, UART, CAN and LIN are already included! Upgradable to a MSO with a 16 channel logic analyzer. Upgradable with a 1-channel function generator.

Oszilloscope
Max. Capture Rate
500 kwfms/s
Analog Channels
4
Bandwidth
100 MHz
Samplerate
2 GSa/s
Memory
50 Mpts
A/D Converter
12 bit
Display Size
17.8 cm
Logic Analyzer
Touch Control
Waveform-Generator
Serial Protocols
CAN
I²C
LIN
SPI
UART (RS232/422/485)
3 years warranty

No.: SDS814X HD
EAN: 726634199322

with FREE shipping within the EU! Shipping costs outside EU
in 11-21 days in stock.
€ 499.-
net (VAT Details)
€ 593.81
incl. 19% VAT

Siglent SDS822X HD

2 channel oscilloscope with 200 MHz bandwidth, 2 GSa/s and 100 Mpts memory depth with enhanced math and measurement functions and a 17.78 cm LCD display (1,024 x 600 pixel). Serial decoders for I²C, SPI, UART, CAN and LIN are already included! Upgradable to a MSO with a 16 channel logic analyzer. Upgradable with a 1-channel function generator.

Oszilloscope
Max. Capture Rate
500 kwfms/s
Analog Channels
2
Bandwidth
200 MHz
Samplerate
2 GSa/s
Memory
100 Mpts
A/D Converter
12 bit
Display Size
17.8 cm
Logic Analyzer
Touch Control
Waveform-Generator
Serial Protocols
CAN
I²C
LIN
SPI
UART (RS232/422/485)
3 years warranty

No.: SDS822X HD

with FREE shipping within the EU! Shipping costs outside EU
in 11-21 days in stock.
€ 539.-
net (VAT Details)
€ 641.41
incl. 19% VAT

Siglent SDS824X HD

4 channel oscilloscope with 200 MHz bandwidth, 2 GSa/s and 100 Mpts memory depth with enhanced math and measurement functions and a 17.78 cm LCD display (1,024 x 600 pixel). Serial decoders for I²C, SPI, UART, CAN and LIN are already included! Upgradable to a MSO with a 16 channel logic analyzer. Upgradable with a 1-channel function generator.

Oszilloscope
Max. Capture Rate
500 kwfms/s
Analog Channels
4
Bandwidth
200 MHz
Samplerate
2 GSa/s
Memory
100 Mpts
A/D Converter
12 bit
Display Size
17.8 cm
Logic Analyzer
Touch Control
Waveform-Generator
Serial Protocols
CAN
I²C
LIN
SPI
UART (RS232/422/485)
3 years warranty

No.: SDS824X HD
EAN: 768599087962

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 699.-
net (VAT Details)
€ 831.81
incl. 19% VAT
