Discover the impressive performance of HIKMICRO thermal imaging cameras!

Perfect for the development and precise troubleshooting of PCBs and assemblies, these thermal imaging cameras offer an unrivalled view into the world of heat. Easily identify hotspots and temperature-sensitive areas to make informed design decisions and recognise potential problems early.

With HIKMICRO, you can rely on a manufacturer that epitomises top quality in thermal imaging technology. Rely on advanced infrared technology to take your development processes to the next level. The product range extends from cost-effective to highly professional models, giving you the opportunity to choose the perfect thermal imaging camera to suit your requirements and budget. Welcome to a world of innovative thermography with HIKMICRO!

All HIKMICRO thermal imaging cameras offer a high accuracy of ±2 ℃ / ±2 % and a fast frame rate of 25 Hz for a smooth display.

HIKMICRO model series

Mini series

The HIKMICRO Mini2 and Mini2 Plus Android thermal imaging cameras are simply connected to a smartphone or tablet and are ready for immediate use. With their low power consumption, they use the battery of the smartphone or tablet and can therefore be used at any time without prior charging.

The Mini2 is equipped with a focus-free wide-angle lens (field of view 50° × 37.2°), making it ideal for building thermography or large-area imaging in general, among other applications.

With its built-in lens (field of view 25° × 18.8°) with manual focus (focus range 7 cm to 10 m), the Mini2 Plus can provide detailed thermal images of, for example, small components on a circuit board. At a greater distance, larger electrical or mechanical devices can also be viewed from a safe distance.

IR Resolution: 256 × 192 (49,152 Pixel)
Temp. range: -20 °C to 350 °C (-4 °F to 662 °F)
NETD: <40 mK

Pocket series

The Pocket series thermal imaging cameras fit in any pocket thanks to their format and size. The devices are easy to operate and have Wi-Fi, hotspot and Bluetooth connections.

The Pocket series is equipped with focus-free wide-angle lenses (field of view 50° × 37° or 50°), making it ideal for e.g. building thermography or large-area images in general. With the optionally available macro lens, the Pocket 2 is also suitable for detailed thermal images of smaller objects and circuit boards.

IR Resolution: 256 × 192 (49,152 pixels) / 96 x 96 (9,216 pixels) (PocketE)
Temp. range: -20 °C to 350 °C (-4 °F to 662 °F)
NETD: <40 mK / <50 mK (PocketE)
Display: 3.5" 640×480 LCD-Touch (PocketE = 320x240)
Dual camera (IR- and optical) with 3 picture modes (thermal, optical and fusion)

Eco series

The particularly low-priced thermal imaging cameras of the Eco series use a relatively low-resolution sensor with 96 x 96 pixels, whose thermal images are upscaled to 240 x 240 pixels by software. Suitable for entry-level applications and when fine details are not important.

The Eco series is equipped with focus-free wide-angle lenses (field of view 50° × 50°) and is therefore ideal for e.g. building thermography or large-area images in general.

IR resolution: 96 x 96 (9,216 Pixel)
Temp. range: -20 °C to 550 °C (-4 °F to 1022 °F)
NETD: <50 mK
Display: 2.4" 240x320 LCD
Eco V with dual camera (IR- and optical) and 3 picture modes (thermal, optical and fusion)
Laser pointer

B series

The B-series offers good thermal imaging resolution, a 3.2" display and Wi-Fi connections at a low weight and compact dimensions.

The series is equipped with focus-free wide-angle lenses (field of view 50° × 37°), making it ideal for e.g. building thermography or large-area imaging in general. With the optionally available macro lens, the thermal imaging cameras can also be used for detailed thermal images of smaller objects and circuit boards.

IR resolution: 256 × 192 (49,152 Pixel)
Temp. range: -20 °C to 550 °C (-4 °F to 1022 °F)
NETD: <40 mK / <50 mK (B21L)
Display: 3.2" 240x320 LCD
B20 with dual camera (IR- and optical) and 4 picture modes (thermal, optical, PIP and fusion)
B21L with laser pointer
Wi-Fi

BX series

The HIKMICRO BX20 is a compact, intrinsically safe thermal imaging camera that has been specially developed for use in potentially explosive atmospheres. The BX20 is certified in accordance with both the European (ATEX) and international (IECEx) directives.

Firefighting

Thermal imaging cameras are a valuable tool for firefighters to recognise dangers, save lives and work more efficiently. Firefighters use thermal imaging cameras in various situations to make their operations more effective and safer.

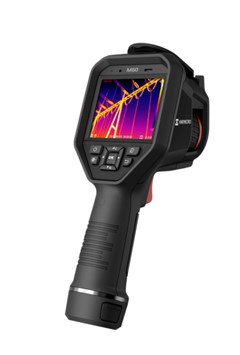

M series

In addition to high-sensitivity and high-resolution thermal imaging sensors, the M-series offers other professional features such as interchangeable batteries, manual focus and audio and text image annotation.

There are 6 unit models available with different resolutions and fields of view from wide angle to light telephoto for different purposes.

IR resolution: 192 × 144 (27,648 Pixel) up to 640 x 480 (307,200 Pixel) (M60)
Temp. range: -20 °C to 550 °C (-4 °F to 1,022 °F), M60 up to 650 °C
NETD: <40 mK / <50 mK (B2L)
Display: 3.5" 640x480 LCD Touch
Dual camera (IR- and optical) and 4 picture modes (thermal, optical, PIP and fusion)
Laser pointer
LED light
Wi-Fi
2 Li-ion batteries and a dual bay charger included

Gx1 series

The Gx1 series offers many professional features such as the 5 fast focus modes (laser AF, continuous AF, AF, manual focus, touch AF), auxiliary lenses (wide angle, telephoto), laser rangefinder, QR scan, GPS and compass functions, removable batteries and audio and text image annotation, in addition to high sensitivity and high resolution thermal imaging sensors.

There are 6 unit models available with different resolutions, temperature ranges and fields of view from wide angle to light telephoto for different purposes.

IR resolution: 384 × 288 (110,592 pixels) up to 640 x 480 (307,200 pixels) (G61(H))
Temp. range: -20 °C to 650 °C (-4 °F to 1,202 °F), G41H & G61H up to 2,000 °C
NETD: <35 mK
Display: 4.3" 800x480 LCD
Dual camera (IR- and optical) and 5 picture modes (thermal, optical, blending, PIP and fusion)
Laser rangefinder
LED light
Wi-Fi
Bluetooth
HMDI
GPS & Compass
3 Li-ion batteries and a dual bay charger included
