HIKMICRO Eco

Be the first to write a review

Thermal imaging camera with 96 x 96 (9,216) pixel IR sensor resolution, -20 to + 550 °C temperature range, 50° x 50° field of view (FOV), 6.1 cm (2.4") display with 240 x 320 pixels. Extra robust with 2 m drop safety and protection class IP54.

This article is no longer available.

Description

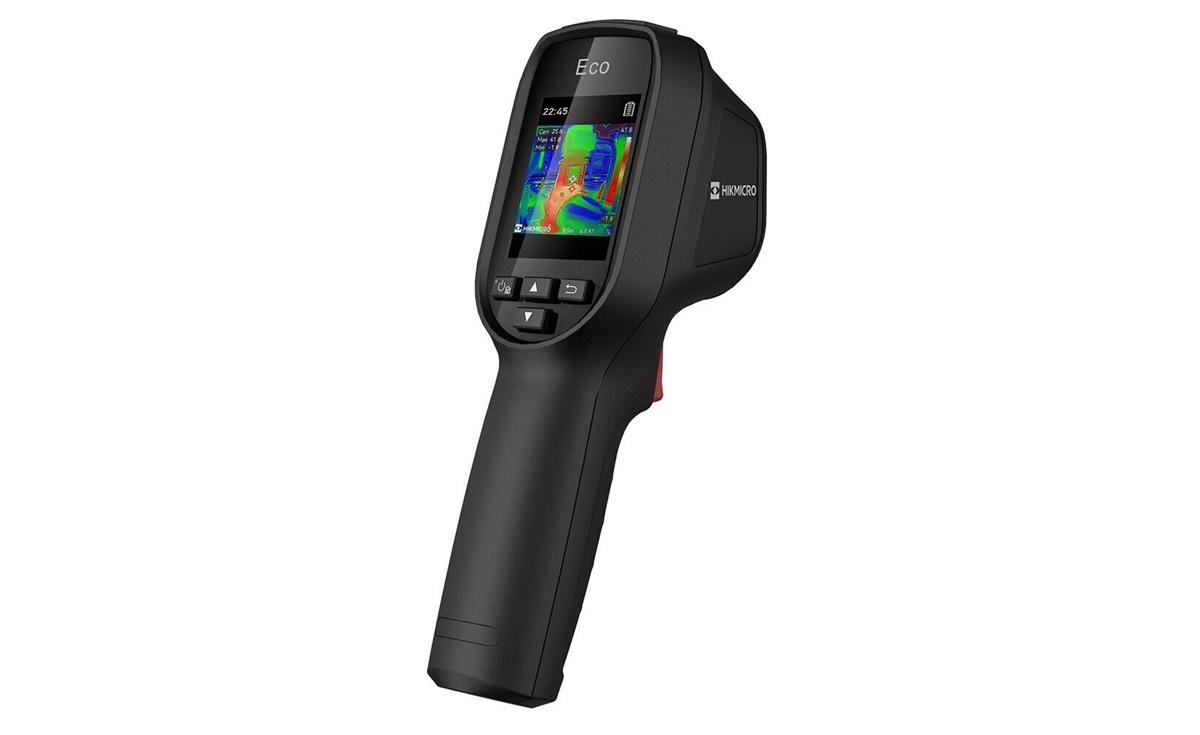

The HIKMICRO Eco is a pure thermal imaging camera for capturing infrared images.

The HIKMICRO SuperIR image enhancement technology scales stored thermal images and live views from 96 × 96 (9,216 pixels) to a resolution of 240 x 240 (57,600 pixels).

It detects temperature changes and measures in real time for each of the central, hot and cold point. 3 measuring points are user-definable and 7 colour palettes are available for display.

A laser pointer facilitates the exact aiming of the desired measuring area.

For live viewing and recordings, the 4 GB internal memory offers space for approx. 30,000 images.

Can be installed on a tripod using a standard thread. This affordable, everyday model can be used for many different application scenarios.

Specification	HIKMICRO Eco, HIKMICRO Eco-V
IR Resolution	96 x 96 (9,216 Pixel), mit SuperIR 240 x 240 (57,600 Pixel)
Optical resolution	The Eco has no normal camera, for the Eco-V = 640 x 480
Field of view (FOV)	50° × 50°
Object Temperature Range	-20 to 550 °C
NETD	< 50 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Accuracy	±2 °C / ±2 %
Interface	Type-C USB
Focus mode	Focus free
Min. focus distance	0.1 m
Focal length	1.35 mm
Drop Test Height	2 m
Protection level	IP54
Power	Rechargeable Li-ion battery for approx. 8 h operation

Wide angle

With a wide-angle lens, the HIKMICRO Eco and Eco V offer a field of view of 50° × 50° and are ideal for scanning walls, floors and facades to detect problems such as water leaks, insulation problems and air pockets. With the optional macro lens, the thermal imaging cameras can also be used for detailed thermal imaging of smaller objects and circuit boards.

Smooth display with 25 Hz

The high frame rate of 25 Hz ensures that thermal liveo recordings are smooth and jerk-free and that no detail is lost in the recording.

High Image Quality

Features a sensitive (NETD < 50 mK) detector, along with optimized image enhancement algorithms to provide clear thermal images.

3 Image modes (Eco V only)

Built-in IR camera and optical camera that allow you to switch between 3 image modes (thermal image, visual image and fusion). "Fusion" adds important details from a 0.3 megapixel visual camera to the IR image for extra detail and clarity.

Measurement

Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20 °C to 550 °C ( -4 °F to 1,022 °F) with a temperature accuracy up to +/-2 °C (+/-3.6 °F) or +/-2 % of reading.

Color palettes High Temperature Alarm

Offers color palettes White Hot, Black Hot, Rainbow, Ironbow, Redhot, Fusion (Eco V only) & Above Alarm so you can choose the ideal color scale for your job.
