Antennas
46 of 46 Article
BicoLOG Antennas

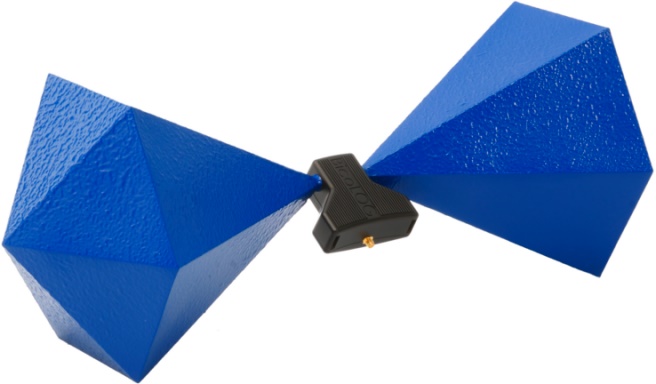

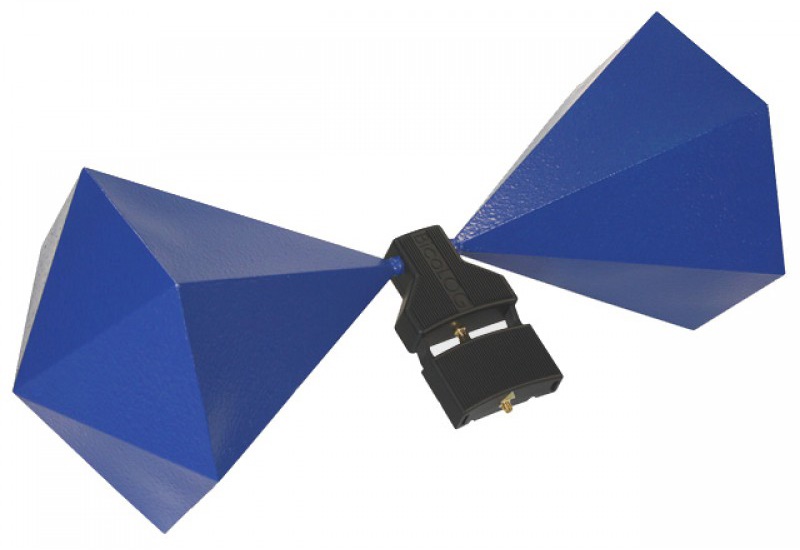

The BicoLOG® antennas support low frequency measurements down to 20MHz thanks to their biconical setup. Because of this they are ideal for EMC Precompliance measurements in the lower frequency range. Every BicoLOG® includes a CD containing high resolution calibration data.
- Optimal for the usage with a spectrumanalyzer for high-quality EMC measurements in the lower frequency range.
- For interference field strength measurements and EMC immunity tests.
- Usable for different measurements using different standards, for example: CISPR, VDE, MIL, VG, EN 55011, EN 55013, EN 55015, EN 55022, MIL-Std-461
- Low weight and dimensions.
- The "X" models include a low noise pre-amplifier (Operation via battery or power supply). Can be used without the pre-amplifier.
- Robust design, usable outside and mobile.
HyperLOG Antennas

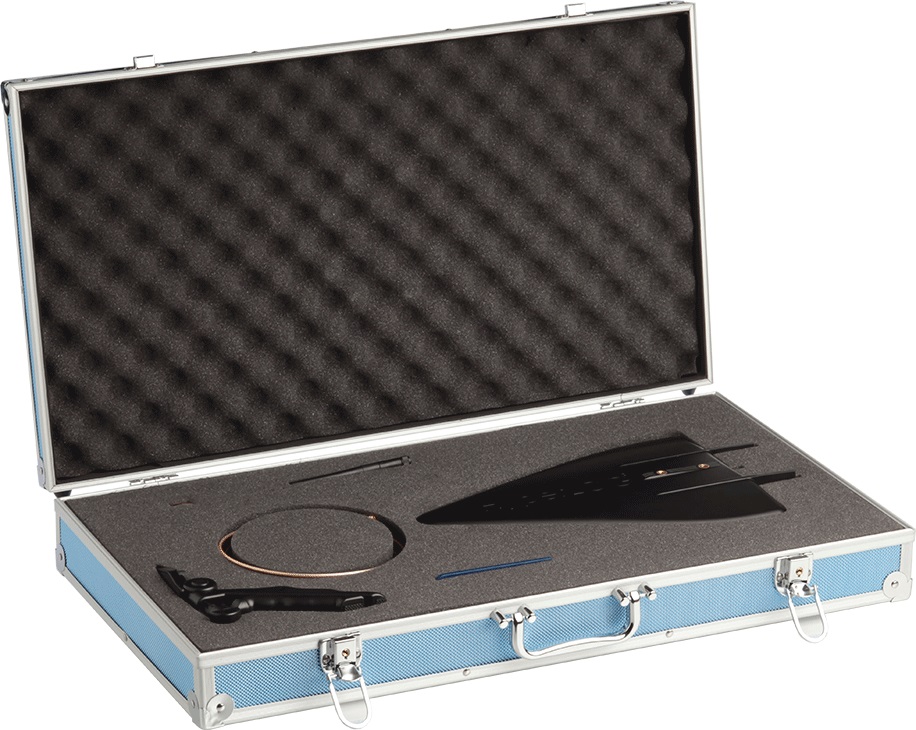

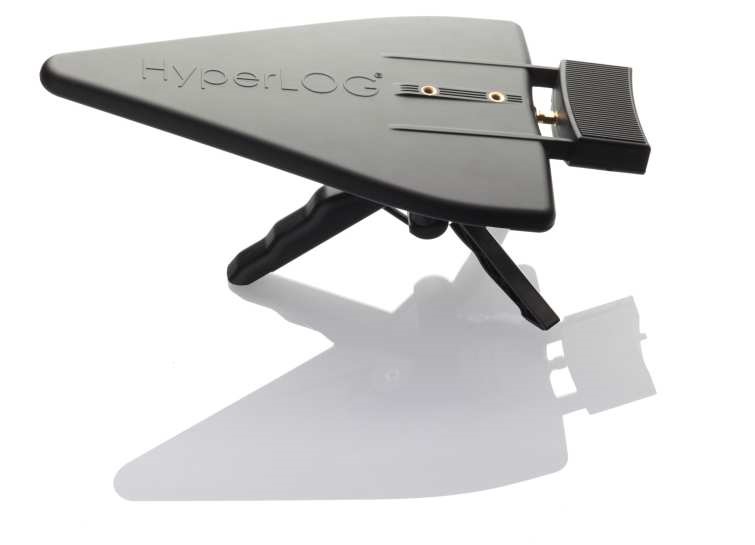

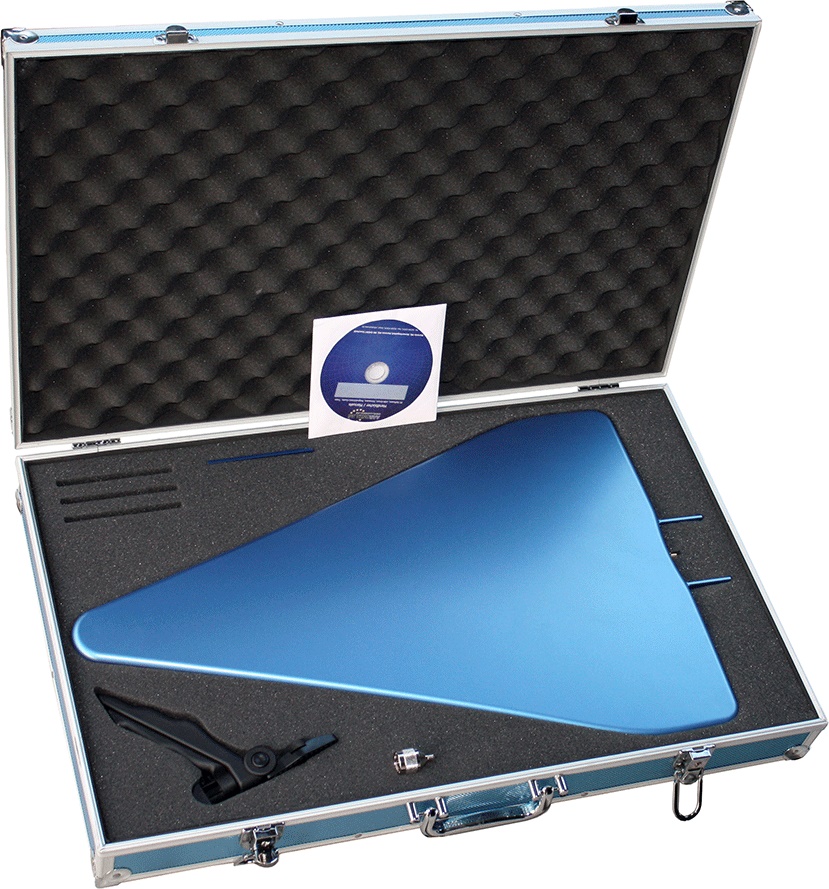

The HyperLOG® antennas offer a high directional accuracy and gain via a logarithmic periodic (LogPer) construction. Because of this they are ideal for EMC Precompliance Measurements in the higher frequency range. Every HyperLOG® includes a CD containing high resolution calibration data.
- Optimal for the usage with a spectrumanalyzer for high-quality EMC measurements in the upper frequency range.
- For interference field strength measurements and EMC immunity tests.
- Usable for different measurements using different standards, for example: CISPR, VDE, MIL, VG, EN 55011, EN 55013, EN 55015, EN 55022, MIL-Std-461
- Calibration data can optionally be saved and read using an IC on the antenna.
- Polarization plane is freely adjustable.
- Low weight and dimensions.
- The "X" models include a low noise pre-amplifier (Operation via battery or power supply). Can be used without the pre-amplifier.
- Robust design, usable outside and mobile.
HyperLOG EMI Antennas
The HyperLOG® EMI antennas combine the advantages of a biconical and a logarithmic-periodic antenna and support the entire frequency range from 20 MHz to 3/6 GHz with a single antenna. Because of this they are ideal for EMC Precompliance Measurements in the complete frequency range. Due to the extremely high accuracy of 0.3 dB over the entire range, these antennas can even be used as a reference antenna. This enables the user to calibrate the complete measuring setup. The delivery of each HyperLOG® EMI includes a CD with the complete, high-resolution calibration data.
The use of the HyperLOG® EMI eliminates the usual and very error-prone antenna exchanges, since only one antenna for the entire frequency range is required. This saves considerable costs since the measurement time is drastically shortened and recurring errors in the antenna conversions or cable connections are completely eliminated. The HyperLOG® EMI can also be used as a high-performance transmit antenna with up to 310 watts. As a result, the antenna is easily suitable for immunity measurements, even if very high field strengths of more than 10 V / m are required.
- Optimal for use with a spectrum analyzer for high-quality EMC measurements over the entire frequency range.
- Ideal for interference field strength measurements and EMC immunity tests (FCC15, EN55022, EN55011, CISPR, ...).
- The antennas are u.a. suitable for measurements according to the following standards and procedures: CISPR, VDE, MIL, VG, EN 55011, EN 55013, EN 55015, EN 55022, MIL-Std-461
- Robust design, also suitable for outdoor installation and mobile use
OmniLOG Antennas

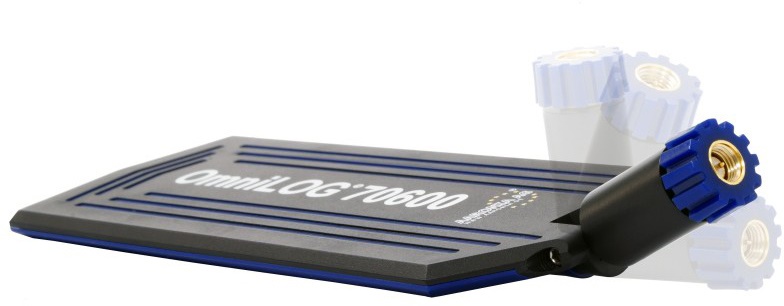

The OmniLOG® antennas offer omni-directional receiving characteristics. With this it's possible to measure the direct, radial field strength without adjusting the antenna.
- Optimal for the usage with a spectrumanalyzer for measurements in the LTE, GSM (GSM900, GSM1800, GSM1900), UMTS and WIFI frequency ranges.
- High isotropy starting at 300 MHz up to 8 GHz (depending on model)
- 90° swivel with SMA connector (male)
- Linear polarisation
- Low weight and dimensions.
- Robust design, usable outside and mobile.
Active Monopole Antenna
The TBMA5B is an active Monopole Antenna, expanding the Tekbox product range of affordable EMC pre-compliance test equipment. The monopole antenna is designed for radiated emission measurements within the frequency range 9 kHz – 30 MHz. The monopole antenna has a rod with height of 104 cm and provides excellent sensitivity to carry out radiated emission measurements as specified in CISPR 25 or MIL-STD-461G.
