Tekbox Line Impedance Stabilisation Networks


LISNs are key components in EMC testing. To monitor for unwanted emissions on the supply line, the LISN is inserted into the supply line of the DUT and used in conjunction with a test receiver or spectrum analyser. Typically, the receiver or spectrum analyser is controlled by software such as EMCview. The software ensures that the analyser settings comply with the CISPR 16 specifications and allows you to load and run preconfigured tests for all major EMC standards. Measurement data points are plotted against the limits of the selected standard and can be exported as a test report. One of the most important features of a LISN is that it provides a fixed source impedance for the DUT. This ensures that the measurement is repeatable regardless of the output impedance of the power source used. This feature is also used in many other EMC test setups where LISNs are used to establish a fixed supply impedance rather than to measure radiated emissions. As a result, LISNs can be found in test setups for radiated emissions, immunity testing and a variety of other applications.


Tekbox LISN, TBL5000 series


Model TBL5016-1 TBL5016-2 TBL5016-3 TBL5032-3
Frequenzy range 9 kHz-30 MHz 9 kHz-30 MHz 9 kHz-30 MHz 9 kHz-30 MHz
Impedance 50 Ω (50 µH + 5 Ω) 50 Ω (50 µH + 5 Ω) 50 Ω (50 µH + 5 Ω) 50 Ω (50 µH + 5 Ω)
Further specs 6 A LISN
1 path
CISPR16-1-2, MIL-STD461F
LISN type: V-AMN, configurable as 50 Ω/50 µH + 5 Ω
or 50 Ω/50 µH
Maximum current: 16 A continuous
Operating voltage range: 0-250 VDC; 0-250 VAC (50/60 Hz),
0-120 VAC (400 Hz)
Fuse: 2x 16 A slow
High current plug/screw terminals - male:
Phoenix Contact 1998933,
female: Phoenix Contact 1967375
Dimensions (mm): 250 x 225 x 140 (incl. ground brackets)
2.7 kg
6 A LISN
2 paths
CISPR16-1-2
Artificial hand: 220 pF + 511 Ω
Switchable PE: 50 Ω||50 µH
Limiter/attenuator: 150 kHz-30 MHz; 10 dB
Air core inductors
Line voltage: max. 240 V/50-60 Hz
Max. current: 16 A at 23 °C
DUT socket: Country specific
Measurement connector: 50 Ω BNC
Power connector: IEC 60320 C19
Operating temperature: +5-+40 °C; 5-80 % rel. humidity
Safety: Safety Class I, IEC 1010-01
16 A LISN
3 paths
CISPR16-1-2
Artificial hand: 220 pF + 511 Ω
Switchable PE: 50 Ω||50 µH
250 µH pre-filter
Separate RF outputs for each line and neutral
Air core inductors
Line voltage: max. 540 V/260 V/50-60 Hz, CAT II
Max. current per line and neutral: 16 A at 23 °C each
3-phase DUT socket: CEE/IEC60309, 3L+N+PE, 16 A, female
Single-phase DUT socket: Country specific
Power connector: CEE/IEC60309, 3L+N+PE, 16 A, male
Measurement connectors: 50 Ω BNC
Operating temperature: +5-+40 °C; 5-80 % rel. humidity
Safety: Safety Class I, IEC 1010-01
32 A LISN
3 paths
CISPR16-1-2
Artificial hand: 220 pF + 511 Ω
Switchable PE: 50 Ω||50 µH
250 µH pre-filter
Separate RF outputs for each line and neutral
Air core inductors
Line voltage: max. 540 V/260 V; 50-60 Hz, CAT II
Max. current per line and neutral: 32 A at 23 °C each
3-phase DUT socket: CEE/IEC60309, 3L+N+PE, 32A, female
Single-phase DUT socket: country specific
Power connector: CEE/IEC60309, 3L+N+PE, 32 A, male
Measurement connectors: 50 Ω BNC
External 9 kHz high pass filter, N-male/N-female
Operating temperature: +5-+40 °C; 5-80 % rel. humidity

Tekbox, other LISN models


Model TBOH01 TBL0550-1 TBL05100-1 TBL50100-1 TBLC08
Impedance 50 Ω 5 µH 50 Ω 5 µH Configurable, 50 Ω 5 µH + 1 Ω, 50 Ω 5 µH 50 Ω 50 µH (50 µH+5 Ω)//50 Ω
Frequency range 150 kHz-108 MHz 150 kHz-108 MHz 150 kHz-30 MHz 150 kHz-30 MHz 9 kHz-30 MHz
Path 1 1 1 1 2
Max. current 10 A 50 A 100 A 100 A 8 A
Max. voltage 60 V nominal, component rating: 250 V 60 V nominal, component rating: 250 V 250 V nominal, component rating: 350 VAC/1000 VDC 250 V 240 V
EUT socket 4 mm (banana) Phoenix high current Phoenix high current Phoenix high current Country specific mains socket
Additional features
Filter/limiter/attenuator, switchable
Artificial hand connection
PE switchable: 50 Ω 50 µH

Line Impedance Stabilisation Networks (LISN) and accessories

13 of 13 Article

TekBox TBOH01

1-path DC Line Impedance Stabilization Network (LISN) for measurements in the frequency range from 150 kHz to 110 MHz in accordance with the CISPR 25 standard for DC-supplied devices up to 60 V / 10 A.

For measurements normally two pieces of the TBOH01 are needed. The combination with the Tekbox TBLM01 LISN Mate allows separate measurement of common mode and differential mode noise.

An external capacitor can be easily connected to the TBOH01 terminals (according to CISPR 25, ISO 11452-2/4/5 and DO-160 standards).

2 years warranty

Nr: TBOH01
EAN: 8936120675304

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 270.-
net (VAT Details)
€ 321.30
incl. 19% VAT

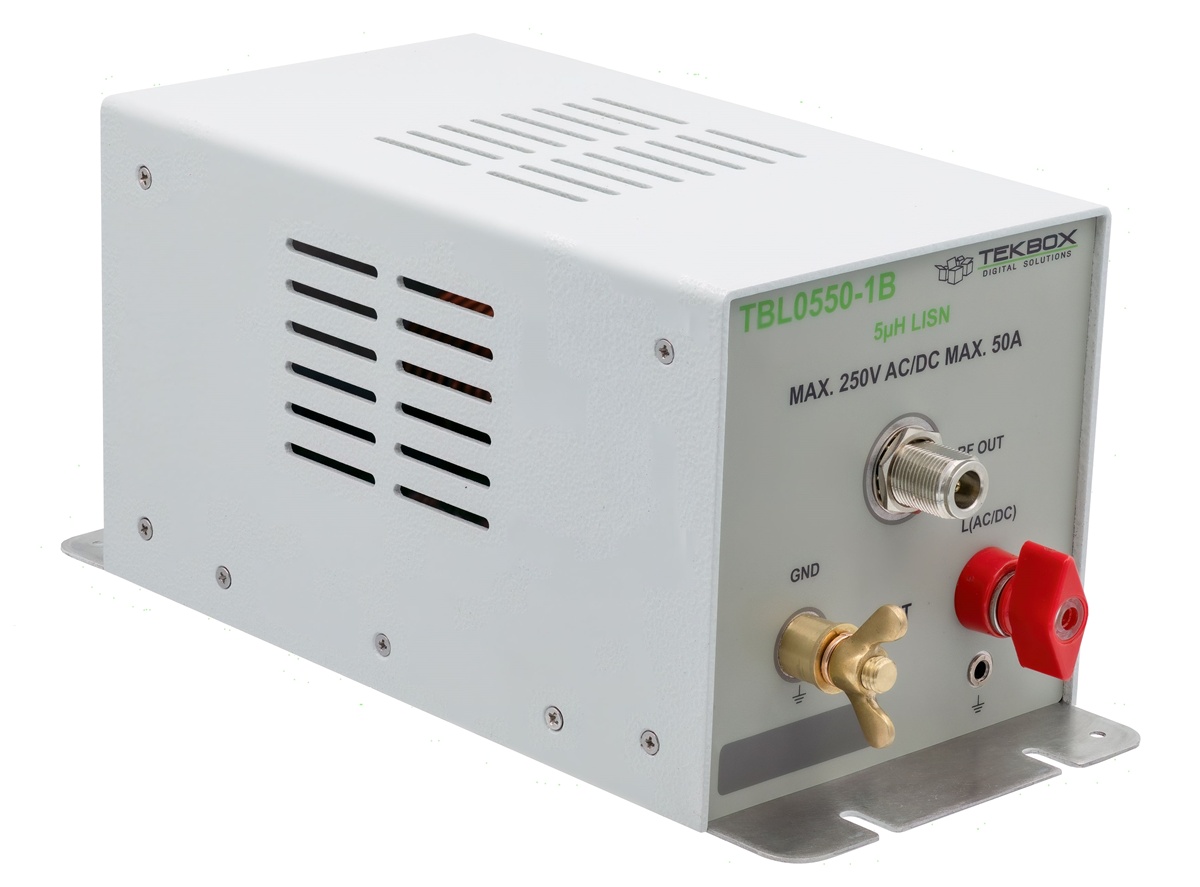

TekBox TBL0550-1

5 µH 50 A line impedance stabilisation network LISN

2 years warranty

Nr: TBL0550-1
EAN: 8936120670194

with FREE shipping within the EU! Shipping costs outside EU
in 21-40 days in stock.
€ 598.-
net (VAT Details)
€ 711.62
incl. 19% VAT

TekBox TBL0110-2

2-path Impedance Stabilization Network (LISN) for measurements in the frequency range from 30 Hz to 500 MHz in accordance with the ECSS-E-ST-20-07C Rev 1 standard.

The TBL0110-2 implementation aims for use in EMC measurements of small satellites and spacecraft. The LISN does not have an output for conducted emission measurements; instead, it merely functions as a network for line impedance stabilisation.

2 years warranty

Nr: TBL0110-2

with FREE shipping within the EU! Shipping costs outside EU
in 11-30 days after order in stock.
€ 950.-
net (VAT Details)
€ 1,130.50
incl. 19% VAT

TekBox TBL05100-1

50 µH 50 A line impedance stabilisation network LISN

2 years warranty

Nr: TBL05100-1

with FREE shipping within the EU! Shipping costs outside EU
in 11-30 days after order in stock.
€ 1,375.-
net (VAT Details)
€ 1,636.25
incl. 19% VAT

TekBox TBL50100-1

50 µH 100 A line impedance stabilisation network LISN

2 years warranty

Nr: TBL50100-1

no longer available

TekBox TBLC08

2-path AC Line Impedance Stabilization Network (LISN) for measurements in the frequency range from 9 kHz to 30 MHz in accordance with the CISPR16-1-2 standard on AC-supplied devices up to 240 V / 8 A.

The measurement can be switched between phase and neutral conductor. With switchable attenuation and artificial hand connection (for measurement of hand-held DUTs).

2 years warranty

Nr: TBLC08
EAN: 8936120675311

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 759.-
net (VAT Details)
€ 903.21
incl. 19% VAT

TekBox TBL5016-1

1-path AC/DC Line Impedance Stabilization Network (LISN) for measurements in the frequency range from 9 kHz to 100 MHz in accordance with CISPR 16-1-2 and MIL-STD-461F standards on AC- and DC-supplied devices up to 250 V / 16 A.

Two pieces of the TBL5016-1 are typically required for DC or single-phase measurements, and four pieces for three-phase supply. Combining with the Tekbox TBLM01 LISN Mate allows separate measurement of common mode and differential mode noise.

The TBL5016-1 is a 50Ω/50µH+5 Ω single line design with a high current jumper to short out the 5 ohm resistor and configure it as a 50Ω/50µH LISN according to CISPR 16-1-2.

2 years warranty

Nr: TBL5016-1
EAN: 8936120670217

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 669.-
net (VAT Details)
€ 796.11
incl. 19% VAT

TekBox TBL5016-2

2-path AC Line Impedance Stabilization Network (LISN) for measurements in the frequency range from 9 kHz to 30 MHz in accordance with the CISPR16-1-2 standard for AC-supplied devices up to 240 V / 16 A.

Conducted noise can be measured on the phase and on the neutral conductor. The TBL5016-2 is equipped with a switchable limiter/attenuator and an artificial hand connection.

2 years warranty

Nr: TBL5016-2
EAN: 8936120670316

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 909.-
net (VAT Details)
€ 1,081.71
incl. 19% VAT

TekBox TBL5016-3

4-path AC Line Impedance Stabilization Network (LISN) for measurements in the frequency range from 9 kHz to 30 MHz in accordance with the CISPR16-1-2 standard for single-phase and three-phase AC-supplied equipment up to 450 V (260 V) / 16 A.

The TBL5016-3 has separate RF outputs for each phase and the neutral conductor and can be coupled with the Tekbox TBLM1 LISN Mate to split the emissions into their common mode and differential components.

With artificial handheld connector (for measuring handheld DUTs).

2 years warranty

Nr: TBL5016-3
EAN: 8936120670828

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 2,199.-
net (VAT Details)
€ 2,616.81
incl. 19% VAT

TekBox TBL5032-3

4-path AC Line Impedance Stabilization Network (LISN) for measurements in the frequency range from 9 kHz to 30 MHz in accordance with the CISPR16-1-2 standard for single-phase and three-phase AC-supplied equipment up to 450 V (260 V) / 32 A.

The TBL5032-3 has separate RF outputs for each phase and the neutral conductor and can be coupled with the Tekbox TBLM1 LISN Mate to split the emissions into their common mode and differential components.

With artificial handheld connector (for measuring handheld DUTs). External 9 kHz coaxial high-pass filter included in the kit.

2 years warranty

Nr: TBL5032-3

with FREE shipping within the EU! Shipping costs outside EU
in 11-30 days after order in stock.
€ 2,690.-
net (VAT Details)
€ 3,201.10
incl. 19% VAT

TekBox TBLM01

The TBLM01 LISN Mate can be used to measure common-mode and differential mode noise measured separately. The LISN Mate is connected to the output of a LISN which is inserted into the positive supply line, and to a second LISN connected to the negative supply line (e.g. with a (e.g. with two TBL5016-1 or two TBOH01).

2 years warranty

Nr: TBLM01
EAN: 8936120670132

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 270.-
net (VAT Details)
€ 321.30
incl. 19% VAT

TekBox DC-LISN-Combo1

The kit is ideal for testing conducted noise emissions from DC powered devices, such as a DC power supply. Eg for testing assemblies in accordance with CISPR 25 in the automotive sector.

The set consists of:

  • 2 x 5 μH DC-LISN up to 10 A TBOH01
  • 1 x LISN-Mate TBLM1
  • 2 x Coaxial cable (RG-223), BNC male to BNC male, 35 cm
  • 1 x Coaxial cable (RG-58), BNC male to N male, 75 cm
  • 1 x 50 Ω Termination resistor, 2 W
2 years warranty

Nr: DC-LISN-Combo1
EAN: 8936120670170

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 769.-
net (VAT Details)
€ 915.11
incl. 19% VAT

R&S® ENV216

Line impedance stabilization network by Rohde & Schwarz with a frequency range from 9 kHz to 30 MHz (according to CISPR 16) with a maximum current of 16 A. The R&S® ENV216 can be remote controlled by using the RS232 interface.

3 years warranty

Nr: 3560.6550.12

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 3,040.-
net (VAT Details)
€ 3,617.60
incl. 19% VAT
