Discover the oscilloscopes from Rohde & Schwarz

The Rohde & Schwarz oscilloscopes convince with their excellent features and the intuitive operation, which makes the use even more comfortable. The appealing user interface from the RTB2000 up to the MXO 5 model series enables best comparability and a secure Operation of various models. A variety of applications is possible by covering a bandwidth of 50 MHz up to 2 GHz.

Current models

RTC1000

The RTC1000 combines the functionality of an oscilloscope, logic analyzer, protocol analyzer, frequency counter, pattern generator, function generator, digital voltmeter and component tester at an affordable price in a single device.

  • 2 analog channels and 8 digital channels (option)
  • 50 to 300 MHz bandwidth (upgradable)
  • 1 GSa/s each channel (2 GSa/s interleaved)
  • 1 Mpts each channel (2 Mpts interleaved)

RTB2000

The triple "Power of Ten" 10-bit-A/D-converter, 10 Msample memory and 10.1 "touch screen - in combination with intelligent operating concepts makes the RTB2000 digital oscilloscope the perfect tool for university laboratories, the troubleshooting in embedded designs and for production and service departments. The high resolution of 1280x800 pixels of the touch display ensures a razor-sharp and detailed display of the signals.

  • 2 or 4 analog channels and 16 digital channels (option)
  • 70 to 300 MHz bandwidth (upgradable)
  • 1.25 GSa/s each channel (2.5 GSa/s interleaved)
  • 10 Mpts each channel (20 Mpts interleaved)
  • 160 Mpts segmented memory (option)

RTM3000

Compared to the already outstanding RTB2000, the RTM3000 offers a further improved input section with extremely low noise, a resolution of 500 uV/DIV, a four times greater memory depth, a complete spectrum analysis option, extensive math functions and the Rohde & Schwarz "Probe Interface".

  • 2 or 4 analog channels and 16 digital channels (option)
  • 100 MHz to 1 GHz bandwidth (upgradable)
  • 2.5 GSa/s each channel (5 GSa/s interleaved)
  • 40 Mpts each channel (80 Mpts interleaved)
  • 400 Mpts segmented memory (option)

RTA4000

The RTA4000 offers the maximum performance in all areas. The extremely low input noise, the time accuracy and the memory depth set standards.

  • 4 analog channel and 16 digital channel (option)
  • 200 MHz to 1 GHz bandwidth (upgradable)
  • 2.5 GSa/s each channel (5 GSa/s interleaved)
  • 100 Mpts each channel (200 Mpts interleaved)
  • 1000 Mpts segmented memory (option)

RTE1000

The RTE1000 offers the maximum performance in all areas. The extremely low input noise, the time accuracy and the memory depth set standards.

  • 2 or 4 analog channels and 16 digital channels (option)
  • 200 MHz to 2 GHz bandwidth (upgradable)
  • 2.5 GSa/s each channel (5 GSa/s interleaved)
  • 100 Mpts each channel (200 Mpts interleaved)
  • 1000 Mpts segmented memory (option)

MXO 4

Rohde & Schwarz presents the R&S®MXO 4 series, the first oscilloscope of the next generation. The R&S MXO 4 series includes four-channel models with bandwidths of 200 MHz, 350 MHz, 500 MHz, 1 GHz and 1.5 GHz.

Thanks to 12-bit A/D converters, the R&S MXO 4 series delivers 16 times the resolution of conventional 8-bit oscilloscopes and enables highly accurate measurements even at the highest sampling rates. With an acquisition memory of 400 Mpts per channel simultaneously for all four channels, the oscilloscope offers up to 100 times the memory depth of comparable devices as standard.

The R&S MXO 4 oscilloscopes offer the world's highest update rate of 4.5 million waveforms per second. This gives them a more comprehensive representation of signal behaviour than any other oscilloscope on the market.

  • 4 channel
  • 200 MHz - 1.5 GHz
  • 5 GSa/s
  • 12-bit A/D converters
  • 4.500.000 wfms/s
  • 400 Mpts (800 Mpts optional)
  • 13.3" touch-Display Full-HD (1920x1080 pixel)
  • 16 Kanal logic analyzer (optional)
  • 100 MHz waveform generator (optional)

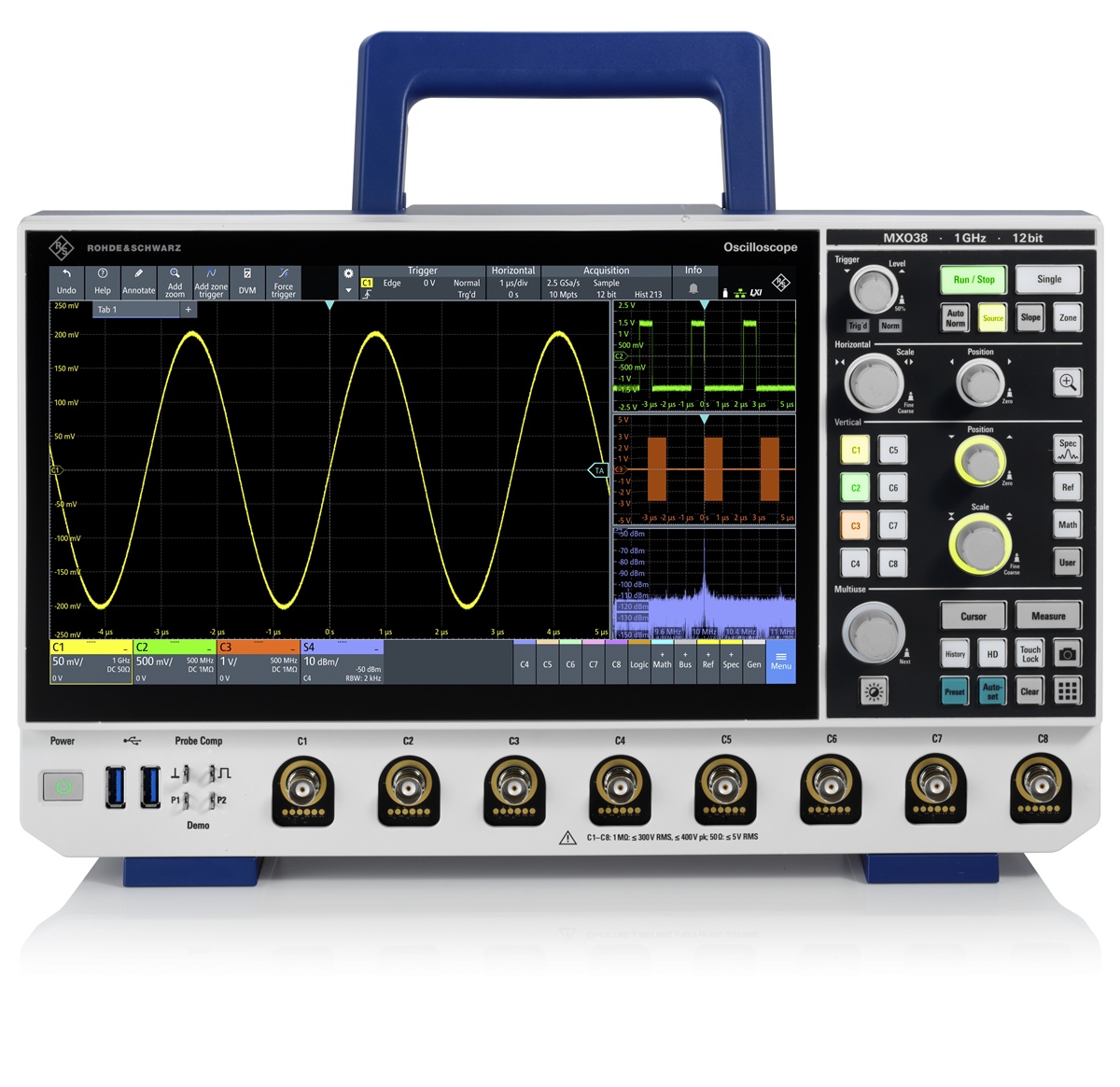

MXO 5

Rohde & Schwarz presents the R&S®MXO 5 series, the first oscilloscope of the next generation. The R&S MXO 5 series includes four-channel models with bandwidths of 350 MHz, 500 MHz, 1 GHz and 2 GHz and eight-channel models with bandwidths of 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz and 2 GHz.

Thanks to 12-bit A/D converters, the R&S MXO 4 series delivers 16 times the resolution of conventional 8-bit oscilloscopes and enables highly accurate measurements even at the highest sampling rates. With an acquisition memory of 500 Mpts per channel simultaneously for all four channels, the oscilloscope offers up to 100 times the memory depth of comparable devices as standard.

The R&S MXO 5 oscilloscopes offer the world's highest update rate of 4.5 million waveforms per second. This gives them a more comprehensive representation of signal behaviour than any other oscilloscope on the market.

  • 4 - 8 channel
  • 100 MHz - 2 GHz
  • 5 GSa/s
  • 12-bit A/D converters
  • 4.500.000 wfms/s
  • 500 Mpts (1 Gpts optional)
  • 15.6" touch-Display Full-HD (1920x1080 pixel)
  • 16 channel logic analyzer (optional)
  • 100 MHz waveform generator (optional)

Predecessor models

HMO1000

High sensitivity, multi-functionality and a good price - this is what characterizes the digital oscilloscopes of the R&S® HMO1002 and R&S® HMO1202 series.

  • 2 analog channel and 8 digital channel (option)
  • 50 to 300 MHz bandwidth
  • 1 to 2 GSa/s each channel
  • 2 Mpts each channel (4 Mpts interleaved)

The HMO1000 series has been replaced by the new RTC1000 series.

HMO3000

The 2- and 4-channel instruments provide bandwidths of 300, 400 and 500 MHz, a sampling rate of 4 GSa/s and a memory depth of 8 MPts. The instruments are rounded off with a standard inclusion of the MSO functionality and several options for serial bus analysis to meet all requirements of modern development designs.

  • 2 or 4 analog channel and 16 digital channel (option)
  • 300 to 500 MHz bandwidth
  • 2 GSa/s each channel (4 GSa/s interleaved)
  • 4 Mpts each channel (8 Mpts interleaved)

The HMO3000 series has been replaced by the new RTB2000 / RTM3000 series.

RTM2000

Ease of use combined with fast and reliable results is precisely what users get with the R&S®RTM bench oscilloscope. While other oscilloscopes are still booting up the R&S®RTM is already displaying signals, that would otherwise be lost in the noise, and evaluating results.

  • 2 or 4 analog channel and 16 digital channel (option)
  • 200 MHz to 1 GHz bandwidth
  • 2.5 GSa/s each channel (5 GSa/s interleaved)
  • 10 Mpts each channel (20 Mpts interleaved)

The RTM2000 series has been replaced by the new RTM3000 series.
