MHO3 Oscilloscopes

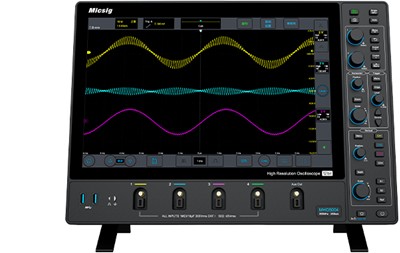

Series MHO3 Oscilloscope by Micsig

With the MHO 3 series, Micsig presents its first desktop oscilloscopes. Like the well-known tablet oscilloscopes, the MHO models have a powerful chip that runs the in-house Android version Sigtest.

The high-resolution models in the MHO 3 series have a bandwidth of 250, 350 or 500 MHz, a sampling rate of 3 GSa/s, 4 analogue channels, a 12-bit AD converter and a memory depth of 360 Mpts. The unusually flat housing of just under 3.6 cm for an oscilloscope saves space and enables a very low weight. The integrated 14" touchscreen with a resolution of 1920x1200 pixels enables detailed visualisation of the measurement curves.

The MHO 3 series features the original Mic-OPI™ probe interface, which automatically recognises probes and enables one-touch calibration. The devices also offer a variety of interfaces such as USB 3.0 host, USB Type-C, LAN, HDMI, trigger output, etc.

Thanks to the digital trigger system, trigger jitter is very low and triggering is very precise. In addition, the oscilloscope supports serial bus trigger and bus decoding of RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD1553B ex works.

  • 4 channels
  • 250 MHz - 500 MHz
  • 3 GSa/s
  • 12 bit AD converter
  • 230,000 wfms/s
  • 360 Mpts
  • 35.5 cm (14") touch-display (1920x1200 pixels)


Micsig MHO 3 Oscilloscopes

3 of 3 Article

Micsig MHO3-2504

High resolution 4-channel oscilloscope with 250 MHz bandwidth, 3 GSa/s sampling rate, 360 Mpts memory depth and 12-bit resolution; ultra-slim 3.58 cm housing supports wall/arm mounting; 14-inch 1920 x 1200 pixel touch screen for unrivalled waveform display. Serial decoders for CAN, CAN FD, LIN, SPI, I2C, UART, 1553B, 429 are already included!

Oszilloscope
Max. Capture Rate
230 kwfms/s
Analog Channels
4
Bandwidth
250 MHz
Samplerate
3 GSa/s
Memory
360 Mpts
A/D Converter
12 bit
Display Size
35.56 cm
Touch Control
Serial Protocols
ARINC 429
CAN
CAN FD
I²C
LIN
MIL-STD-1553
SPI
UART (RS232/422/485)
3 years warranty

No.: MHO 3-2504

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 2,299.-
net (VAT Details)
€ 2,735.81
incl. 19% VAT

Micsig MHO3-3504

High resolution 4-channel oscilloscope with 350 MHz bandwidth, 3 GSa/s sampling rate, 360 Mpts memory depth and 12-bit resolution; ultra-slim 3.58 cm housing supports wall/arm mounting; 14-inch 1920 x 1200 pixel touch screen for unrivalled waveform display. Serial decoders for CAN, CAN FD, LIN, SPI, I2C, UART, 1553B, 429 are already included!

Oszilloscope
Max. Capture Rate
230 kwfms/s
Analog Channels
4
Bandwidth
350 MHz
Samplerate
3 GSa/s
Memory
360 Mpts
A/D Converter
12 bit
Display Size
35.56 cm
Touch Control
Serial Protocols
ARINC 429
CAN
CAN FD
I²C
LIN
MIL-STD-1553
SPI
UART (RS232/422/485)
3 years warranty

No.: MHO 3-3504

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 2,799.-
net (VAT Details)
€ 3,330.81
incl. 19% VAT

Micsig MHO3-5004

High resolution 4-channel oscilloscope with 500 MHz bandwidth, 3 GSa/s sampling rate, 360 Mpts memory depth and 12-bit resolution; ultra-slim 3.58 cm housing supports wall/arm mounting; 14-inch 1920 x 1200 pixel touch screen for unrivalled waveform display. Serial decoders for CAN, CAN FD, LIN, SPI, I2C, UART, 1553B, 429 are already included!

Oszilloscope
Max. Capture Rate
230 kwfms/s
Analog Channels
4
Bandwidth
500 MHz
Samplerate
3 GSa/s
Memory
360 Mpts
A/D Converter
12 bit
Display Size
35.56 cm
Touch Control
Serial Protocols
ARINC 429
CAN
CAN FD
I²C
LIN
MIL-STD-1553
SPI
UART (RS232/422/485)
3 years warranty

No.: MHO 3-5004

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 3,299.-
net (VAT Details)
€ 3,925.81
incl. 19% VAT
