Discover the oscilloscopes from Micsig
Micsig's tablet oscilloscopes are professional oscilloscopes for the laboratory or field service. All series have an integrated touch screen and an improved hardware and software system with up to 4 channels, 100 MHz - 300 MHz bandwidth, a maximum sampling rate of 1 GSa/s - 2 GSa/s and a memory depth of up to 220 Mpts.
Current models
VTO
The VTO2004 is a portable oscilloscope for Android with a built-in battery.
- 4 channels
- 200 MHz bandwidth
- 1 GSa/s sampling rate
- Up to 50 Mpts memory depth
- User-friendly UI design
- Wide range of measurement options
VATO
Automotive oscilloscope VATO series for Android with a built-in battery.
- 4 channels
- 200 MHz bandwidth
- 1 GSa/s sampling rate
- 50 Mpts memory depth
- User-friendly UI design
- Wide range of measurement options

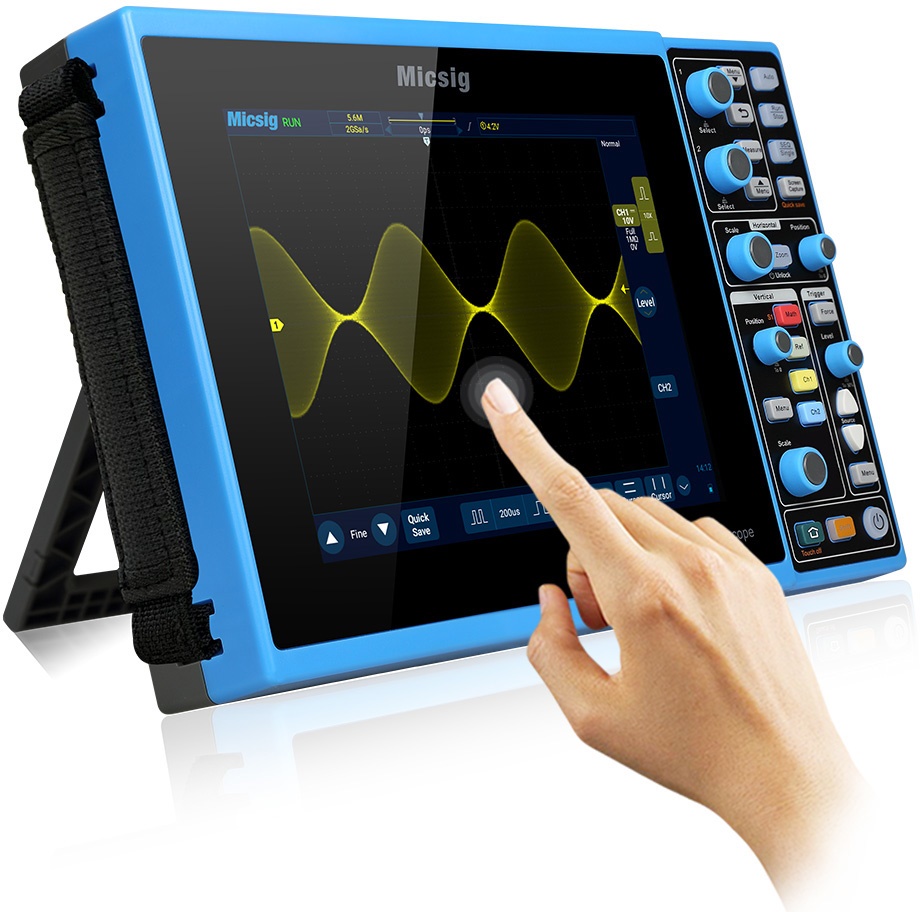

STO1004/2002
Micsig Tablet Oscilloscope Smart series STO1000 adopts the newest integrated touch screen technology and newly upgraded hardware and software system, it features 4 analog channels, available with 100MHz bandwidth, single channel has maximum 1 GSa/s sampling rate and 70 Mpts of memory depth, waveform capture rate up to 130,000 wfms/s.
The SATO series is Micsig's new generation of automotive tablet oscilloscopes. Compared to the previous series, they offer an integrated touch screen and an improved hardware and software system.
- 2 or 4 channels
- 100 or 200 MHz bandwith
- 1 GSa/s sample rate
- 70 Mpts memory
- 8" TFT-LCD, 800*600 pixels
- UART, CAN, LIN, SPI and I2C decoding standard
- Supported tests (SATO only): Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests
SATO1004/1002
Automotive oscilloscope SATO series
- 2 or 4 channels
- 100 or 200 MHz bandwidth
- 1 GSa/s sampling rate
- 70 Mpts memory depth
- 8" , 800*600 display
TO1004/2002/2004/3002/3004
The TO-Series tablet oscilloscopes are available with 2 or 4 analogue channels, offer 100-300 MHz bandwidth, 1-2 GSa/s sampling rate and up to 220 Mpts memory depth. They run Micsig's latest SigtestUITM multitasking system, delivering long-term stable and smooth performance.
- 2 or 4 channels
- 100, 200 and 300 MHz bandwidth
- 1 or 2 GSa/s sampling rate
- 110 or 220 Mpts memory
- 25.7 cm (10.1") TFT LCD 1280 * 800 pixels
- RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C Decoding standard
- Trigger types: Edge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, Video
ATO1004/2002/2004/3002/3004
This model range is intended for use in the automotive sector. The ATO-Series tablet oscilloscopes are available with 2 or 4 analogue channels, offer 100-300 MHz bandwidth, 1-2 GSa/s sampling rate and up to 220 Mpts memory depth. They run Micsig's latest SigtestUITM multitasking system, delivering long-term stable and smooth performance.
- 2 or 4 channels
- 100, 200 and 300 MHz bandwidth
- 1 or 2 GSa/s sampling rate
- 110 or 220 Mpts memory
- 25.7 cm (10.1") TFT LCD 1280 * 800 pixels
- RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C Decoding standard
- Supported tests: Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests
ETO
Equipped with dedicated SigtestUI™ multitasking system, the ETO series is very smooth to operate. Soft rubber protected slim body, with a 14-inch integrated touch screen and highest resolution of 1920 x 1200 pixels, brings ultra-clear waveform display you might never experienced.
- 4 channels
- 500 MHz bandwidth
- 3 GSa/s sampling rate
- 360 Mpts memory depth
- 14", 1920*1200 display
MDO
MDO series oscilloscopes
- 4 channels
- 250 / 350 / 500 MHz Bandwidth
- 3 GSa/s sampling rate
- 360 Mpts memory depth
- 14", 1920*1200 display
MHO 3
High resolution oscilloscopes, MHO 3 series
- 4 channels
- 12 bits
- 250 / 350 / 500 MHz bandwidth
- 3 GSa/s sampling rate
- 360 Mpts memory depth
- 14", 1920x1200 display
