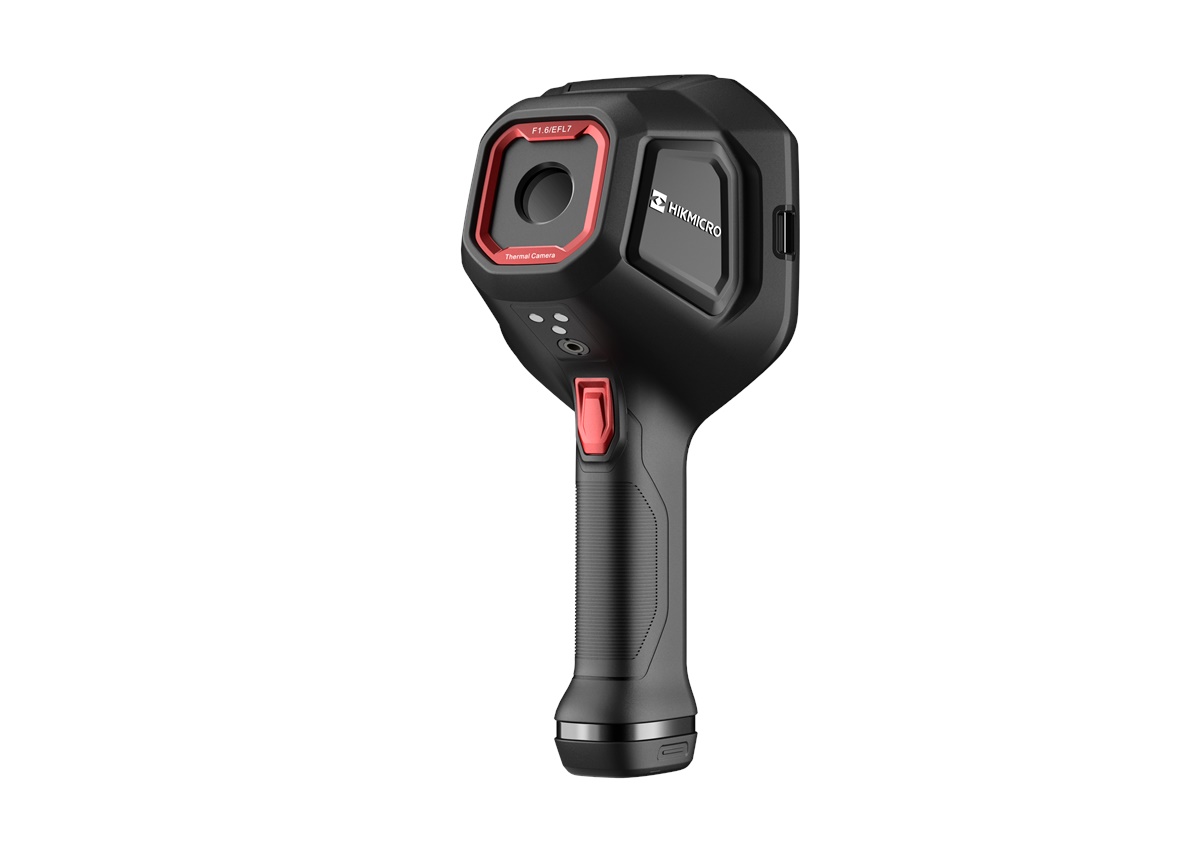

The HIKMICRO FT31 is a robust, hi-performance thermal imaging camera designed for firefighters to work in complete darkness and smoke. It helps to save lives, protect property and ensure the safety of firefighters.
- Thermal imaging mode is available for visualisation.
- It detects temperature changes and measures in real time for the central, hot and cold spot respectively and can use 8 different colour palettes for optimal display.
- The 16 GB internal memory offers space for approx. 100,000 images for live viewing and recording.
- Can be installed on a tripod using a standard thread.
| Specification | HIKMICRO FT31 |
|---|---|
| IR Resolution | 384 x 288 (110,592 pixels) |
| Display | 800 × 480 Resolution, 4.3" LCD Screen |
| Field of view (FOV) | 54.1° × 40.2° |
| Object Temperature Range | -20 to 1,200 °C |
| NETD | < 30 mK (@ 25°C, F#=1.0) |
| Image Frequency | 60 Hz |
| Accuracy | ±2 °C / ±2 % |
| Interface | Type-C USB |
| Focus mode | Focus free |
| Min. focus distance | 1 m |
| Focal length | 7 mm |
| Drop Test Height | 2 m |
| Protection level | IP67 |
| Power | 2x Interchangeable and rechargeable Li-ion battery for approx. 6 h operation with each |
For emergency services
Hi performance thermal imaging camera for observations in complete darkness and smoke.

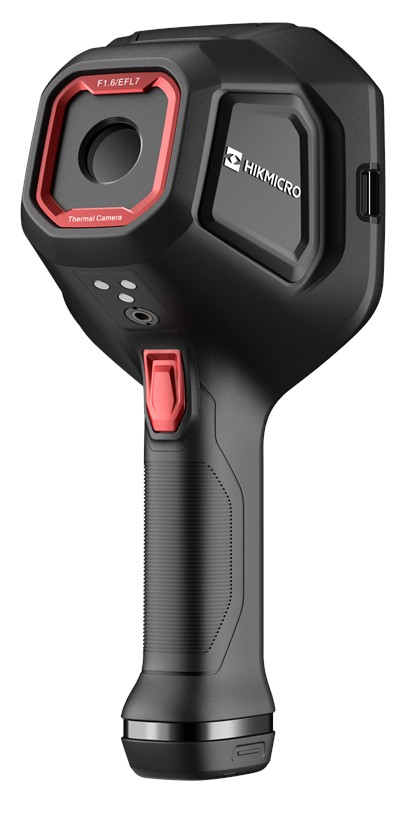

Lens
With its lens, the HIKMICRO FT31 offers a field of view of 54,1° × 40,2° and is ideal for scanning larger areas in order to detect dangerous zones.
Smooth display with 60 Hz
The very high frame rate of 60 Hz ensures that thermal video recordings are smooth and jerk-free and that no detail is lost in the recording.
High Image Quality
Features a high Resolution (384 x 288 110,592 pixels) and highly sensitive (NETD < 35 mK) VOx IR detector to provide super clear thermal images.
4 Images Mode
The built-in IR lens provides you with improved details in thermal imaging mode.
8 colour palettes for every application scenario
- For situations with higher background background temperatures where open flames are present, especially for buildings on fire
- For use at lower temperatures, e.g. initial rescue measures after traffic accidents, search in forested areas, etc.
Robust and durable design
Protection class IP67 for protection against water and dust. With 2 m fall protection, suitable for harsh environments.

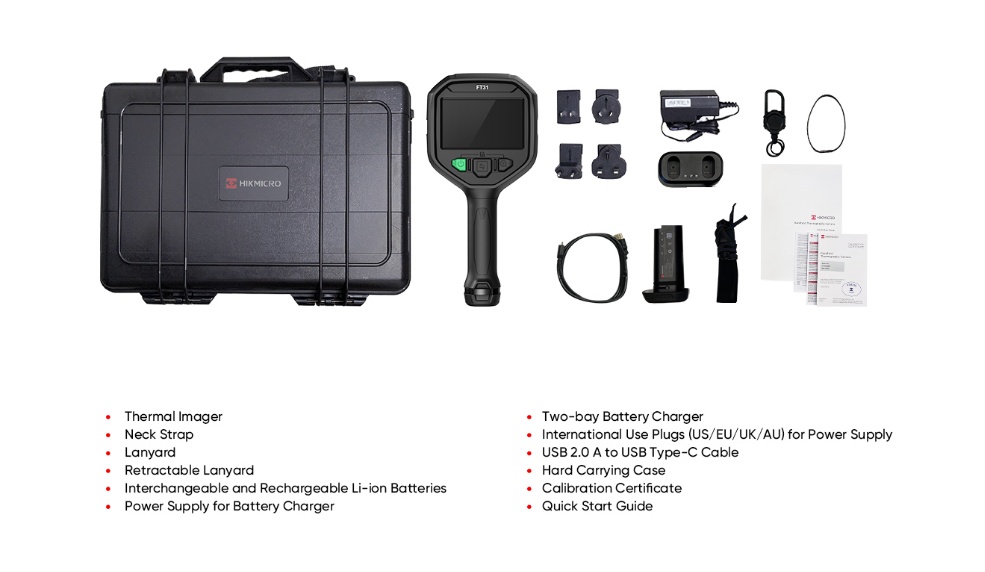

Full kit
Complete set in a sturdy carrying case
Downloads
Product information
HIKMICRO FT31 flyer En
Language: English
File Size: 1.87 MiB
Release Date: 06.06.2024
HIKMICRO FT31 flyer Ger
Language: German
File Size: 1.38 MiB
Release Date: 15.12.2023
Flyer for the HIKMICRO FT31 in German
Datasheet
HIKMICRO FT31 data sheet
Language: English
Version: V5
File Size: 773.93 KiB
Release Date: 09.01.2025
Data sheet for the HIKMICRO FT31
Manual
HIKMICRO FT31 quick start guide
Language: German, English, Chinese, Spain, French, Italian, Portuguese
Version: UD34048B-A
File Size: 8.21 MiB
Release Date: 19.12.2024
HIKMICRO FT31 User manual
Language: German
Version: V5.5.73de
File Size: 3.36 MiB
Release Date: 11.06.2024
HIKMICRO FT31 User manual
Language: English
Version: V5.5.73
File Size: 3.09 MiB
Release Date: 22.05.2024
HIKMICRO FT31 Manuel d'utilisation
Language: French
Version: V5.5.73fr
File Size: 3.36 MiB
Release Date: 11.06.2024
HIKMICRO FT31 Manual de usuario
Language: Spain
Version: V5.5.73es
File Size: 3.21 MiB
Release Date: 11.06.2024
HIKMICRO FT31 Manuale dell'utente
Language: Italian
Version: V5.5.73it
File Size: 3.31 MiB
Release Date: 11.06.2024
HIKMICRO FT31 Kullanım Kılavuzu
Version: V5.5.73tr
File Size: 3.17 MiB
Release Date: 11.06.2024
Firmware
HIKMICRO FT31 firmware
Language: English
Version: V5.5.73
File Size: 135.47 MiB
Release Date: 07.05.2024
O/S: Android , iOS , Windows 11 (64/32 Bit), 10 (64/32 Bit)
