Sensepeek SQG Probes


The Sensepeek SQG series: perfect for testing and measuring

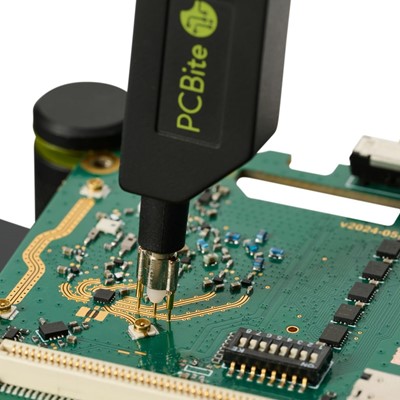

A free hand is often required for measurements and tests. The Swedish company Sensepeek has developed flexible and user-friendly solutions of outstanding quality for hands-free measurements for many years. The SQG series is manufacturer- and device-independent and can be used with various instruments such as oscilloscopes, spectrum analyzers, vector network analyzers and more RF measurement instruments. A new feature are the double ground tips, which are perfect for use with PCB-mounted RF connectors.


The SQG series comprises hands-free high-frequency probes for AC and DC applications with frequencies up to 6 GHz.

Compared to conventional probes, the SQG series probes from Sensepeek offer several important advantages:

  • Hands-free operation allows you to perform high-frequency measurements without having to hold the probe at all times, which increases significantly improves reproducibility, accuracy and efficiency and avoids complex setups or soldering operations on the DUT.
  • The low capacitance at the probe tip minimises capacitive loading and signal distortion on sensitive circuits.
  • The very flat frequency response (+/- 0.5 dB) enables accurate measurements over a wide frequency range.
  • Whether for oscilloscopes, network analysers or other measuring instruments - the SQG series is flexible and can be used with various instruments.

With these features, the new SQG series probes are a significant improvement for engineers and technicians who need to make highly accurate and reliable measurements.



Sensepeek PCBite probes, SQG series

6 of 6 Article

Sensepeek 7008 SQG15-AC Probe

Passive 1.5 GHz probe, AC-coupled, low impedance (500 Ω) with BNC connection The SQG probes enable hands-free high-frequency measurements without soldering and impress with their flat frequency response, low input capacitance and minimal signal distortion.

Attenuation 10:1
Input Impedance 500 Ω / 0,35 pF
Bandwidth 1,5 GHz
Rise Time < 190 ps
Cable Length 1,2 m
Connection BNC
1 year warranty

No.: 7008
EAN: 7350145660465

in Stock
€ 169.-
net (VAT Details)
€ 201.11
incl. 19% VAT

Sensepeek 7009 SQG15-DC Probe

Passive 1.5 GHz probe, DC-coupled, low impedance (500 Ω) with BNC connection The SQG probes enable hands-free high-frequency measurements without soldering and impress with their flat frequency response, low input capacitance and minimal signal distortion.

Attenuation 10:1
Input Impedance 500 Ω / 0.35 pF
Bandwidth 1.5 GHz
Rise Time < 190 ps
Cable Length 1.2 m
Connection BNC
1 year warranty

No.: 7009
EAN: 7350145660472

in Stock
€ 169.-
net (VAT Details)
€ 201.11
incl. 19% VAT

Sensepeek 7010 SQG30-AC Probe

Passive 3 GHz probe, AC-coupled, low impedance (500 Ω) with SMA connection The SQG probes enable hands-free high-frequency measurements without soldering and impress with their flat frequency response, low input capacitance and minimal signal distortion.

Attenuation 10:1
Input Impedance 500 Ω / 0.35 pF
Bandwidth 3 GHz
Rise Time < 103 ps
Cable Length 1.2 m
Connection SMA
1 year warranty

No.: 7010
EAN: 7350145660489

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 249.-
net (VAT Details)
€ 296.31
incl. 19% VAT

Sensepeek 7011 SQG30-DC Probe

Passive 3 GHz probe, DC-coupled, low impedance (500 Ω) with SMA connection The SQG probes enable hands-free high-frequency measurements without soldering and impress with their flat frequency response, low input capacitance and minimal signal distortion.

Attenuation 10:1
Input Impedance 500 Ω / 0.35 pF
Bandwidth 3 GHz
Rise Time < 103 ps
Cable Length 1.2 m
Connection SMA
1 year warranty

No.: 7011
EAN: 7350145660496

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 249.-
net (VAT Details)
€ 296.31
incl. 19% VAT

Sensepeek 7012 SQG60-AC Probe

Passive 6 GHz probe, AC-coupled, low impedance (333 Ω) with SMA connection The SQG probes enable hands-free high-frequency measurements without soldering and impress with their flat frequency response, low input capacitance and minimal signal distortion.

Attenuation 10:1
Input Impedance 333 Ω / 0.35 pF
Bandwidth 6 GHz
Rise Time < 52 ps
Cable Length 1.2 m
Connection SMA
1 year warranty

No.: 7012
EAN: 7350145660502

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 349.-
net (VAT Details)
€ 415.31
incl. 19% VAT

Sensepeek 7013 SQG60-DC Probe

Passive 6 GHz probe, DC-coupled, low impedance (333 Ω) with SMA connection The SQG probes enable hands-free high-frequency measurements without soldering and impress with their flat frequency response, low input capacitance and minimal signal distortion.

Attenuation 10:1
Input Impedance 333 Ω / 0.35 pF
Bandwidth 6 GHz
Rise Time < 52 ps
Cable Length 1.2 m
Connection SMA
1 year warranty

No.: 7013
EAN: 7350145660519

with FREE shipping within the EU! Shipping costs outside EU
in Stock
€ 349.-
net (VAT Details)
€ 415.31
incl. 19% VAT
