Siglent SDG1000X Plus Waveform Generators

Modellübersicht	SDG1032X Plus	SDG1062X Plus
Max. Frequenz	30 MHz	60 MHz
Vertikale Auflösung	16 Bits	16 Bits
Abtastrate	1 GSa	1 GSa
Max. Amplitude	± 10 V	± 10 V
Frequenzzähler	bis zu 200 MHz	bis zu 200 MHz
Kanäle	2	2

Alle technischen Daten finden Sie im Datenblatt

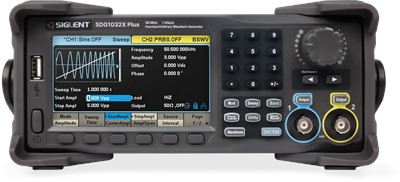

Picture:

SIGLENT’s SDG1000X Plus series dual-channel function/arbitrary waveform generator, with a maximum bandwidth of 60MHz, has excellent sampling system indicators of 1GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, the innovative TrueArb and EasyPulse technologies are used to overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses. It can provide users with high-fidelity, low- jitter signals. In addition, SDG1000X Plus also provides PRBS pattern generation, sequence wave output, and dual pulse output functions to meet a wider range of application needs.

2 channels
60 MHz max. frequency
1 GSa/s sample rate
16 bits vertical resolution
up to 200 MHz frequency counter

Siglent SDG1000X Plus Waveform Generators

2 of 2 Article

Sorting

Siglent SDG1032X Plus — Be the first to write a review
2 channel function / arbitrary waveform generator with 1 μHz to 30 MHz bandwidth, 1 GSa/s samplerate, 16 Bit resolution, 8 Mpts memory depth, amplitude range 2 mVpp to 10 Vpp (high impedance), 10.9 cm (4.3”) display.
Waveform Generator
Channels
2
Max. Frequency
30 MHz
Max. Freq. (Rectangle)
30 MHz
Samplerate
1 GSa/s
Memory
8 Mpts
LAN Interface
USB Host & Device

Siglent SDG1032X Plus — Be the first to write a review
2 channel function / arbitrary waveform generator with 1 μHz to 30 MHz bandwidth, 1 GSa/s samplerate, 16 Bit resolution, 8 Mpts memory depth, amplitude range 2 mVpp to 10 Vpp (high impedance), 10.9 cm (4.3”) display.
Waveform Generator
Channels
2
Max. Frequency
30 MHz
Max. Freq. (Rectangle)
30 MHz
Samplerate
1 GSa/s
Memory
8 Mpts
LAN Interface
USB Host & Device

Siglent SDG1062X Plus — Be the first to write a review
2 channel function / arbitrary waveform generator with 1 μHz to 60 MHz bandwidth, 1 GSa/s samplerate, 16 Bit resolution, 8 Mpts memory depth, amplitude range 2 mVpp to 10 Vpp (high impedance), 10.9 cm (4.3”) display.
Waveform Generator
Channels
2
Max. Frequency
60 MHz
Max. Freq. (Rectangle)
60 MHz
Samplerate
1 GSa/s
Memory
8 Mpts
LAN Interface
USB Host & Device

Siglent SDG1062X Plus — Be the first to write a review
2 channel function / arbitrary waveform generator with 1 μHz to 60 MHz bandwidth, 1 GSa/s samplerate, 16 Bit resolution, 8 Mpts memory depth, amplitude range 2 mVpp to 10 Vpp (high impedance), 10.9 cm (4.3”) display.
Waveform Generator
Channels
2
Max. Frequency
60 MHz
Max. Freq. (Rectangle)
60 MHz
Samplerate
1 GSa/s
Memory
8 Mpts
LAN Interface
USB Host & Device
