When developing the Magnova, we deliberately broke new ground. It is not just another oscilloscope - every detail has been rethought from the ground up to fulfil the highest demands.
Unique
The innovative Flex-Encoder® operating concept revolutionises control: the rotary encoders adapt dynamically to your tasks and enable intuitive operation of a wide range of parameters. The steplessly tiltable metal housing offers maximum flexibility, while the laterally positioned connections ensure optimum cable routing and keep your workplace tidy.
Precise
With 12-bit AD converters and a particularly low-noise front end, the Magnova sets new standards in signal processing. The 15.6’ touch monitor in full HD resolution and digital triggering guarantee maximum precision and clarity - perfection for your workplace.
Fast
The Magnova impresses with its impressive speed: it responds immediately and smoothly, even with demanding analysis functions. With the display of 300,000 measurement curves per second (up to 12 million wfms/s in history mode) and a trigger-rearm time of less than 70 ns, it offers lightning-fast data processing.
Silent
Thanks to an innovative heat dissipation system, in which the largest heat sources are thermally connected directly to the metal housing, the Magnova remains silent at room temperatures of up to 35 °C. The fan remains off and you can concentrate on your work undisturbed.
Reliable
The Magnova is developed and manufactured in Germany - with a clear focus on durability and reliability. Thanks to the use of high-quality components and first-class workmanship, we offer you a 5-year guarantee - because quality knows no compromise.
| Features | Magnova BMO |
|---|---|
| Channels | 4 |
| Bandwidth | 100 MHz - 350 MHz |
| Sample rate | 1.6 GSa/s when using channel 1 and/or 2 1.0 GSa/s with additional use of channel 3 and/or 4 |
| Waveform capture rate | 300,000 wfms/s (12,000,000 wfms/s History Mode) |
| Memory depth | Single-channel mode: 320 Mpts Dual-channel mode: 160 Mpts Four-channel mode: 80 Mpts |
| Integrated decoders | I²C, SPI, UART, CAN, CAN-FD, LIN and Parallel |
You will find the specifications of the Magnova here.
| Magnova BMO | Bandwidth | Channel | Logic Analyzer | Waveform generator |
|---|---|---|---|---|
| BMO100 | 100 MHz (upgradable to 350 MHz) | 4 | Option | Option |
| BMO200 | 200 MHz (upgradable to 350 MHz) | 4 | Option | Option |
| BMO350 / BMO350-NC | 350 MHz | 4 | Option | Option |
The Magnova NC version is intended for private and educational purposes. It offers the full range of functions of the commercial version, However, commercial use is excluded.
Unique Concept
With the Flex-Encoder® concept, the four rotary encoders adapt to the currently used function, allowing a wide range of parameters to be conveniently set in all areas. The current parameters and other functions are always shown next to the rotary encoders on the display.
As well as setting the signal position and scaling, the rotary encoders can be used to control the zoom factor and position in the zoom view, for example, and to set the offset, scale, centre and span in the FFT display. For the generator, these are the amplitude, offset, frequency and other parameters of the generated signal. Whatever you want to do, the four rotary encoders provide the perfect setting options.
Silent operation - enjoy the silence
The passive cooling concept ensures that you no longer have to be disturbed by fan noise. With the Magnova, the largest heatsources processor, FPGA, RAM) are thermally connected directly to the metal case. This means that most of the heat is dissipated directly outside the case. Therefore a fan is unnecessary in normal operation and the Magnova can run silently.

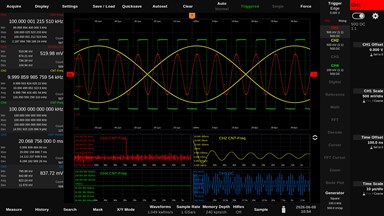

Damn Good Software
Extensive measurement functions with trend charts, powerful history, signal analysis, search and mask test functions, X/Y mode, reference- and maths channels with freely definable formulas, simultaneous signal decoders, FFT spectra with waterfall display and markers, vertical and horizontal zoom function, Bode plots, display with persistence, adjustable colour grading and much more.
The Magnova software comes with a comprehensive set of feature set already included in the price of the instrument.
12-bit ADC with 16-bit Architecture and a low-noise front end
The Magnova’s frontend sets new standards in signal quality: multiple metal shielding layers and other sophisticated measures minimize noise to an absolute minimum. High-quality 12-bit ADCs from Texas Instruments ensure precise signal digitization. With powerful filters as well as HiRes and averaging functions, the 16-bit system architecture makes even the finest details visible.
The screenshot shows a 100x vertical zoom on the only 12 mVpp large sinusoidal 100 MHz noise interference on a square wave signal (1 MHz). Thanks to the 16-bit system architecture and the powerful zoom function, the signal and the noise, which is a hundred times smaller, can be measured and displayed in detail.
Brilliant Display
The crystal-clear 15.6” Full HD touchscreen display will always deliver the best view of the signals.
The large screen diagonal and crisp resolution of 1920 x 1080 pixels will impress you. Whether you’re viewing multiplechannels simultaneously, analysing complex signals, or simply wanting to see everything at a glance, this display leaves nothing to be desired.
In addition, we have applied full liquid bonding to the display, where the touch module and the glass front are fully bonded with a liquid. This makes the image crystal clear and reduces reflections.
The Full HD resolution is also a great advantage for external displays. Large external screens or projectors can also be used for meetings, training and presentations.
Awesome Digital Triggering
Experience new possibilities with Magnova’s fully digital triggering!
Most current oscilloscopes use a separate analogue trigger path, where the signal is separated from the measurement path, processed separately, and then digitised in a trigger circuit.
With the Magnova, triggering is fully digital, directly on the measurement data. This allows triggering on the smallest signal details with adjustable hysteresis, ensuring absolute reliability and the highest precision. This level of performance is usually only found in the high-end models of selected manufacturers.
Powerful FFT
Analyse noise, find the cause, check signal quality and more.
The FFT is one of the most important analysis tools of an oscilloscope. With up to up to 4 simultaneously running FFT channels, each with up to 8 million data points and many functions, the Magnova places a strong emphasis on a particularly powerful FFT.
Averaging, Min and Max Hold, Peak Tables, Waterfall Display, various window functions, FFT cursors, and functions, FFT cursors and even spectrum analyser-style markers. There is hardly a wish that will remain unfulfilled. If you come up with one, we will be happy to include it in an update.
For the screenshot, a BicoLog antenna without amplifier was connected directly to the input of the Magnova. At the top you can see the signal in the time domain, at the bottom the amplitudes in the frequency range LF to 800 MHz with spectrum, average and max hold display and in the centre the time progression of the spectrum in a waterfall display. Some peaks and marker values are shown in tabular form on the left.
Stepless tilt - always the ideal viewing angle
Whether you are sitting close to the Magnova, a little further away, it is placed on a shelf or you are standing in front of it: The tilt is infinitely variably adjustable from 80° to 170°, always giving you the perfect view of the display. You can also mount the Magnova on a VESA monitor arm and let it hover above your desk.
Side ports - simply more convenient
On many desks, the circuit to be measured is placed directly in front of the oscilloscope and the probe leads running in between can be inconvenient. Thanks to the special design of the Magnova, the ports are at the side providing better cable management.
Quality You Can Rely On
You get a full 5-year warranty and our commitment to support you.
The design and manufacture of the Magnova takes place at our HQ in Preetz, a small town in Germany north of Hamburg. The case is manufactured by a renowned metalworking company near Stuttgart, while the PCB assembly is done in Magdeburg.
Only high-quality components are used to produce the Magnova. These include ELMA rotary encoders, rotary knobs with metal collets from Switzerland and micro switches from Denmark.
We’ve been producing programmers for over 20 years, but we acknowledge to be newcomers in measurement technology. The Magnova has been designed with a focus on an exceptionally long lifespan, and we stand by it with a 5-year warranty.
BMO-AWG Generator (optional)
The Magnova can be expanded at any time with an optional function generator.
The optional function generator module offers 14 bit resolution and a sampling rate of up to 400 MSa/s for any signal waveform from 1 µHz to 90 MHz. It is a full-featured generator with an amplitude range of up to 20 Vpp (up to 10 Vpp with 50 ohm termination). In addition to various standard and test signals of any form, the generator also supports AM/FM and other modulations as well as sweep and burst signals, noise addition, and many other features.
The function generator module can be purchased and installed on the backside of the Magnova at any time, even after purchase.
BMO-MSO Logic probe (optional)
Up to two logic analyzer modules can be connected to the Magnova for a total of 16 digital channels. The sampling rate is up to 1600 MSa/s and the threshold voltage is adjustable from -8 V to +8 V. The modules are automatically recognised on connection and no software licences or similar are required.
Batronix BMO-FS Foot Switch (optional)
With the Batronix BMO-FS footswitch, you solve the classic problem of needing a "third hand" when measuring: While using both hands to hold the probes, you can conveniently set the oscilloscope to run or stop or make a single recording. The BMO-FS footswitch makes operating the oscilloscope easier and increases efficiency during measurements.
High-quality and durable construction made of fiberglass-reinforced plastic, designed for at least 1 million actuations, and with a 3-year warranty.
BMO-CASE carrying case (optional)
The rugged transport case provides reliable protection for your Magnova oscilloscope against water, dust, and impacts. It is certified to IP67, STANAG 4280, MIL-STD 810, and ATA 300, meeting the highest safety standards. The case offers secure storage for the oscilloscope, probes, power cable, and optional accessories (BMO-MSO, BMO-AWG, BMO-FS). An automatic pressure equalization valve ensures it is also suitable for air travel.
BMO-RACK 19" Mounting Kit (optional)
The Magnova 19" rack mounting kit provides a flexible solution for integrating oscilloscopes into a 19" rack. The support arm features three joints, allowing for swiveling, tilting and extending the device.
- Mounting height: 4 U (6 U including Magnova)
- VESA 75 and 100
- Arm length: 320 mm
- Maximum load capacity: 10 kg
- Dimensions (L x W x H): approx. 482.6 x 142 x 179 mm
Here you will find the videos we have already published on the Batronix Magnova oscilloscope. They show various functions of the Magnova – from FFT and decoding to generator functions and Bode plot measurements.
Most of the videos were recorded directly via the Magnova's DisplayPort output using video capture. They show the behavior and display that can also be seen on the device's screen. In the videos, we use a mouse for operation so that a clearly visible mouse pointer is available. Operation via the Magnova's touch display works in much the same way.
The most recent videos are at the top of the list and show the latest enhancements from the latest firmware updates.
Magnova Update 1.7.1 from December 16, 2025
This video shows some of the new features introduced with firmware update 1.7.1:
- Protocol decoder tables in detailed and compact display
- Roll mode with automatic measurements
- Annotations, measurement windows, and trend charts in roll mode
- Internal triggering on signals from the built-in generator (signal, burst, sweep, modulations)
Magnova Update 1.6.9 from October 24, 2025
This video shows some of the new features introduced with firmware update 1.6.9:
- Arbitrary waveforms from the generator
- Waveform editor
- Generator modulations and noise
- FFT with linear and logarithmic frequency axes
- Bode plot with automatic measurements of gain and phase margin, cutoff frequencies, and bandwidth
Batronix BMO-AWG Magnova Generator
Introductory video for the launch of the generator module:
- Basic generator functions (now significantly expanded, see the update video 1.6.9 above)
- Bode plot functionality
XY Oscilloscope Music on Batronix Magnova
An entertaining example of the Magnova's XY mode – and at the same time a good impression of the system's performance:
- XY oscilloscope music
- Time display and FFT running parallel to the XY display
- Very smooth and precise XY display (even possible in roll mode with the Magnova)
Batronix Magnova – Unique, precise, fast, silent
General overview of the device and its functions during introduction:
- Exterior view and design
- Overall overview of operating concept and functions
- Automatic measurements, annotations, and trend charts
- Protocol decoding
- History mode
- FFT and waterfall display
- XY mode
