This complete kit includes everything you need for hands-free measurements with your oscilloscope.
The new SQ series of handsfree probes from Sensepeek have a lower point of gravity making them even more stable compared with the original SP series of handsfree probes. All probes in the SQ series are also insulated and can be used handheld as any traditional probe but their full potential is used when measuring handsfree.
No more soldering wires to connect your probe or complicated tools to setup, just positioning the probe needle on any test point or component in the signal path and release. Saves time and frustration during development, verification and repairs.
The minimalist design and the spring loaded test needle makes it possible to simultaneously measure on fine pitch components and nearby signals.
The ground probe connection has a detachable quality hook and the cable fits directly on a 2.54mm (0.100”) pitch pin header. If you need a even more flexible and handsfree ground(or other reference) connection then our passive 1:1 readout probe SQ10(sold separately) is a great companion. Just connect the included short wire between the SQ500 and SQ10 pinheaders!
The SQ500 comes with a powerful magnet in the base, as for all PCBite probes and holders which makes the probe easy to place and reposition. SQ200/SQ350/SQ500 probes are also sold separately if you have more channels on your oscilloscope.
PCBite the solution for soldering, inspection and handsfree measurements
PCBite is a complete line of products handling your circuit board during the development phase. Powerful magnets together with a stainless base plate makes the system flexible, mobile and user friendly.
Forget about the old stationary circuit board holders placed deep inside the company lab, we have developed a mobile and user friendly solution made for a fast phase development environment. Let your circuit board travel safety on board our PCBite thru the development and save a lot of time and hassle.
PCBite PCB holders
The holder can easily be repositioned to handle circuit boards of varying shape and sizes.

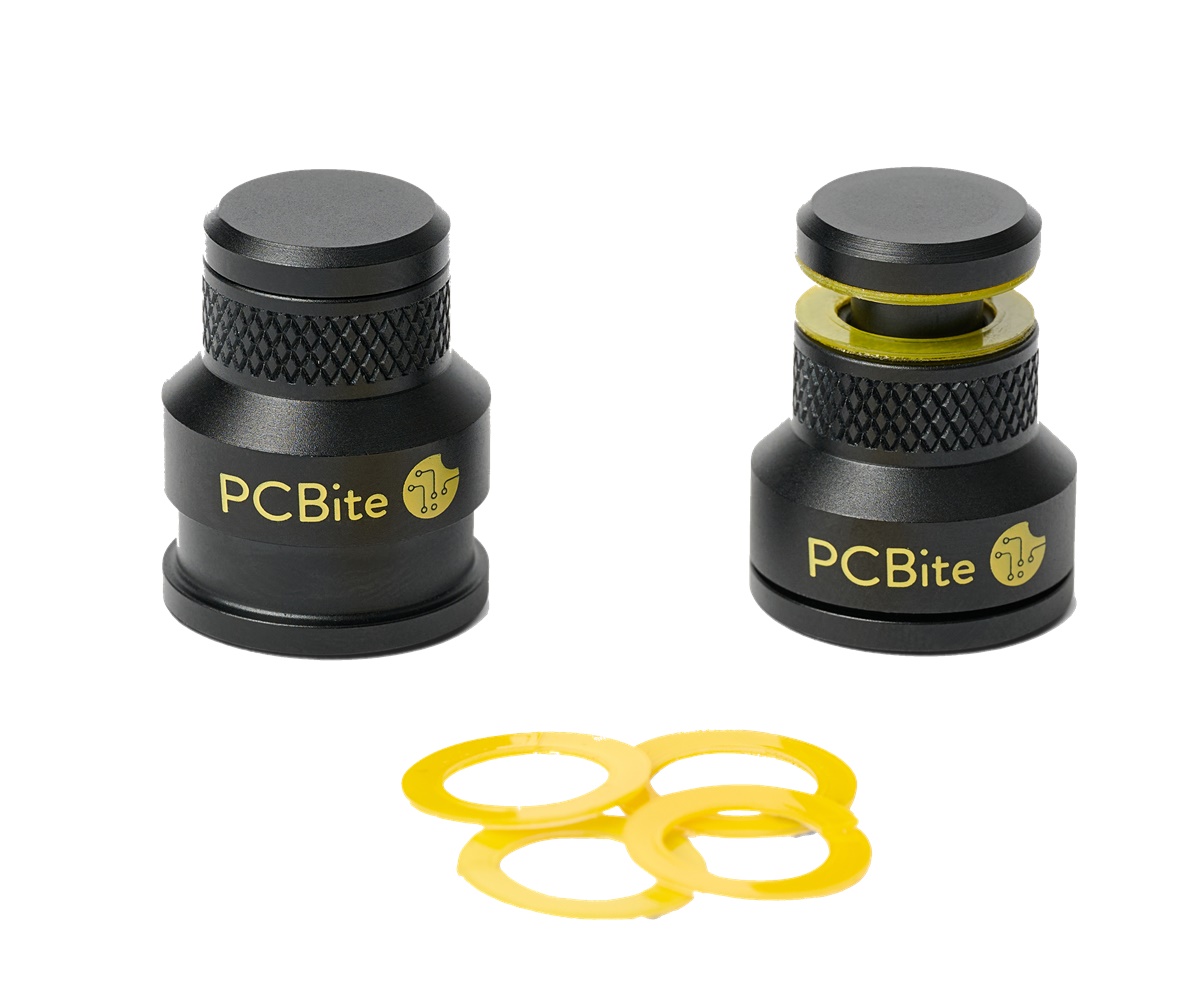

The holders are CNC machined from 6061 grade aluminium then sandblasted and finally anodized black matte to get that perfect look and feel. At the bottom of each holder is a strong magnet perfectly balanced in strength. A low friction bottom cap protects the magnet and makes the PCBite holder easy to slide. The “jaw” can open wide and a stainless spring ensures a really strong locking force. Every holder comes with yellow insulation washers which protects your circuit board. The washers also allows you to power up your creation safely.
The probes
The probes are steady but yet flexible made for instant measurements or total hands-free operations together with your prefered measurement tools such as a multimeter, logic analyzer, debugger/programmer, MSO(mixed signal oscilloscope) or oscilloscope.
The probes
The probe has a flexible metal arm and a powerful magnet in the base for easy positioning. The one of the kind "lift and drop" function takes away the need for annoying and complicated set screws.
The probes
The weight of the head makes the compressible needle maintain constant pressure at the probing point so even if the board is bumped into the probe tip will always stay in position.
The measuring tip comes with a M4 thread interface for several mounting options.
The base plate
The base plate is made of stainless steel and comes in two sizes, small (DIN A5) and large (DIN A4). One side of the plate is matte and the other mirror polished. The mirror polished surface makes it easy to see components on the circuit board underside. Every base plate comes with a microfiber cloth to keep it nice and shiny.Downloads
Manual
SQXX0 Manual
Language: English
Version: Rev1.5
File Size: 2.53 MiB
Release Date: 05.04.2025
User guide for probes SQ100 / SQ200 / SQ350 / SQ500
