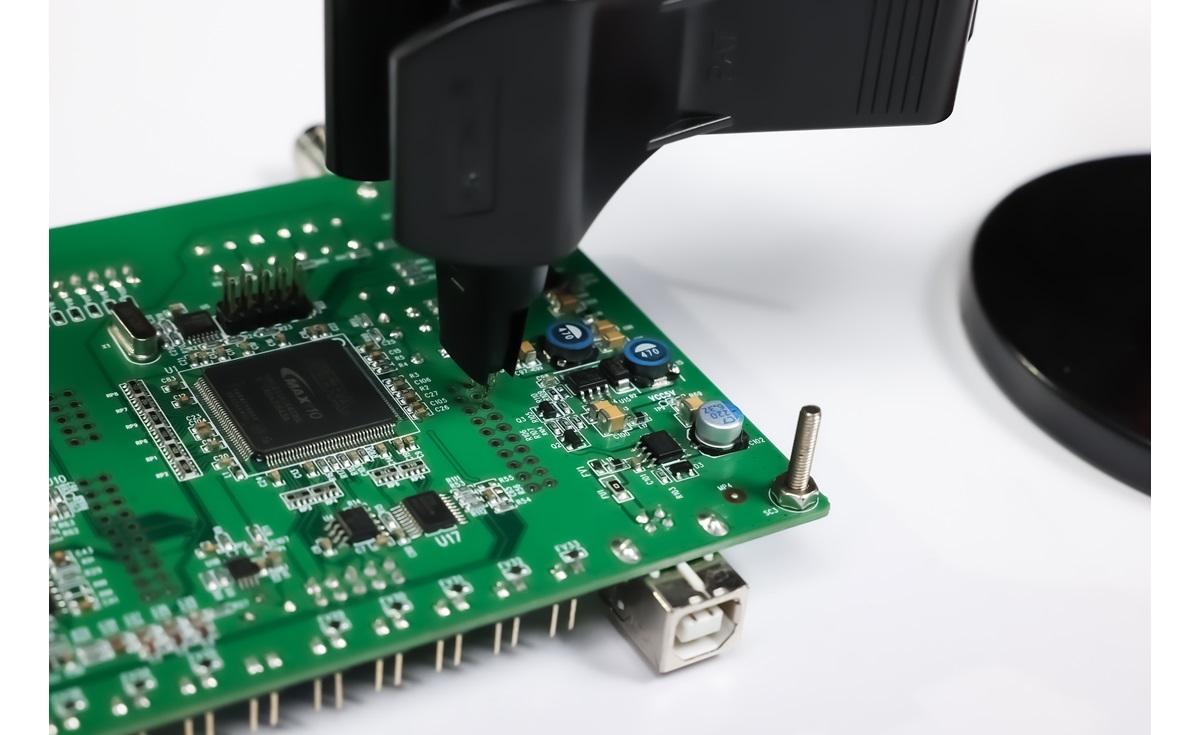

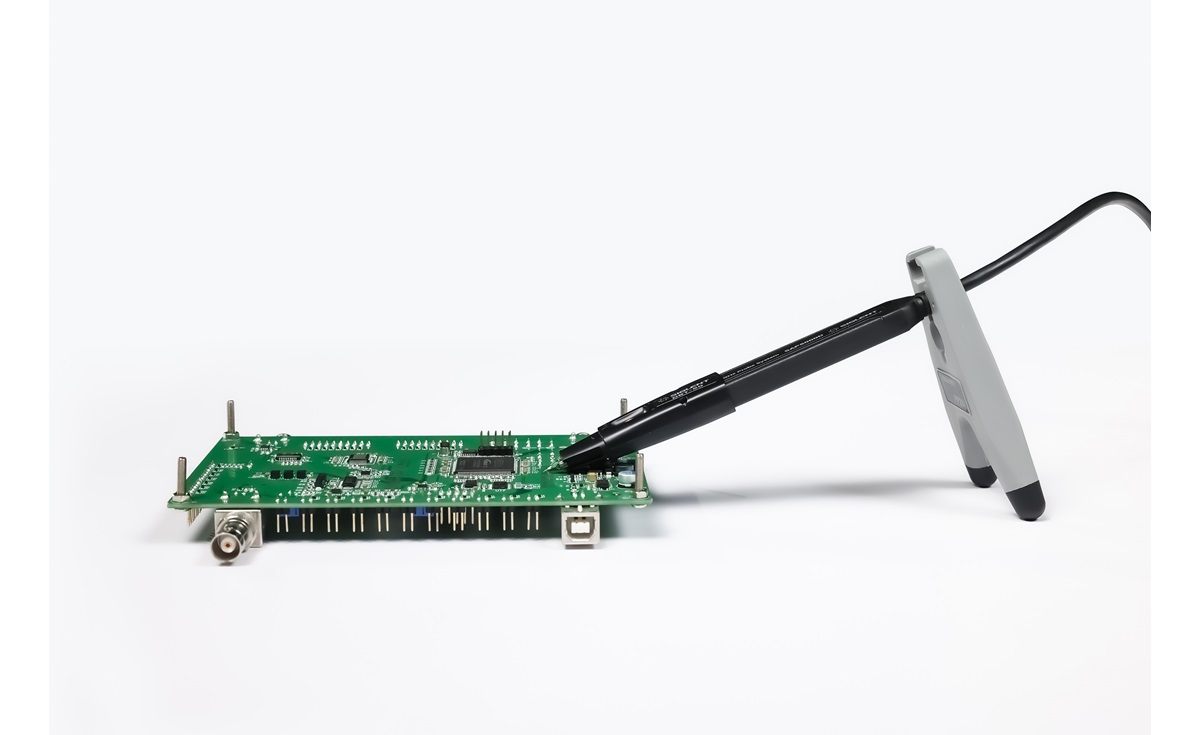

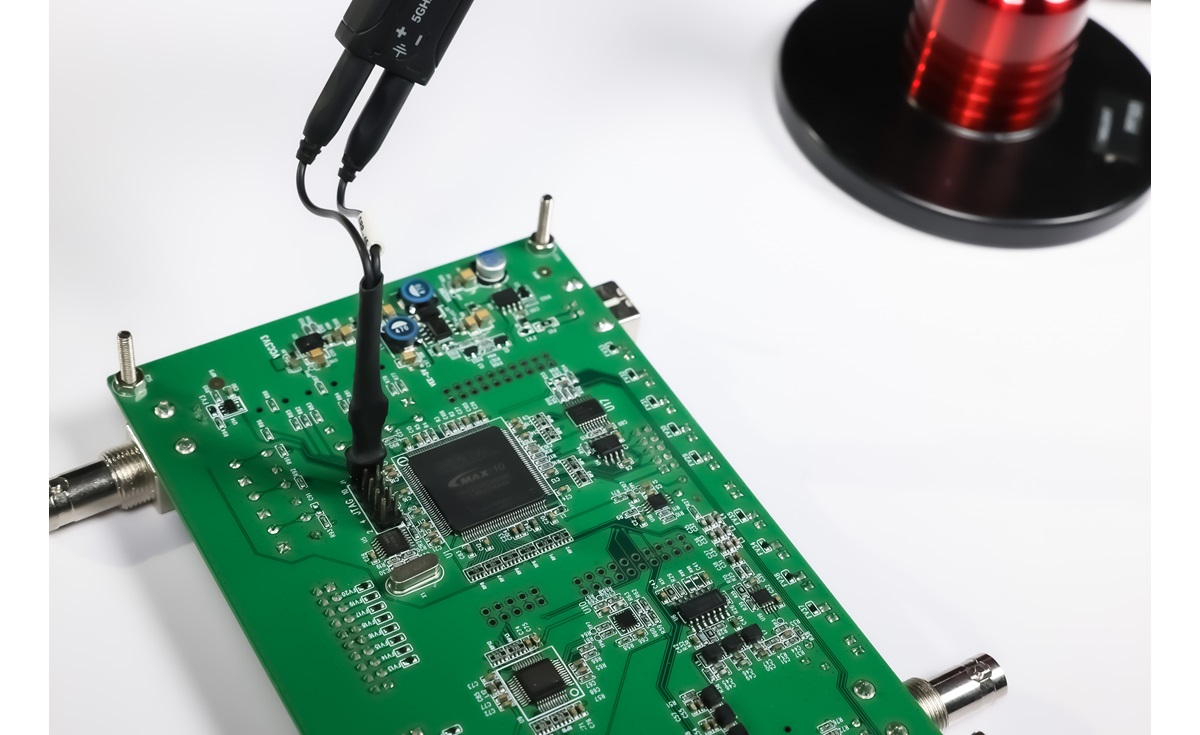

The SAP5000D is a compact, high impedance differential probe designed to meet today’s increasing demand for measurements on a variety of test points. With low input capacitance and high input resistance, circuit loading is minimized.
With the SAPBus interface, the SAP2500D becomes an integral part of the oscilloscope measurement circuit. The probe can be controlled from the oscilloscope’s front panel. The oscilloscope provides power to the probe, so there is no need for a separate power supply or batteries.
| Bandwith | 5 GHz |
| Input Impedance | 200 kΩ 1 pF |
| Offset Range | ±8 V |
| Gain Accuracy | <3 % |
| Max. Input | 20 V |
| Dimensions (Interface) Dimensions (Probe Head) | 115.0 mm x 38.9 mm x 24.5 mm 100.0 mm x 12.0 mm x 10.0 mm |
| Cable Length | 130 cm |
