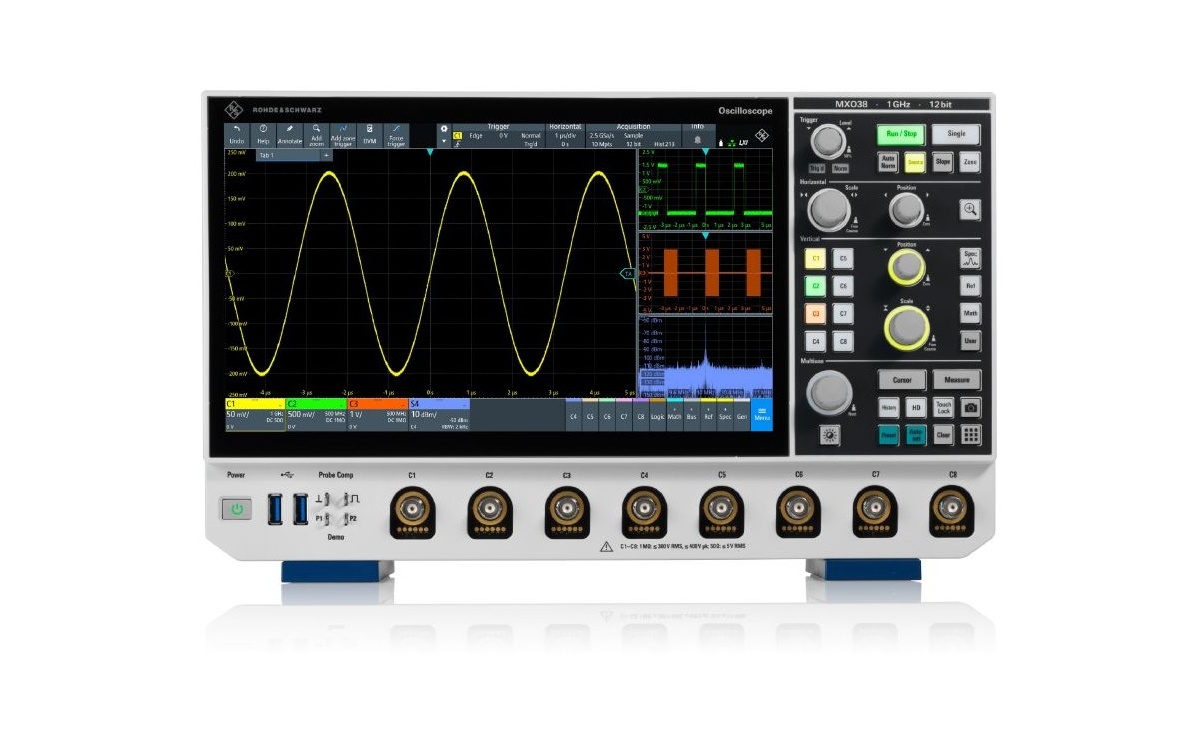

The R&S® MXO38-10PK is the latest oscilloscope in the 3000 series from Rohde & Schwarz, combining state-of-the-art measurement technology with a compact design. With its high real-time acquisition rate, it enables extremely reliable signal capture and makes even rare events visible. A particular highlight is the 12-bit ADC, which achieves a resolution of up to 18 bits in HD mode, allowing exceptionally fine signal differentiation. This ensures that even the smallest details can be captured with precision, even in complex or noise-heavy environments.

Thanks to its compact form factor, the R&S® MXO38-10PK can be flexibly integrated into laboratories and development environments without compromising performance or expandability. Users benefit from a robust architecture designed for everyday use, as well as versatile customization options for demanding measurement tasks. This makes the R&S® MXO38-10PK the ideal choice for research, development, and test environments where maximum accuracy, fast acquisition, and reliability are essential.

Dedicated operating modes for frequency analysis, mask tests and long data acquisitions are also integrated. Debugging all kinds of electronic systems is easy and efficient – and satisfies the all-important rule of investment protection at a very attractive price.

Features	MXO34	MXO38
Channel	4	8
Bandwidth	100 MHz - 1 GHz	100 MHz - 1 GHz
Sample Rate	5 GSa/s on 2 channels 2.5 GSa/s on 4 channels	5 GSa/s on 2 channels 2.5 GSa/s on 8 channels
Waveform Capture Rate	4.500.000 wfms/s	4.500.000 wfms/s
Memory Depth	Standard Memory Depth: 125 Mpts each channel at "Single", all channels 125 Mpts each channel at "Run", max. 2 active channels 125 Mpts each channel at "Run", all channels With MXO3-B105 Option: 500 Mpts each channel at "Single", max. 2 active channels 500 Mpts each channel at "Run", max. 1 active channels	Standard Memory Depth: 125 Mpts each channel at "Single", all channels 125 Mpts each channel at "Run", max. 2 active channels 125 Mpts each channel at "Run", all channels With MXO3-B105 Option: 500 Mpts each channel at "Single", max. 2 active channels 500 Mpts each channel at "Run", max. 1 active channels
Waveform Generator	option	option
Logic Analyzer	option	option

You will find the specifications of the MXO3 series here.

MXO34 bandwidth sets (4 channel)	Bandwidth
MXO34-100	100 MHz (upgradable)
MXO34-200	200 MHz (upgradable)
MXO34-350	350 MHz (upgradable)
MXO34-500	500 MHz (upgradable)
MXO34-1000	1 GHz

MXO38 bandwidth sets (8 channel)	Bandwidth
MXO38-100	100 MHz (upgradable)
MXO38-200	200 MHz (upgradable)
MXO38-350	350 MHz (upgradable)
MXO38-500	500 MHz (upgradable)
MXO38-1000	1 GHz

Special Features

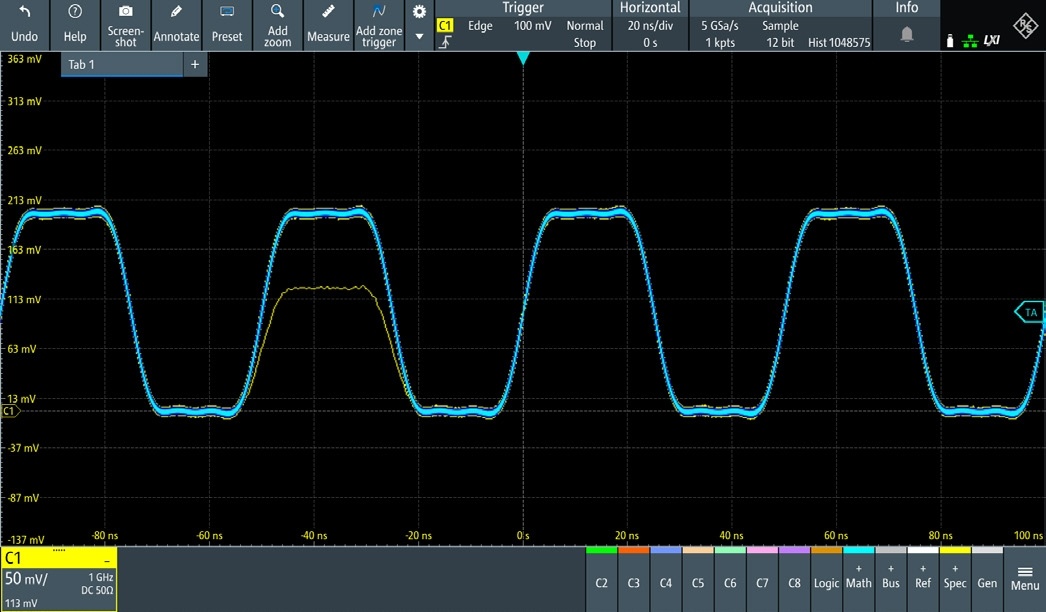

4.500.000 wfms/s Real-time acquisition rate

Find signal anomalies quickly. Smooth workflows – even with measurements, spectrum, math or long acquisitions.

4.5 M wfms/s (not a special mode)
100% trigger captures up to 4.5 M events/sec
Trigger re-arm time < 21 ns
Acquire, process & display signals with unrivaled speed
Detect signal faults & anomalies quickly
Increase your statistical confidence

12-bit ADC

High resolution & offset. Low noise signal path. More accurate measurements.

12-bit ADC at all sample rate
Lowest Noise: 120 uV full screen @ 1 mV/div and 1.5 GHz bandwidth
Largest offset range at highest sensitivity: +/- 5V @ 500 uV/div

Digital Trigger

Isolate events with even more precision.

Detect trigger event on sampled waveforms
Adjustable trigger sensitivity
Minimal trigger jitter < 1ps
Standard feature

Deepest standard memory

Capture more time. Fast sampling rate even with slow timebase.

Standard memory: 125 Mpts per channel
Maximum memory: 500 Mpts on 2 channels
Segmented memory & History mode
ASIC signal processing
Measure more (at high sample rate)
Capture distant trigger events

Up to 99 % real-time capture

While most oscilloscopes capture less than 2% of realtime system activity, MXO oscilloscopes capture up to 99% of your signal’s activity. Instantly see details that other oscilloscopes miss. With 4.5 million waveforms/s, quickly see rare events and anomalies that other oscilloscopes mask. Minimum trigger re-arm time is just 21 ns versus microseconds on other oscilloscopes.

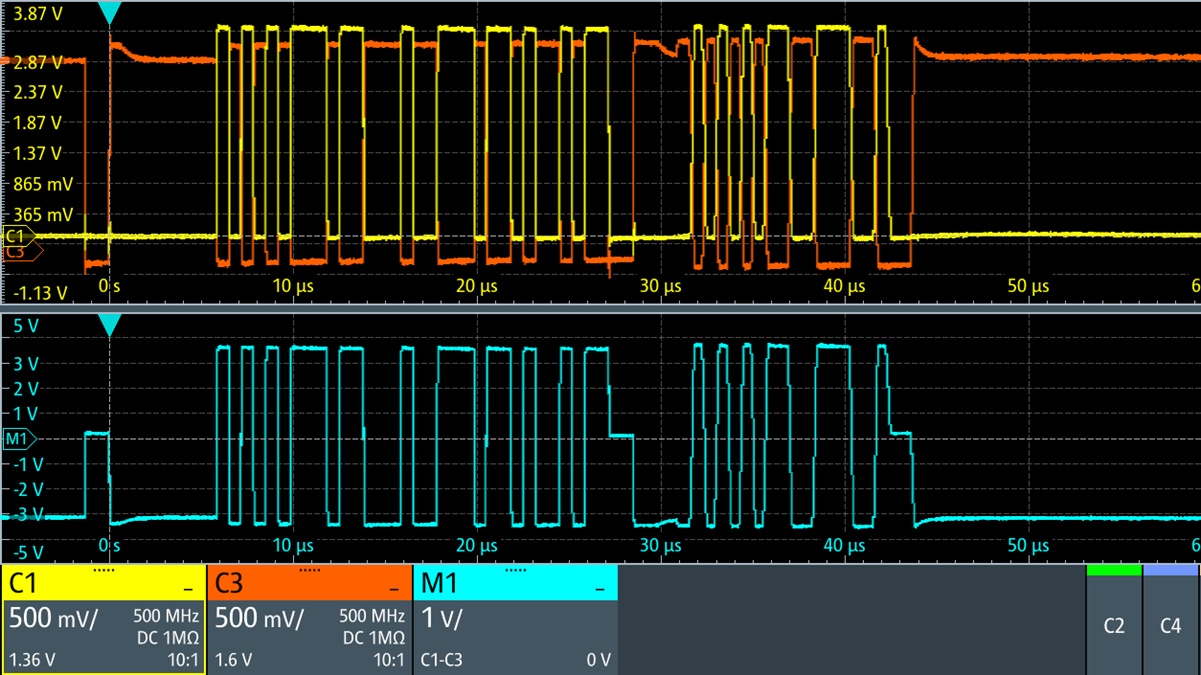

Hardware-accelerated everything

What other companies do in software, MXO oscilloscopes do in hardware. MXO3 incorporates hardware accelerated:

Math (up to 700,000 operations/s)
FFTs (up to 50,000 FFTs/s)
HD filters (up to 4.5 million acquisitions/s)
Zone triggering (up to 600,000 triggers/s)
Mask testing (up to 4,000,000 tests/s)
XY mode (up to 2,000,000 plots/s)
Protocol decode

Industry’s fastest spectrum

MXO3 creates its spectrum display by processing FFTs in hardware. See details in the frequency domain, including dynamic signal changes that other oscilloscopes do not show. Use free run trigger mode, a feature only found on Rohde & Schwarz oscilloscopes, to ensure the fastest spectrum performance of 50,000 FFTs/s.
