Vector-Network Analyzer, DNA5000
5 of 5 Article

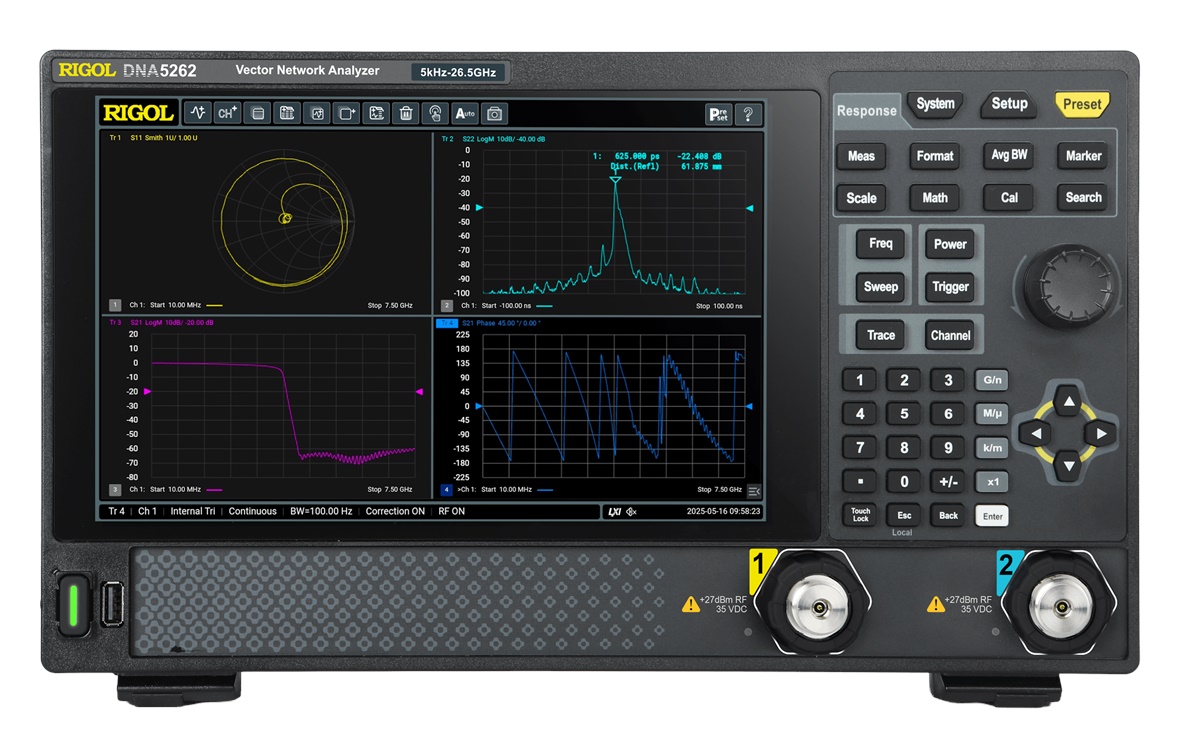

Rigol DNA5000 VNA
The DNA5000 series is a compact and cost-effective 2-port VNA platform designed for high-performance RF measurements in a portable form factor. Typical applications include RF component characterization, cable and antenna testing, university labs, and general RF debugging.
- Frequency range: 5 kHz to 26.5 GHz (model dependent)
- 2-port
- High dynamic range: up to 127 dB (typ.)
- Frequency resolution: 1 Hz
- IF bandwidth: 1 Hz to 10 MHz
- Maximum output power: up to +10 dBm
- Low trace noise (typ.): 0.005 dB
- Comprehensive calibration support: SOLT, OSL, response, enhanced response, and ECal
- 10.1″ capacitive touch display, compact and lightweight design
- LAN, USB, HDMI interfaces with SCPI and Web Control support
Another highlight of the DNA5000 models is the optional Distance-to-Fault mode: It precisely locates faults and impedance jumps along RF cables and line structures, making fault sources visible at a glance. In conjunction with Smith chart and polar displays, impedance matching is transformed from an abstract theoretical topic into an intuitively manageable task—ideal for fine-tuning antennas, filters, and high-speed interconnects. This makes the DNA5K the central solution for comprehensive analysis of transmission and reflection characteristics, signal integrity, and reliable troubleshooting in modern RF designs.
