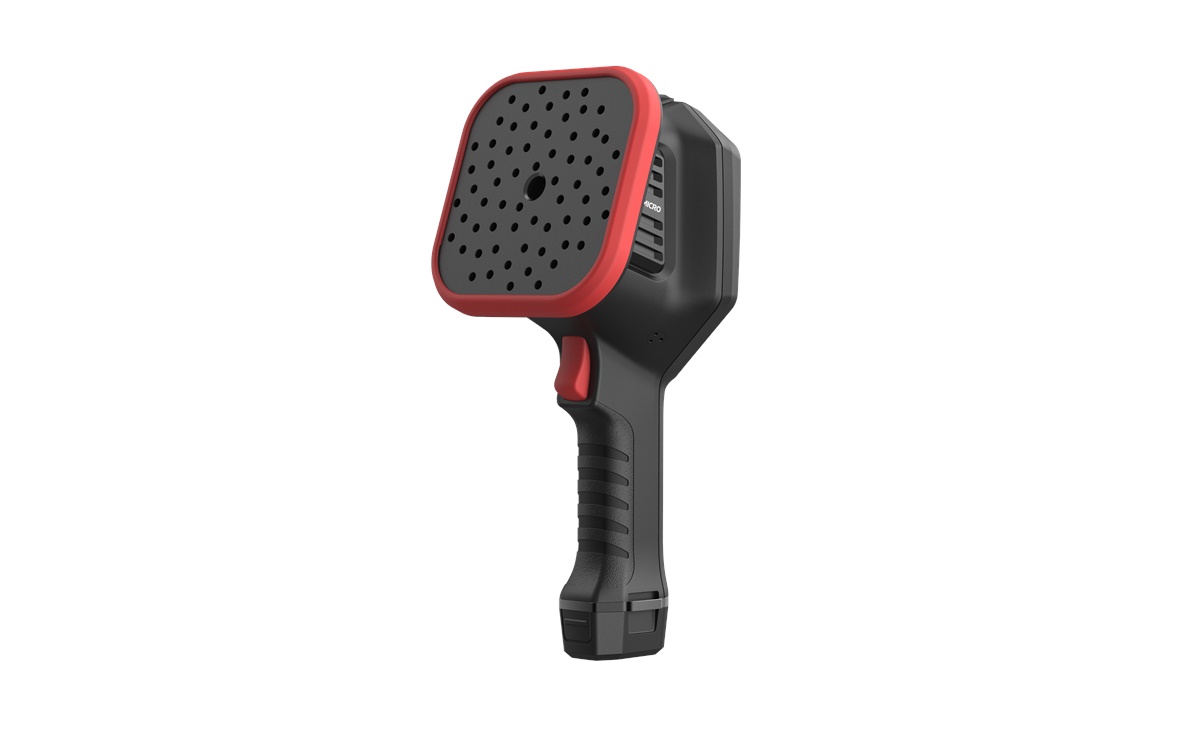

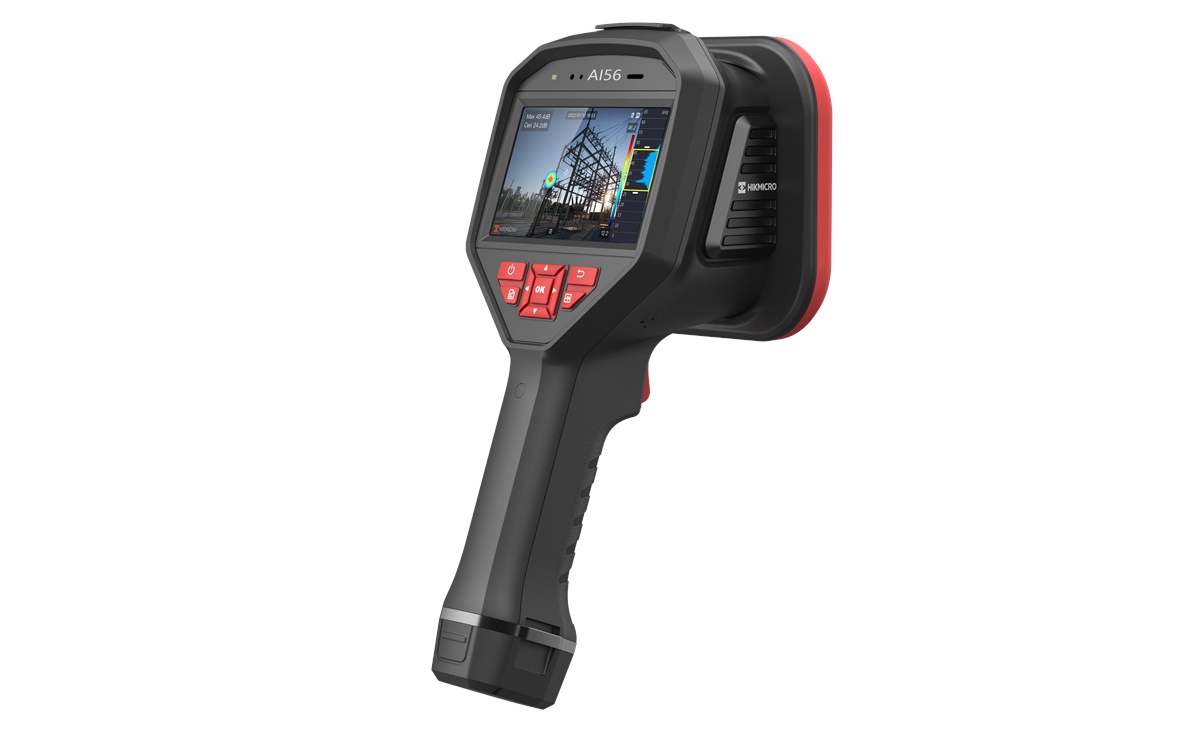

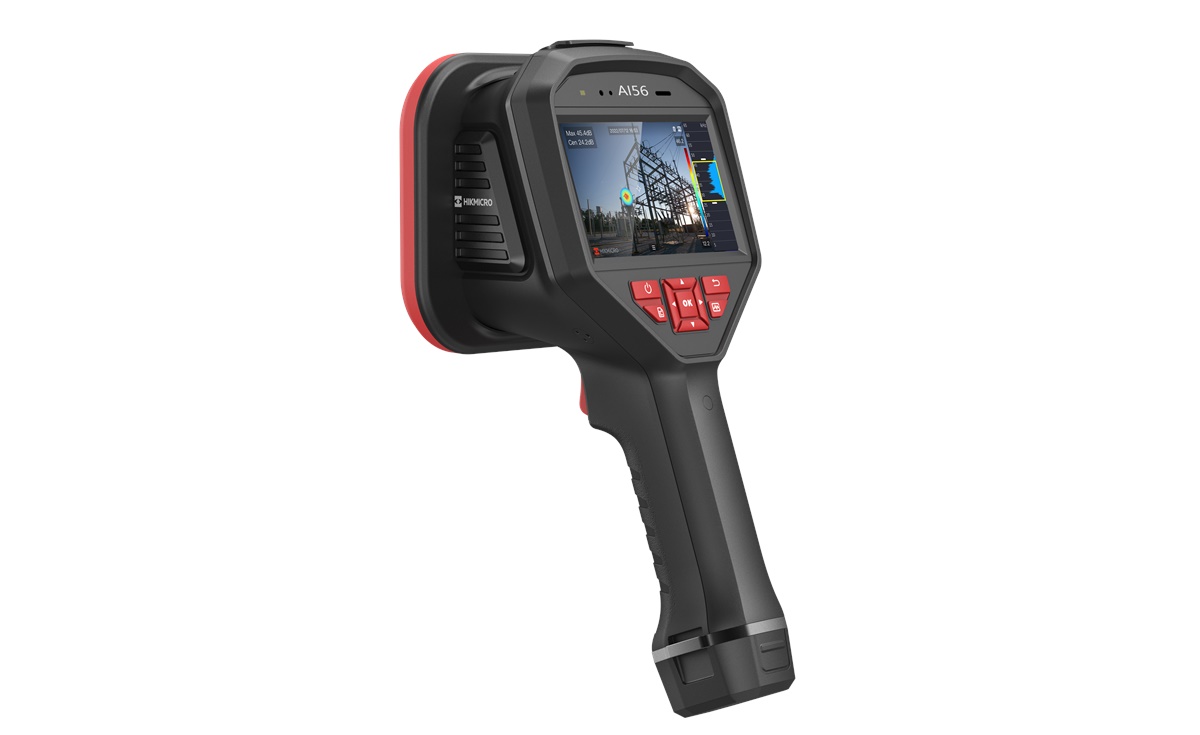

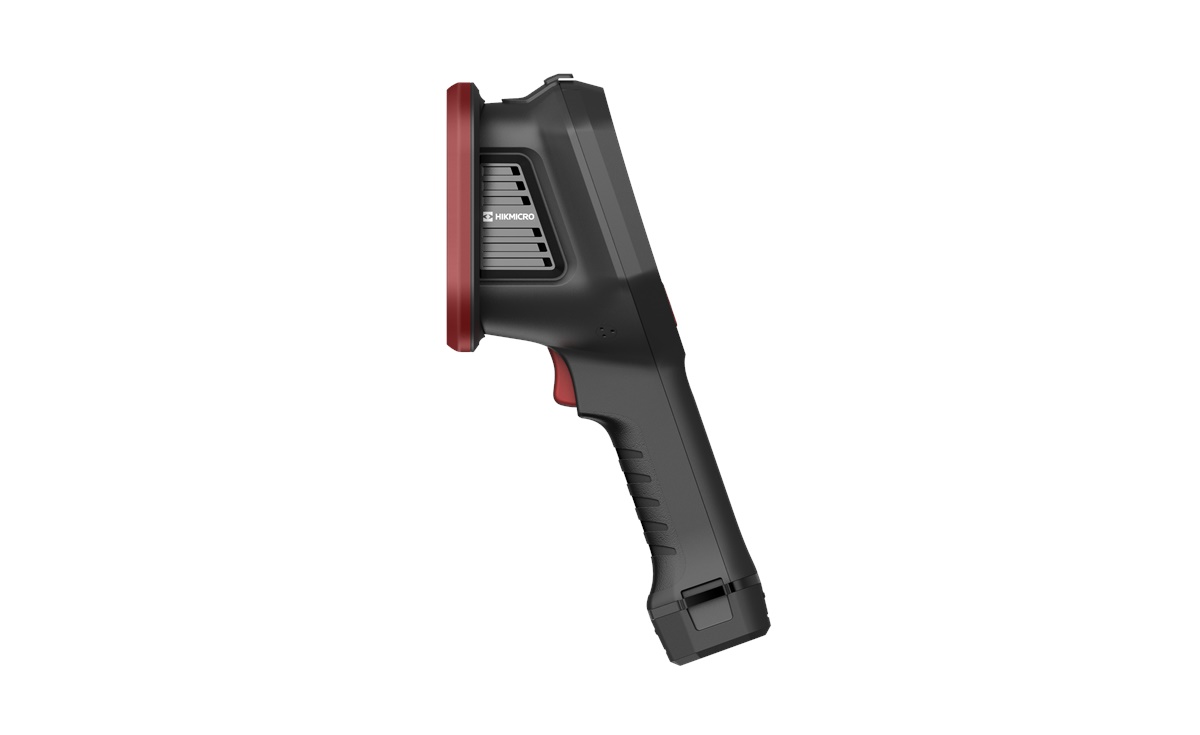

The Hikmicro AI56 is a compact acoustic imaging camera that visualises sound sources in real time and locates leaks or electrical discharges without contact – ideal for preventive maintenance in industry and energy supply.
Technical data
- Microphone array: 64 high-precision MEMS microphones for ultrasonic and audible frequencies
- Frequency range: 2 to 65 kHz, with real-time noise reduction
- Detection range: up to 100 m, depending on environmental conditions
- Display: 10.92 cm touchscreen with sonic map overlay on optical image
- Image modes: real-time sonic visualisation, spectral analysis, video recording
- Accuracy: <1° angle resolution for precise leak localisation
- Battery life: Up to 3.5 hours of continuous operation per battery
- Weight: approx. 0.94 kg, robust IP54 housing
- Connections: Wi-Fi, USB-C, HDMI-D
- Measurement functions: Calculate leak loss in l/min or £/year
- Perfect for tradespeople and engineers who want to quickly find compressed air leaks or partial discharges – saves time and energy costs.
| Model | Hikmicro AI56L | Hikmicro AI56 | Hikmicro AI76 |
|---|---|---|---|
| Number of Microphones | 64 | 64 | 136 |
| Acoustic Image Resolution | 800 × 480 | 800 × 480 | 800 × 480 |
| Bandwidth | 2 kHz-65 kHz | 2 kHz-65 kHz | 0 kHz-96 kHz |
| Distance | 0.3 m-100 m | 0.3 m-100 m | 0.3 m-100 m |
| Acoustic Image Palette | 8: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red | 8: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red | 8: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red |
| Camera FOV | 50.2°× 35.4° | 50.2°× 35.4° | 50.2°× 35.4° |
| Acoustic Image Frame Rate | 25 fps | 25 fps | 25 fps |
| Dynamic Range | Low Limit: <-15dB High Limit: >120dB | Low Limit: <-15dB High Limit: >120dB | Low Limit: <-15dB High Limit: >120dB |
| Leak Rate |
|
|
|
| Discharge Detection | Automatic detection 50 / 60 Hz | Automatic detection 50 / 60 Hz | Automatic detection 50 / 60 Hz |
| Discharge Type | NA | Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge | Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge |
| Image Display Display | 800 × 480 Resolution 4.3’LCD Touch Screen | 800 × 480 Resolution 4.3’LCD Touch Screen | 800 × 480 Resolution 4.3’LCD Touch Screen |
| Digital Zoom | 1.0x to 8.0x continuous | 1.0x to 8.0x continuous | 1.0x to 16.0x continuous |
| Data Storage | Removable 64 GB SD Card | Removable 64 GB SD Card | Removable 64 GB SD Card |
| Image Storage Capacity | 20,000 images | 20,000 images | 18,000 images |
| Video Storage Capacity | 60 hours | 60 hours | 60 hours |
| Video File Format | MP4 | MP4 | MP4 |
| Bluetooth | Bluetooth 4.1 | Bluetooth 4.1 | Bluetooth 4.1 |
| WiFi | 802.11 b/g/n (2.4 GHz and 5 GHz), Hot Spot only | 802.11 b/g/n (2.4 GHz and 5 GHz), Hot Spot only | 802.11 b/g/n (2.4 GHz and 5 GHz), Hot Spot only |
| USB Interface | USB Type-C | USB Type-C | USB Type-C |
| HDMI Interface | HDMI-D | HDMI-D | HDMI-D |
| Battery Operating Time | Approx. 3.5 hours | Approx. 3.5 hours | Approx. 2 hours |
| Battery Type | Dismountable and Rechargeable Li-ion Battery | Dismountable and Rechargeable Li-ion Battery | Dismountable and Rechargeable Li-ion Battery |
| Protection level | IP40 | IP40 | IP54 |
| Weight | Approx. 940 g (2.07 lb) | Approx. 940 g (2.07 lb) | Approx. 940 g (2.07 lb) |
Complete set
Professional kit in hard case, everything has its place and is well protected.
Interchangeable Battery System
Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 10 hours of operation (AI56, 6 hours for the AI76). You can stay powered up for even the longest inspections.
Low-Noise mics and adjustable bandwidth
With Low-noise MEMS microphones and an adjustable bandwidth range from 0 kHz to 96 kHz. The HIKMICRO AI series provides an easy and effective way to instantly locate gas leak detection and partial discharge from high-voltage systems.
Real-time estimates of leakage data
The HIKMICRO AI series offers real-time estimated leak rate, leak cost for gas leak detection. AI series can filter noise to “visualize” sound with a large 4.3" LCD touch screen even in noisy environments.
Smart Partial Discharge Detection (n/a for AI56L)
When placed in Partial Discharge mode, the AI series identifies corona, floating, surface, or particle discharge on high voltage systems that can lead to equipment failure. This is instantly displayed onscreen and can be saved for documentation and reporting.
Analyzer Acoustic
Analyzer Acoustic for PC is included at no additional cost or recurring fees. Simply import images from the camera to quantify issues, analyze field images, highlight concerns, and create reports for repairs, field audits, or energy rebate programs.
Voice & Text Annotations
In addition to supporting voice, text annotations to the image helps to improve inspection efficiency and productivity.
Downloads
Product information
HIKMICRO AI series flyer
Language: English
Version: V1.1en
File Size: 4.44 MiB
Release Date: 14.01.2026
Datasheet
HIKMICRO AI56 data sheet
Language: English
Version: V5.5.57en
File Size: 611.13 KiB
Release Date: 27.07.2023
Manual
HIKMICRO AI series manual
Language: English
Version: V5.5.118en
File Size: 2.95 MiB
Release Date: 17.07.2025
HIKMICRO AI series manual
Language: German
Version: V5.5.118de
File Size: 2.95 MiB
Release Date: 07.08.2025
HIKMICRO AI series QSG
Language: German, English, Chinese, Spain, French, Italian, Portuguese
Version: UD31326B-C
File Size: 5.89 MiB
Release Date: 08.03.2025
Guide
HIKMICRO AI series guide
Language: English
Version: Q3
File Size: 11.90 MiB
Release Date: 07.08.2025
Presentation of the HIKMICRO AI series devices for rapid detection of gas leaks and partial discharges in industrial and electrical installations. The basics of sound and sound pressure are explained, typical areas of application (including manufacturing, oil & gas, energy suppliers) are highlighted, and the most important technical features of the AI56 and AI76 models are described. The advantages over classic leak detection and ultrasonic testing devices, including software support for analysis and reporting, are also explained.
