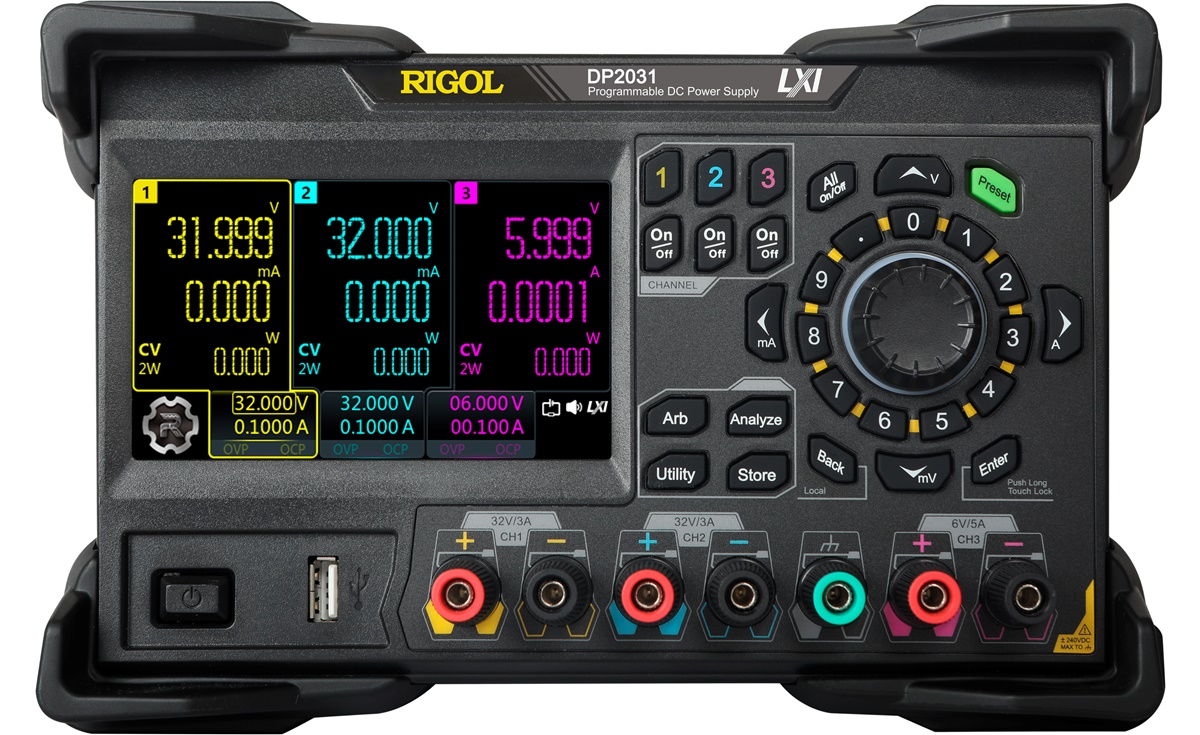

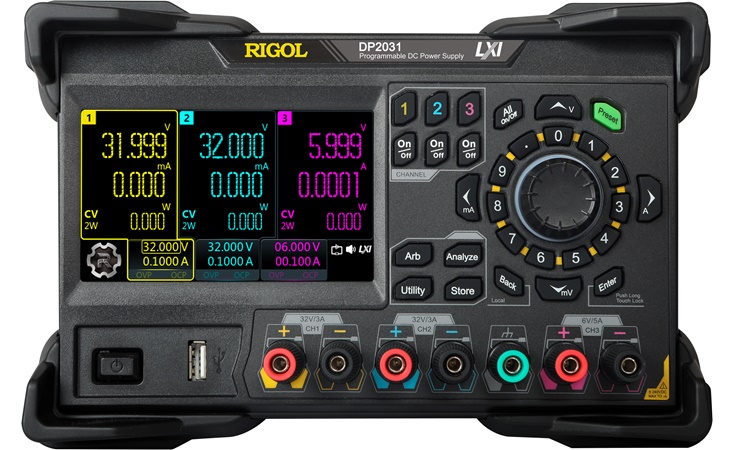

The Rigol DP2031 is a programmable laboratory power supplies with 3 electrically isolated independent channels with a maximum total power of 222 W.
Like all Rigol devices, the Rigol DP2031 features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.
The Rigol DP2031 features a relative large (10,9 cm / 4.3") and easy to read LCD color touch screen.
In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves.
A timer control can be used to set the output signal to different values in up to 2048 steps.
Internal series/parallel connections for CH1 and CH2.
| Overview | DP2032 |
|---|---|
| Voltage / Current CH1 | 0 - +32 V / 0 - 3 A |
| Voltage / Current CH2 | 0 - +32 V / 0 - 3 A |
| Voltage / Current CH3 | 0 - +6 V / 0 - 6 A(10 A optional) |
You will find the specifications of the DP2000 series here.
| A-Models | |
|---|---|
| Voltage Resolution | 1 mV/0.1 mA |

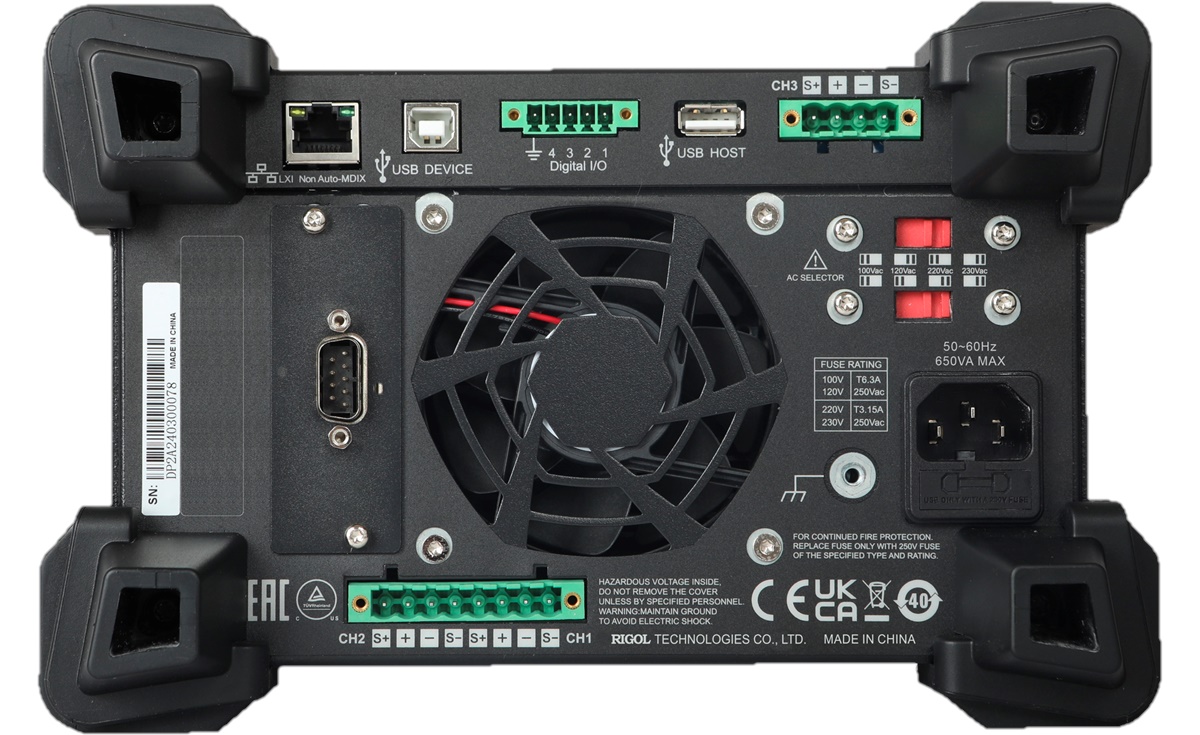

| LAN, RS232 and Digital IO Ports | Included |
| Online Monitoring & Analysis Function | Included |
| Display | 4.3" (10.9 cm) LCD color touch screen |
Downloads
Datasheet
DP2000 Data sheet
Language: English
File Size: 10.62 MiB
Release Date: 03.08.2022
Manual
DP2000 Manual
Language: English
File Size: 4.26 MiB
Release Date: 04.08.2022
DP2000 Quick start
Language: English
File Size: 2.71 MiB
Release Date: 04.08.2022
Guide
DP2000 Programming guide
Language: English
File Size: 2.58 MiB
Release Date: 04.08.2022
