Siglent SSG6087A

Name: Siglent SSG6087A
Brand: Siglent
Availability: BackOrder

SSG6087A Signal Generator by Siglent, Front view

Series SSG6000A Signal Generator by Siglent, Rear view

Series SSG6000A Signal Generator by Siglent

Be the first to write a review

HF signal generator up to 40 GHz, frequency resolution 0.01 Hz, output level from -130 dBm to max. +24 dBm, SSB phase noise typ. -135 dBc/Hz (@1 GHz; 20 kHz offset), 12.7 cm (5") touch display (800x480 pixels). Provides analogue AM modulation with internal, external or Int+Ext source. Incl. highly stable reference clock source OCXO.

Optional upgrades:

Pulse train generator SSG6080A-PT
Pulse modulation SSG6080A-PU

3 years warranty

No.: SSG6087A

with FREE shipping within the EU!
Shipping costs outside EU

in 11-30 days after order in stock.

€ 46,070.- net (VAT Details)

€ 54,823.30 incl. 19% VAT

Description

The Siglent SSG6087A signal generator’s output frequency range from 100 kHz to 40 GHz.

The device supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is designed for communication, aerospace, national defense and other fields. It is suitable for various application scenarios such as R&D and production.

Model	SSG6083A	SSG6085A	SSG6087A
Frequency Range	CW MODE 100 kHz - 13.6 GHz	CW MODE 100 kHz - 20 GHz	CW MODE 100 kHz - 40 GHz
Frequency Resolution	0.01 Hz	0.01 Hz	0.01 Hz
Amplitude Resolution	0.01 dB	0.01 dB	0.01 dB
Level accuracy	0.7 dB (typ.)	0.7 dB (typ.)	0.7 dB (typ.)
Phase noise	-135 dBc/Hz @1 GHz, offset 20 kHz (typ.)	-135 dBc/Hz @1 GHz, offset 20 kHz (typ.)	-135 dBc/Hz @1 GHz, offset 20 kHz (typ.)
Display	5 inch capacitance touch screen, RGB (800*480)	5 inch capacitance touch screen, RGB (800*480)	5 inch capacitance touch screen, RGB (800*480)

You will find the specifications of the Siglent SSG6000A series here.

Excellent Signal Purity

Excellent SSB phase noise
Low harmonic signal
Low nonharmonic signal
Ultra low broadband noise
Exceptionally high output level

Exceptional Functionality

AM Modulation
Pulse Generator
Pulse Modulation
Pulse Train Generator
Power Meter Control Kit

Exquisite Design

Remote control
Compact structure
User friendly interface
Large operating screen
Rich communication interface

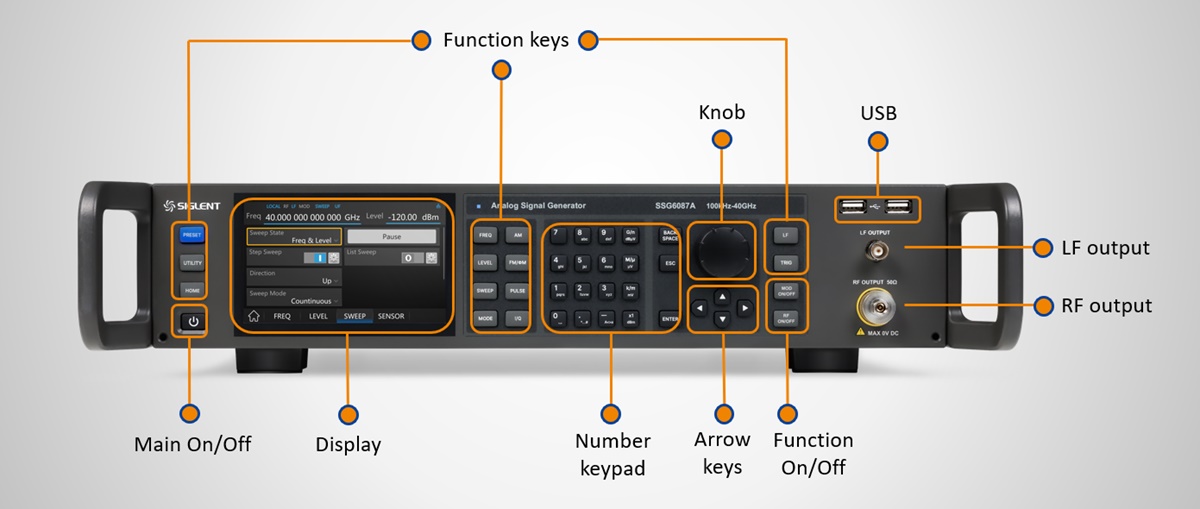

Intuitive Controls

5" touch screen
Multiple shortcut keys
Save occupied space and maintain test accuracy
Simplify measurement setup steps and improve test efficiency

Inputs/Outputs

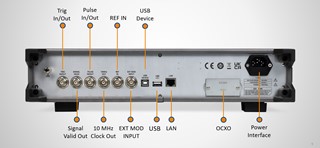

Rear panel connectors

TRIG IN / OUT
EXT MOD INPUT
PULSE IN / OUT
10 MHz IN
10 MHz OUT
SIGNAL VALID

Communication Interface

USB host USB-A 2.0
USB device USB-B 2.0
LAN (VXI - 11, Socket, Telnet)

Analog and Pulse Modulation

In addition to continuous wave signals the SSG6000A also provides the most common analog AM modulation mode as a standard configuration and is equipped with an excellent pulse signal generator and pulse modulator to generate user programmable pulses.

AM Modulation

High signal quality and perfect waveform reproduction
Modulation source: internal, external, internal + external

Pulse Modulation (SSG6080A-PU)

Support double pulse modulation
Less pulse width loss and extremely low overshoot probability
At 6 GHz the pulse width of 100 ns is missing 6 ns and there is no overshoot
Above 6 GHz no pulse width loss, no overshoot

Pulse Train Generator (SSG6080A-PT)

This produces a very long custom pulse train
It can generate staggered pulse groups or jitter pulse widths and pulse pauses
The pulse width and the pulse pause can be set independently and separately for each pulse
