The Hikmicro PocketE is a small and robust thermal imaging camera suitable for industrial inspection and maintenance, among other applications. It can detect temperature differences of less than 50 mK. The additional normal image camera combines thermal images with normal images to improve image quality and sharpness.
This can detect various temperature problems such as air leaks, pipe problems, hot fuses or insulation problems.

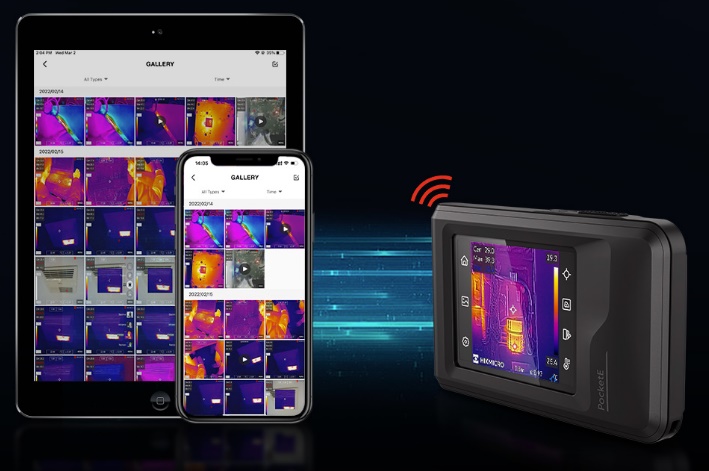

The 3.5-inch LCD touch screen makes it easy to operate the various functions. Images can be transmitted via Wi-Fi.
Specification | HIKMICRO Pocket2 | HIKMICRO PocketE |
---|---|---|

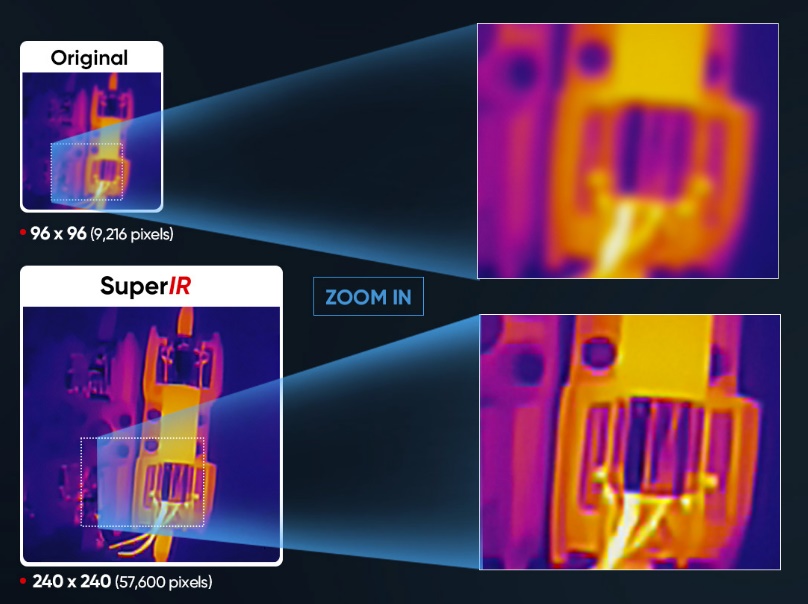

IR Resolution | 256 × 192 (49,152 pixel) | 96 × 96 (9,216 pixels), SuperIR = 240 x 240 (57,600 pixels) |

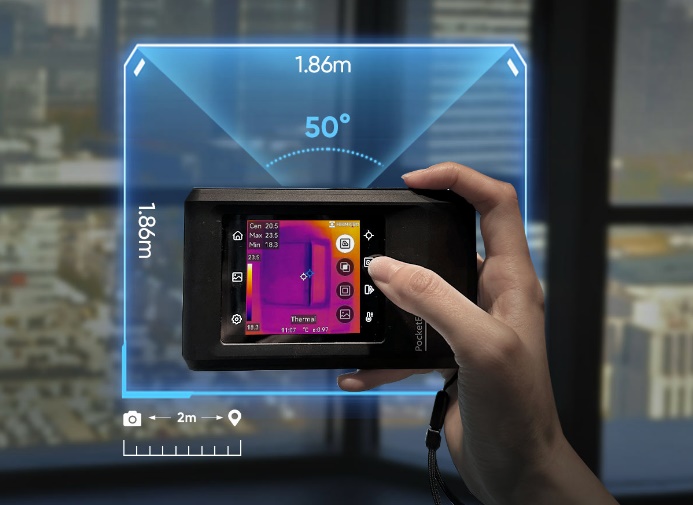

Field of view (FOV) | 50° × 37.2° | 50° × 50° |
Object Temperature Range | -20 to 400 °C | -20 to 350 °C |
NETD | < 40 mK (@ 25 °C, F#=1.0) | < 50 mK (@ 25 °C, F#=1.0) |
Image Frequency | 25 Hz | 25 Hz |
Accuracy | ±2 °C / ±2 % | ±2 °C / ±2 % |
Interface | Type-C USB / Wi-Fi / Bluetooth | Type-C USB / Wi-Fi |
Focus mode | Focus free | Focus free |
Min. focus distance | 0.3 m (0.89 ft) | 0.1 m (0.33 ft) |
Focal length | 3.5 mm | 1.35 mm |
Drop Test Height | 2 m | 2 m |
Protection level | IP54 | IP54 |
Power | Rechargeable Li-ion battery, approx 4 hours operating time | Rechargeable Li-ion battery, approx 4 hours operating time |

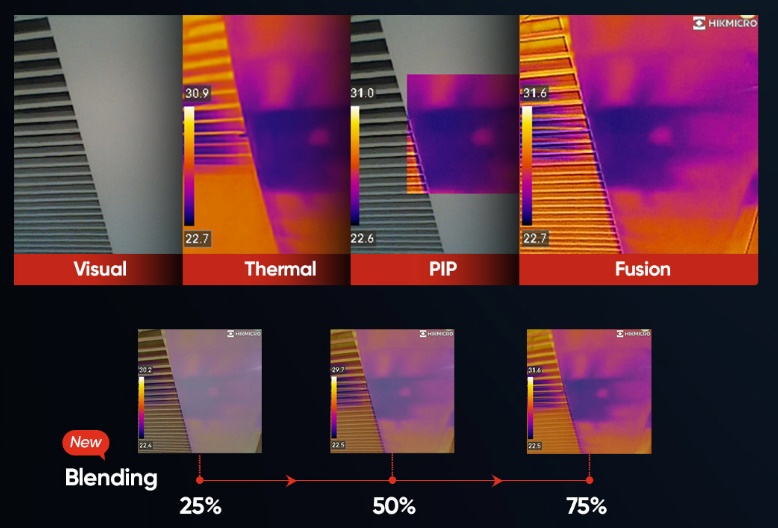

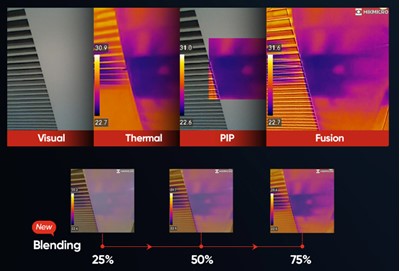

Built-in IR camera and visible camera, allow you to switch 5 image modes (Thermal, Visual, PIP, Fusion, and Blending). “Fusion” blends key details from a 0.3M Pixels visual camera to the IR image, adding extra detail and clarity. “Blending” blends partially transparent infrared and visible images into a single view and allows you to adjust the transparency. "PIP" overlays a fixed section of a thermal image onto a digital photo to clarify anomaly locations.
