Name: Rigol DG1032Z
Brand: Rigol
Availability: InStock
Rating: 4.61 (18 reviews)

Description

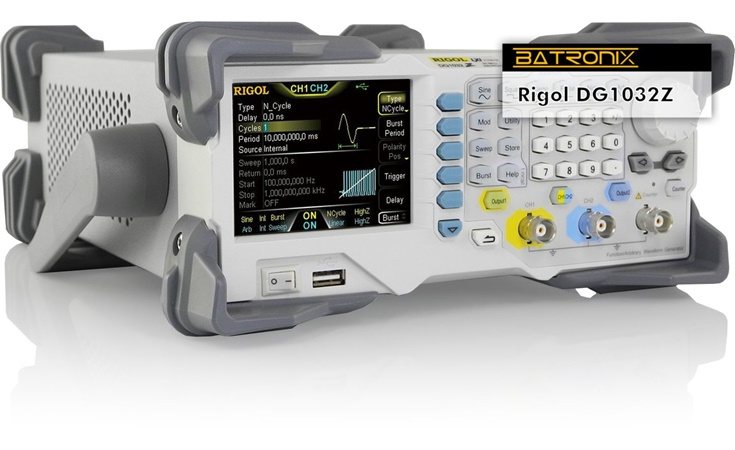

The Rigol DG1032Z is a 2 channel Function / Arbitrary Waveform Generator to create high quality signals up to 30 MHz (Sine) with very low jitter (200 ps) and the new SiFi (SIgnal FIdelity) technology. Beside the two analog outputs, the device includes an USB-Host- and an USB-device interface.

The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Model	DG1022Z	DG1032Z	DG1062Z
Max. Frequency	25 MHz	30 MHz	60 MHz
Memory	2 MPts (16 MPts optional)	8 MPts (16 MPts optional)	8 MPts (16 MPts optional)
Max. Sample rate	200 MSa/s	200 MSa/s	200 MSa/s
Resolution	1 µHz	1 µHz	1 µHz
Channels	2	2	2

Special Features

Filesystem and USB Stick Support
The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.
Integrated Helpsystem
The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.

LCD Screenshots

2 Channels

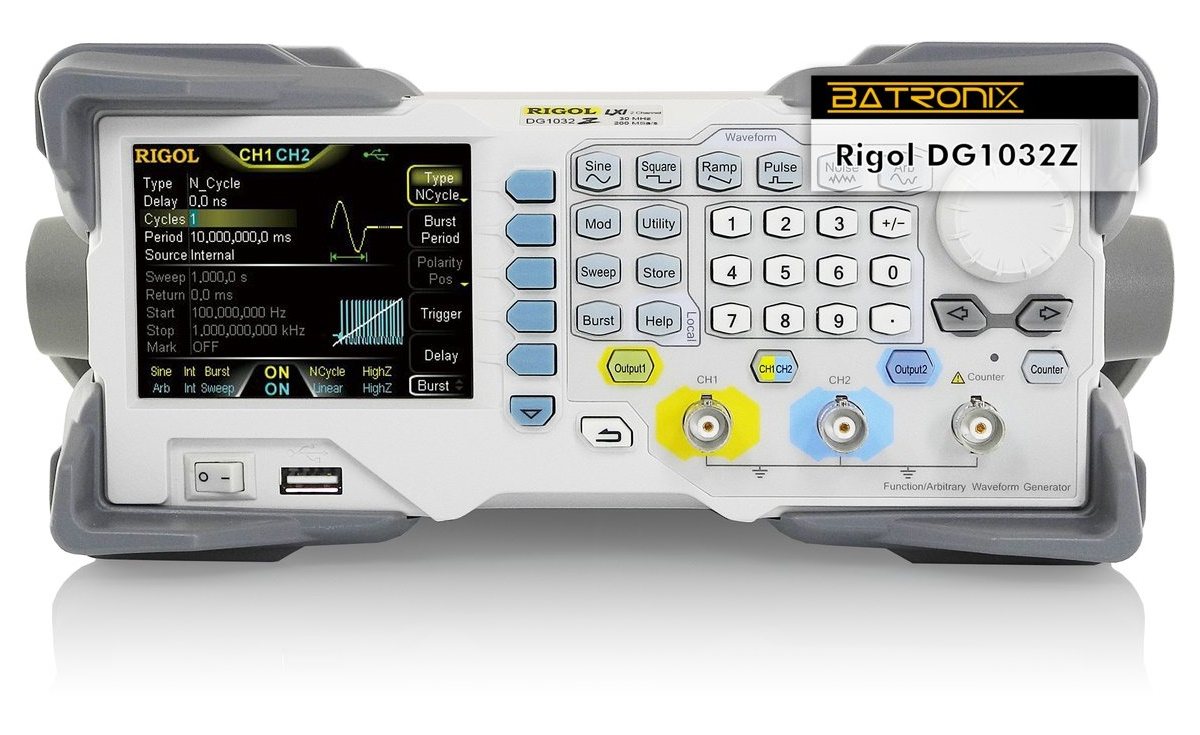

The display with a diagonal size of 8.9 cm (3.5") and a resolution of 320 x 240 pixels can easily display the details from both channels of the device. Both channels feature the full range of functions and can be synchronized phase-dependently. This function turns the device into a true dual-channel generator.

Arbitrary signal generation

Almost any waveform can be reproduced by using the arbitrary signal generator. Operation of the device is simplified enormously by the 160 pre-defined waveforms.

Independent analogue and digital modulation

Since the DG1000Z series function generators feature two independent channels which can be synchronized, it is also possible to output analogue and digital waveforms simultaneously.

Various sweep functions

The DG1000Z signal generators can cycle through defined frequency ranges at a constant amplitude and output various basic waveforms at the same time, such as sine, square, ramp, and arbitrary signals.

Harmonic signals

The function generators are able to generate harmonic overtone signals up to the 8th order, with adjustable parameters such as frequency, amplitude, and phase for all frequencies. Even, odd, all, or user-defined harmonics can be generated.

High resolution frequency counter

These devices feature a standard high resolution frequency counter. It is able to measure the frequency, period, positive and negative pulse length, and the duty cycle, all at frequencies ranging from 1 µHz to 200 MHz.

Waveform Summing

To generate a wide spectrum of waveforms the DG1000Z devices are capable of summing basic waveforms with different signal forms, amplitude ratios and frequencies.

Specifications

Generator	Function / Waveform Generator Rigol DG1032Z
Display	8,9 cm (3.5") TFT with 16M colors
Resolution	320 × 240 Pixel

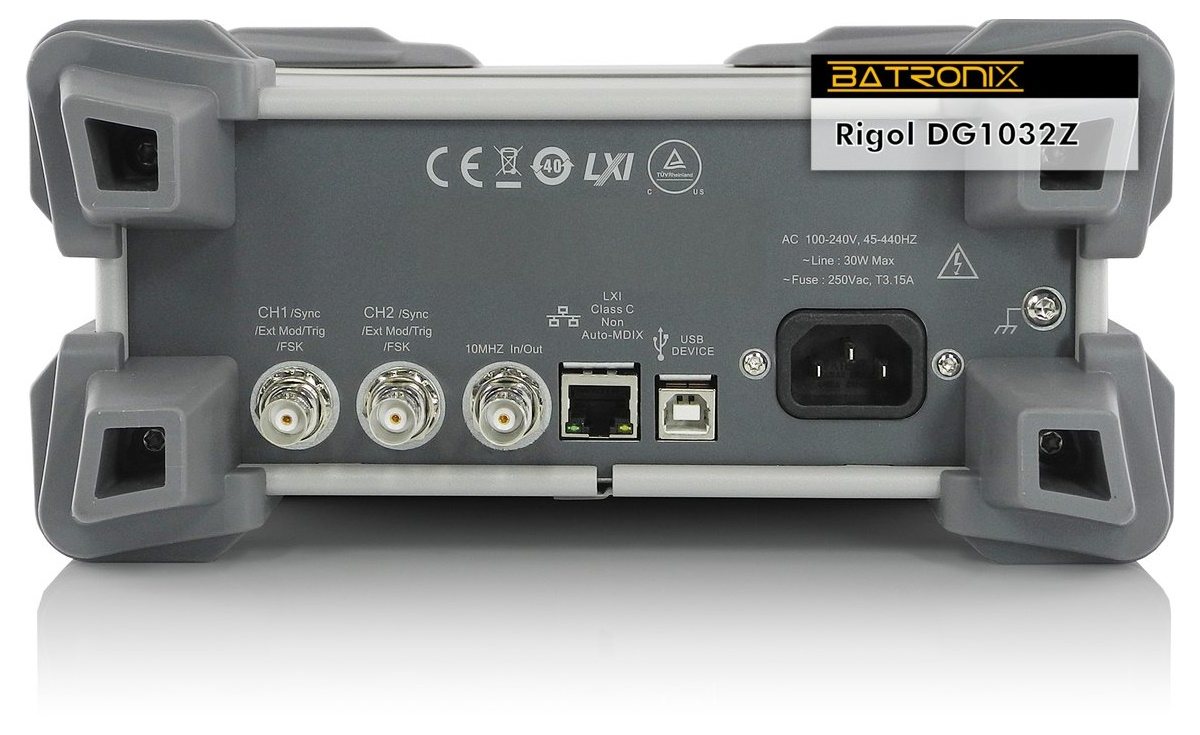

Interfaces	USB-Host (for USB stick i.e. to save/load waveforms) USB-Device for a PC connection LAN für die Verwendung im Netzwerk
Dimensions	318,4 mm × 261,5 mm × 112 mm (12.54" × 10.3" × 4.41")
Weight	3.2 kg (7.055 lbs)
Supported operation systems	Windows XP, Vista (32/64Bit), Windows 7 (32/64Bit), Windows 8 (32/64Bit)

The complete list of technical specifications can be found in the chapter "Specifications" of the Datasheet.

Function	Function / Waveform Generator Rigol DG1032Z
Channels	2
Signal Output	Sine, Rectangle, Pulse, Ramp, Noise, Harmonics, 160 predefined arbitrary Waveforms, free definineable arbitrary Waveforms
Vertical Resolution	14 bit
Amplitudes	≤10 MHz: 2,5 mVpp to 10 Vpp ≤30 MHz: 2,5 mVpp to 5.0 Vpp ≤60 MHz: 2,5 mVpp to 2.5 Vpp
DC Offset	±5 V (50 Ω)
Sample Rate	200 MSa/s
Frequency Range Sine	1 µHz - 30 MHz
Frequency Range Rectangle	1 µHz - 25 MHz
Frequency Range Pulse	1 µHz - 15 MHz
Frequency Range Ramp	1 µHz - 500 kHz
Frequency Range Harmonics	1 µHz - 10 MHz
Frequency Range Arbitrary	1 µHz - 10 MHz
Frequency Range Noise	30 MHz (-3db)
Resolution	1 µHz
