Rigol MHO5106

Name: Rigol MHO5106
Brand: Rigol
Availability: BackOrder

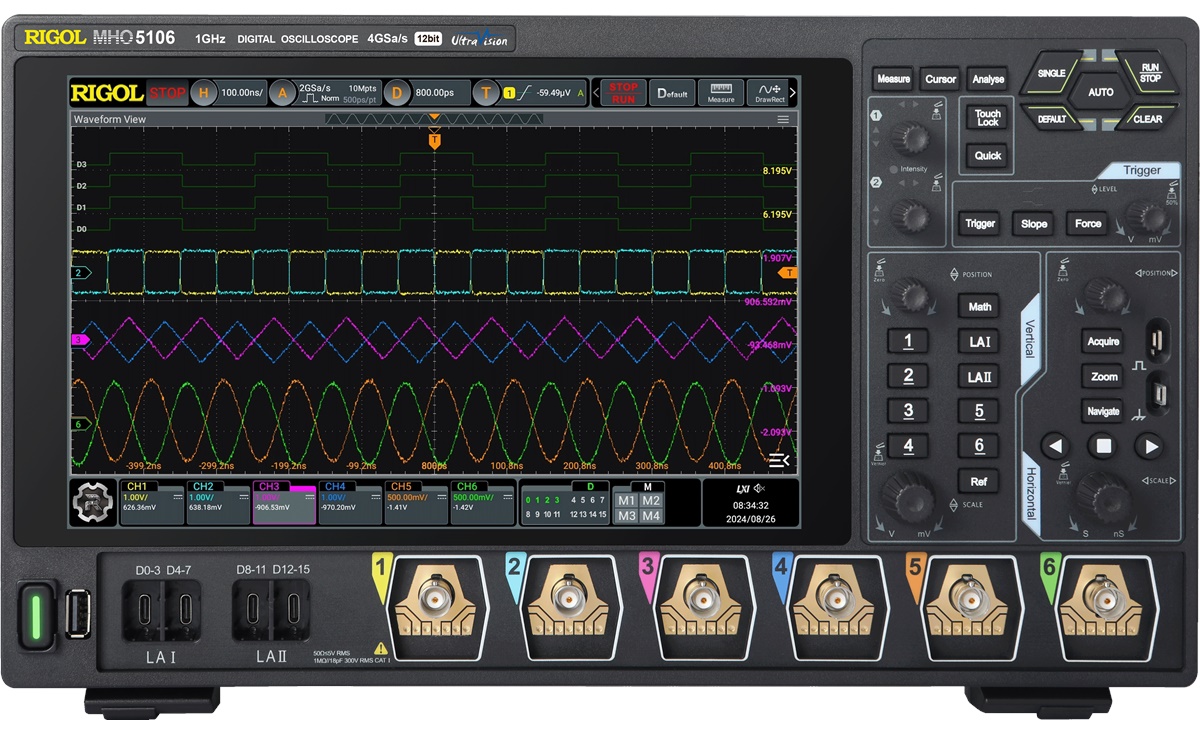

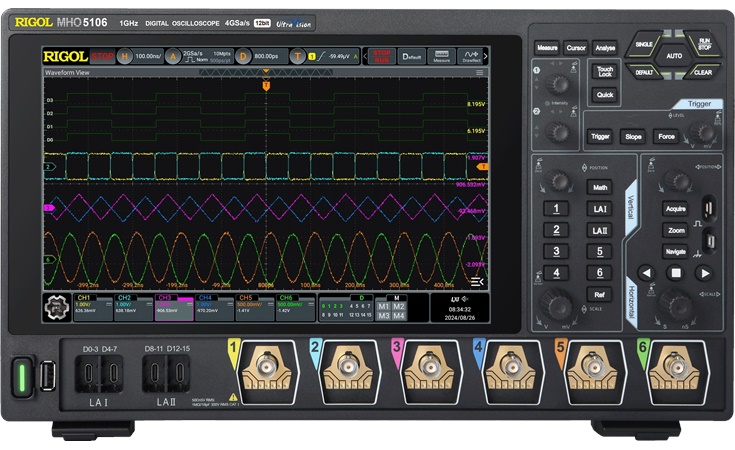

MHO5106 Oscilloscope by Rigol, Front view

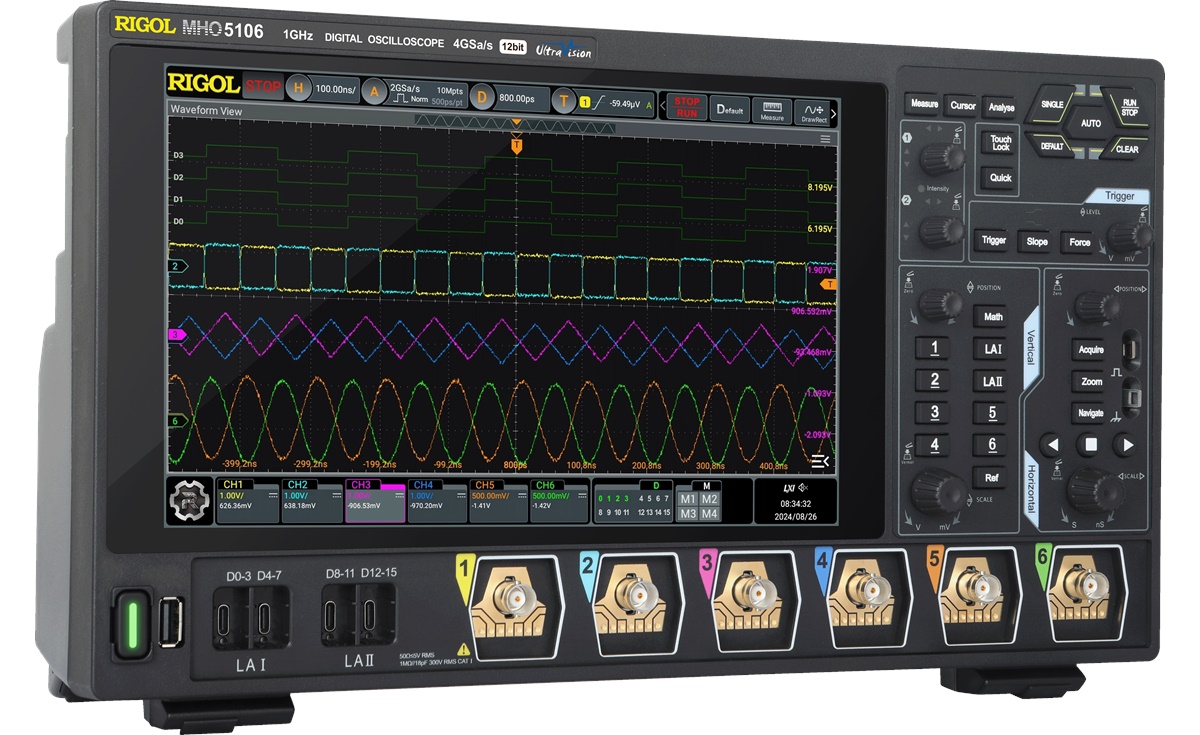

MHO5106 Oscilloscope by Rigol, Angled view

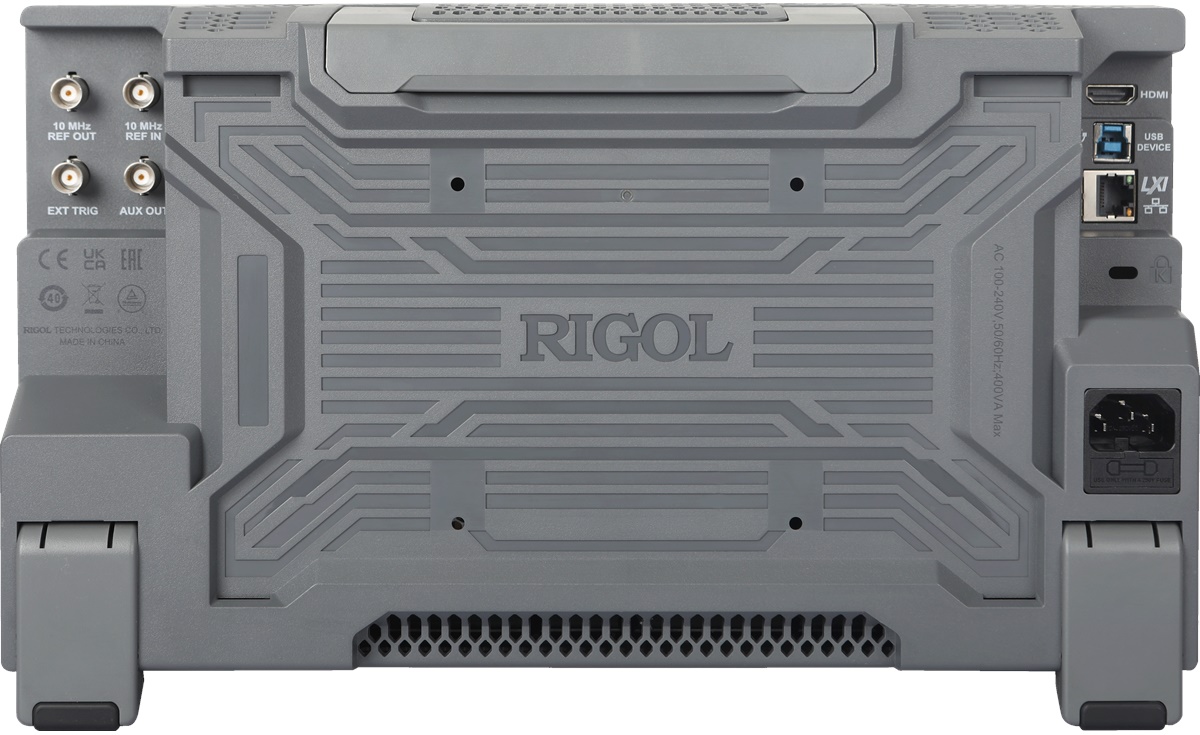

MHO5106 Oscilloscope by Rigol, Rear view

Be the first to write a review

6 channel oscilloscope with 1 GHz Bandwidth, 4 GSa/s sample rate, 12 Bit A/D converter, 500 Mpts memory depth and a 25.7 cm touchdisplay 1280x800 pixel. Upgradable to a MSO with a 16 channel logic analyzer. Serial decoders for I²C, SPI and RS232/UART are already included!

Rigol Promotion
Save now when you buy selected Rigol devices!
(Valid until December 31, 2026)

3 years warranty

No.: MHO5106

Free shipping within Germany and to our neighboring EU countries! Shipping charges apply to all other countries.

In 11-30 days after order in stock.

-15% RRP 15,468.81 €

11,049.15 € net (VAT Details)

13,148.49 € incl. 19% VAT

Description

The MHO-DHO5000 Series is a high-resolution 8-Channel Digital Oscilloscope designed for the vast mainstream digital oscilloscope market to meet design, debug and test requirements. It is based on RIGOL's brand new Centaurus technical platform. Its 1,000,000 wfms/s waveform capture rate (in fast capture mode), 500 Mpts memory depth, 12-bit resolution, excellent noise floor and vertical measurement accuracy can meet the test requirements for for higher accuracy.

The MHO-DHO5000 series digital oscilloscope has several models supporting AFG, digital signal analysis, bode plot and other functions. It is easy to operate and control, and can be used for various complex test scenarios.

Features

12-bit Vertical Resolution: With 12-bit vertical resolution and up to 4096 levels of quantization bits – 16 times that of an 8-bit oscilloscope – measurement accuracy is greatly improved, enabling the capture of the smallest details of a waveform
Low Noise: Make the most of 12 bit analog to digital converters with a significantly lower noise floor
500 Mpts Memory Depth: With up to 500 Million points in a single capture, use the deep memory to record events, navigate long continuous captures, or even further reduce the noise with high resolution mode
High Channel Count: Up to 8 analog input channels in a single instrument supports multi-channel test applications, such as power sequencing test, three-phase power analysis and motor test, third-generation semiconductor test, etc.
Multi-Instrument Capability: Arbitrary Waveform/Function Generator (opt), digital signal analysis, and Bode plot analysis (only available for MHO5054 and MHO5104 models)

The Rigol MHO5106 is equipped with a clear 10.1" touch display with 1280*800 pixels.

Features	DHO5000	MHO5000
Channel	4 - 8	4 - 6
Bandwidth	500 MHz - 1 GHz	500 MHz - 1 GHz
Sample rate	4 channel with each 4 GSa/s	1 channel with 4 GSa/s 2 channel with each 4 GSa/s 4 channel with each 2 GSa/s
	1 channel with 4 GSa/s 2 channel with each 4 GSa/s 8 channel with each 2 GSa/s	1 channel with 4 GSa/s 2 channel with each 4 GSa/s 6 channel with each 2 GSa/s
Waveform capture rate	1,000,000 wfms/s (UltraAcquire Mode)	1,000,000 wfms/s (UltraAcquire Mode)
Memory depth (standard)	1 channel with 500 Mpts 2 channel with each 500 Mpts 8 channel with each 250 Mpts	1 channel with 500 Mpts 2 channel with each 500 Mpts 6 channel with each 250 Mpts

DHO5000	Bandwidth	Channel
DHO5054	500 MHz	4
DHO5104	1 GHz	4
DHO5058	500 MHz	8
DHO5108	1 GHz	8

MHO5000	Bandwidth	Channel
MHO5054	500 MHz	4
MHO5104	1 GHz	4
MHO5056	500 MHz	6
MHO5106	1 GHz	6

You will find the specifications of the MHO-DHO5000 series here.

4 to 8 analog channels

With up to 8 analog input channels on a single device, the DHO5000 series can handle various multi-channel testing applications, such as Power Sequencing Tests, 3-Phase Power Analysis, motor testing, and third-generation semiconductor testing.

Compact Design

The DHO5000 series features a compact design with dimensions of 335 mm (W) × 235 mm (H) × 154 mm (D), minimizing desktop space usage. Its 5U rack mount height makes it an efficient solution for system integration, improving cabinet utilization and overall compactness.

Outstanding Testing Accuracy

With a 12-bit ADC and up to 4096 vertical levels, 16 times greater than an 8-bit oscilloscope, the DHO5000 significantly enhances measurement accuracy, capturing even the smallest waveform details. Whether testing power supply ripple or analyzing critical applications like medical devices, it helps you efficiently assess signal characteristics, ensuring every measurement is precise, enabling technological innovation.

Battery Pack Support

The DHO5000 supports battery pack power, allowing for measurements in locations without AC power. This is ideal for certain outdoor or vehicle-mounted testing. The battery pack also offers clean energy in high-interference environments, minimizing environmental impact on test results.

Front Panel DHO 8 channels

1 - 10.1" Capacitive Touch Screen 10 Vertical Controls
2 - Multifunction Knobs

3 - Measure Key

4 - Cursor Key

5 - Analyse Key
6 - Touch Lock Key
7 - Common Tools Keys

8 - Quick Action Key (Self-defined function)

9 - Trigger Controls
10 - Vertical Controls

11 - Probe Compensation Signal Output / Terminal/Ground Terminal
12 - Horizontal Controls
13 - Analog Channel Input Terminals
16 - USB HOST Port
17 - Power Switch

DHO User Interface

1 - Waveform View
2 - Operating Status Label
3 - Horizontal Timebase Label
4 - Sample Rate & Memory Depth Label
5 - Horizontal Position Label
6 - Trigger Label
7 - Function Icon Bar
8 - Result List
9 - Notification Area
10 - Math Labels
11 - Split-screen Display
14 - Analog Channel Labels
15 - Function Navigation Icon

Front Panel MHO 4 channels

1 - 10.1" Capacitive Touch Screen 10 Vertical Controls
2 - Multifunction Knobs

3 - Measure Key

4 - Cursor Key

5 - Analyse Key
6 - Touch Lock Key
7 - Common Tools Keys

8 - Quick Action Key (Self-defined function)

9 - Trigger Controls
10 - Vertical Controls

11 - Probe Compensation Signal Output / Terminal/Ground Terminal
12 - Horizontal Controls
13 - Analog Channel Input Terminals
14 - Digital Channel Input (Type-C Interface) (only on models MHO5054, MHO5104, MHO5056, and MHO5106)
15 - Two-Channel Function/Arbitrary Waveform Generator Output Terminal (only for models MHO5054 and MHO5104)
16 - USB HOST Port
17 - Power Switch

MHO User Interface

1 - Waveform View
2 - Operating Status Label
3 - Horizontal Timebase Label
4 - Sample Rate & Memory Depth Label
5 - Horizontal Position Label
6 - Trigger Label
7 - Function Icon Bar
8 - Result List
9 - Notification Area
10 - Math Labels
11 - Digital Channel Labels (only on models MHO5054, MHO5104, MHO5056, and MHO5106)
12 - Function/Arbitrary Waveform Generator Channels (only on models MHO5054 and MHO5104)
13 - Split-screen Display
14 - Analog Channel Labels
15 - Function Navigation Icon

Rear View

1 - 10 MHz Reference Clock Output Connector
2 - 10 MHz Reference Clock Input Connector
3 - Battery Pack Snap-Fit Slot
4 - HDMI Connector
5 - USB DEVICE Port
6 - LAN Port
7 - Kensington Security Lock Hole
8 - VESA Mounting
9 - AC Power Cord Connector
10 - Fuse
11 - Battery Pack Interface
12 - Battery Pack Mounting Slot
13 - Trigger Output Connector
14 - External Trigger Input Connector
