Rigol DSA815-TG

High quality spectrum analyzer from 9 kHz to 1.5 GHz with Tracking Generator.

Delivery including Power cord and Quick Guide

€ 1,422.05 incl. VAT

€ 1,195.- net

3 ... pieces:
€ 1,350.95 incl. VAT (€ 1,135.25 net)
with FREE shipping within the EU!Shipping costs outside EU


Availability:
Picture: n/a

This article is currently in stock and can be shipped immediately.

3 years warranty

30 days trial period


Share on facebook
Google +1
Twitter

The Rigol DSA815-TG is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.

The very large display (20.3 cm / 8") of the Rigol DSA815-TG Spectrum Analyzer provides a resolution of 800x480 pixels allowing a very good overview of all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer.

The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Model-Overview Max. Bandwidth EMI/QuasiPeak Adv. Meas. Kit Preamplifier Tracking Gen.
DSA815 1.5 GHz optional optional checked not checked
DSA815-TG 1.5 GHz optional optional checked checked
DSA832E 3.2 GHz optional optional checked not checked
DSA832E-TG 3.2 GHz optional optional checked checked
DSA832 3.2 GHz optional optional checked not checked
DSA832-TG 3.2 GHz optional optional checked checked
DSA875 7.5 GHz optional optional checked not checked
DSA875-TG 7.5 GHz optional optional checked checked

All optional moduls are enabled for a limited time period for evaluation purposes.

Special Features

Filesystem and USB Stick Support

The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.

Integrated Helpsystem

The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.

Screenshots

Picture: Spectrum compare

Spectrum compare

Picture: 10 Hz RBW

10 Hz RBW

Picture: AM Signal Demodulation

AM Signal Demodulation

Picture: Peak table function

Peak table function

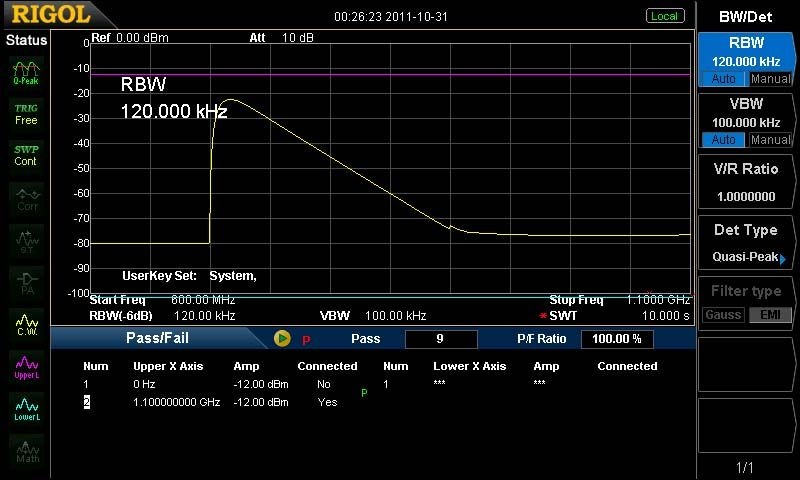

Picture: EMI Measurement (option)

EMI Measurement (option)

Picture: Preamplifier

Preamplifier


Spectrum Analyzer Spectrum Analyzer Rigol DSA815-TG
Display 21.6 cm (8.5") TFT-Color-LCD with 65536 colors
Resolution 800 × 480 Pixel
Interfaces
  • USB-Host (for USB stick i.e. to save/load waveforms)
  • USB for a PC connection
  • LAN for network connection
  • GPIB (IEE-488, General Purpose Interface Bus) The GPIB function is only available with the use of the optional available USB GPIB module
Dimensions

399 mm × 223 mm × 159 mm

(15.71" × 8.78" × 6.26")

Weight

6.2 kg (13.67 lbs)

7.5 kg (16.54 lbs) with connected battery. The battery is not included.

Supported operation systems Windows XP, Vista, Windows 7, Windows 8, Windows 10

The complete list of technical specifications can be found in chapter 6 "Specifications" of the manual. A shorter overview is available in the datasheet.

Function Spectrum Analyzer Rigol DSA815
Channels 1
Frequency Range 9 kHz to 1.5 GHz
Frequency Resolution 1 Hz
Internal Frequency Reference 10 MHz
Span 0 Hz (zero Span)
100 Hz to 1.5 GHz
DANL
(Displayed Average Noise level)
(Normalized to 1 Hz)
100 kHz to 1 MHz
1 MHz to 1.5 GHz
< -110 dBm, < -130 dBm (typ.)
< -130 dBm + 6 x (f / 1 GHz) dB, < -135 dBm (typ.)
DANL (with Preamplifier)
(Displayed Average Noise level)
(Normalized to 1 Hz)
100 kHz to 1 MHz
1 MHz to 1.5 GHz
< -130 dBm, < -150 dBm (typ.)
< -150 dBm + 6 x (f / 1 GHz) dB, < -155 dBm (typ.)
Amplitude Range DANL to +20 dBm
Max. Input Voltage 50 V
Sweeptime Range 100 Hz ≤ Span ≤ 1.5 GHz
0 Hz (zero Span)
10 ms to 1500 s
20 µs to 1500 s
Sweepmodes Normal or Single
Resolution Bandwidth (RBW) 10 Hz to 1 MHz (in 1-3-10 sequence)
Video Bandwidth (VBW) 1 Hz to 3 MHz (in 1-3-10 sequence)
Input Impedance 50 Ω nominal
