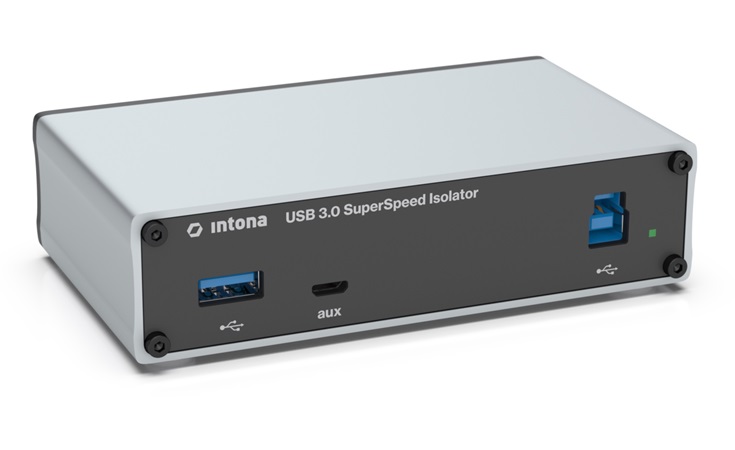

With the 7055-D, Intona offers the world's first complete solution for isolating USB 2.0 and 3.0 with isolation up to 5 kV RMS.
Intona's new 7055 series USB isolators transmit USB data while providing full galvanic isolation of both the data and the power lines. All three models support USB 2.0 Hi-Speed (480 MBit/s), the two models 7055-C and 7055-D also support USB 3.0 SuperSpeed (5 GBit/s). Alternatively available USB isolation products are limited to Full Speed (12 MBit/s) and Low Speed (1.5 MBit/s).
This product is an ideal solution to break ground loops, avoid noise coupling and protect ports from power surges and voltage spikes in applications which require high speed USB transfers.
Avoid unnecessary hours of troubleshooting your circuitry due to ground loops and noise coupling. Use Intona's Hi-Speed Isolators to take full advantage of the speed of your development tools such as microcontroller debuggers.
Input for external power supply
The isolated side can be supplied with an external power source via micro USB. This allows particularly power-hungry devices to be operated in isolation. Switching between internal and external supply is automatic.
Features
- Provides galvanic isolation to the USB bus
- Compliant to USB 2.0 Hi-Speed up to 480 Mbps (alle models)
- Compliant to USB 3.1 Gen 1, 3.0 SuperSpeed up to 5 GBps (model 7055-C and 7055-D)
- Backwards compatible to Full Speed and Low Speed
- Isolation withstands up to 5 kV RMS (model 7055-B and 7055-D) or 1 kV (model 7055-C)
- Advanced ESD protection (20 kV IEC Air-gap Discharge)
- Works out of the box, no drivers needed
- Transparent to host and device: wide compatibility to all operating systems, embedded systems and devices
- Works also with hubs and extenders
- Supports all USB-specific transfers and modes
- No additional round-trip latency
- Powered by USB bus, no separate power supply
- Ultra-quiet power rail isolation for less noise in highly sensitive applications
- up to 500mA output current on isolated side (model 7055-C up to 900 mA)
- up to 2000mA output current on isolated using the aux input
- National compliances: FCC, CE, RCM, ICES-003
- IP 54 Aluminum housing
- Dimensions: 120 x 30 x 70 mm
- Engineered and manufactured in Germany
Applications
- Measurement devices, test gear
- Industrial automation systems
- Environments requiring safety insulation
- Machine protection
- Broadcast and Studio
- Audiophile-grade home systems
- All applications requiring clean and stable USB connections with separate grounds
Models
| Models | USB | Specifications |
|---|---|---|
| 7055-B | USB 2.0 | 5 kV RMS AC Isolation |
| 7055-C | USB 2.0 + 3.0 | 1 kV DC Isolation |
| 7055-D | USB 2.0 + 3.0 | 5 kV RMS AC Isolation |
You will find the specifications of the 7055 series here.
