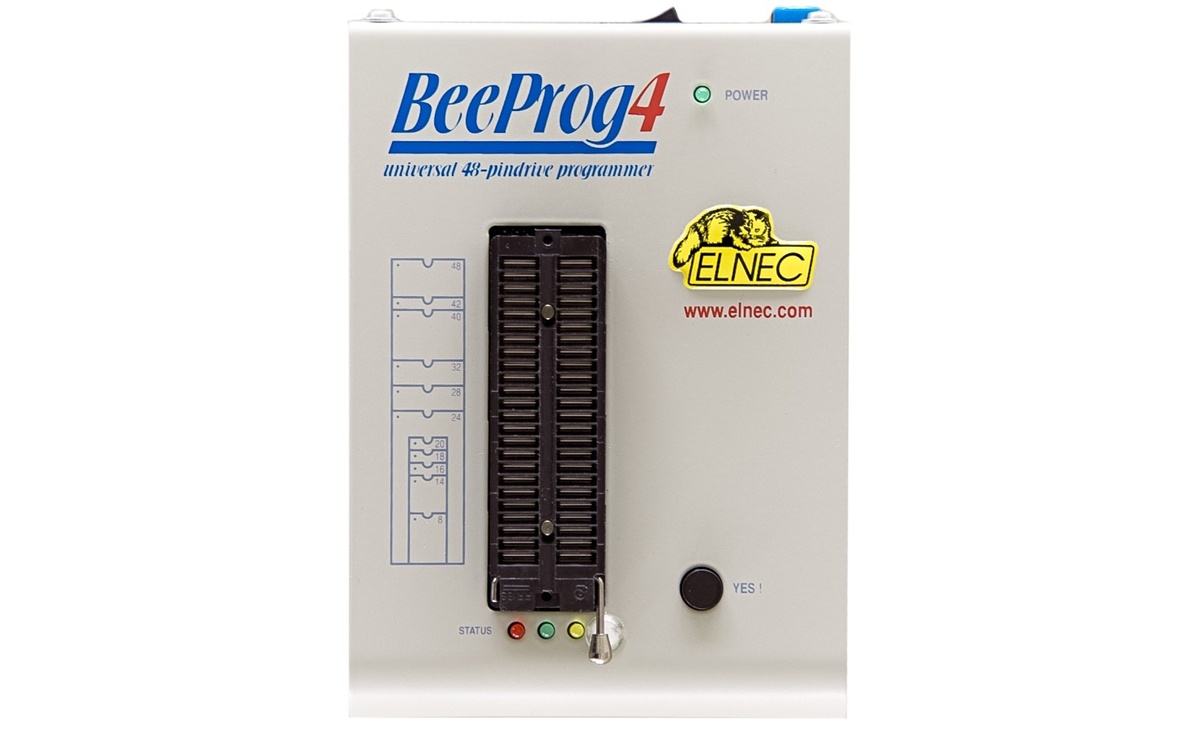

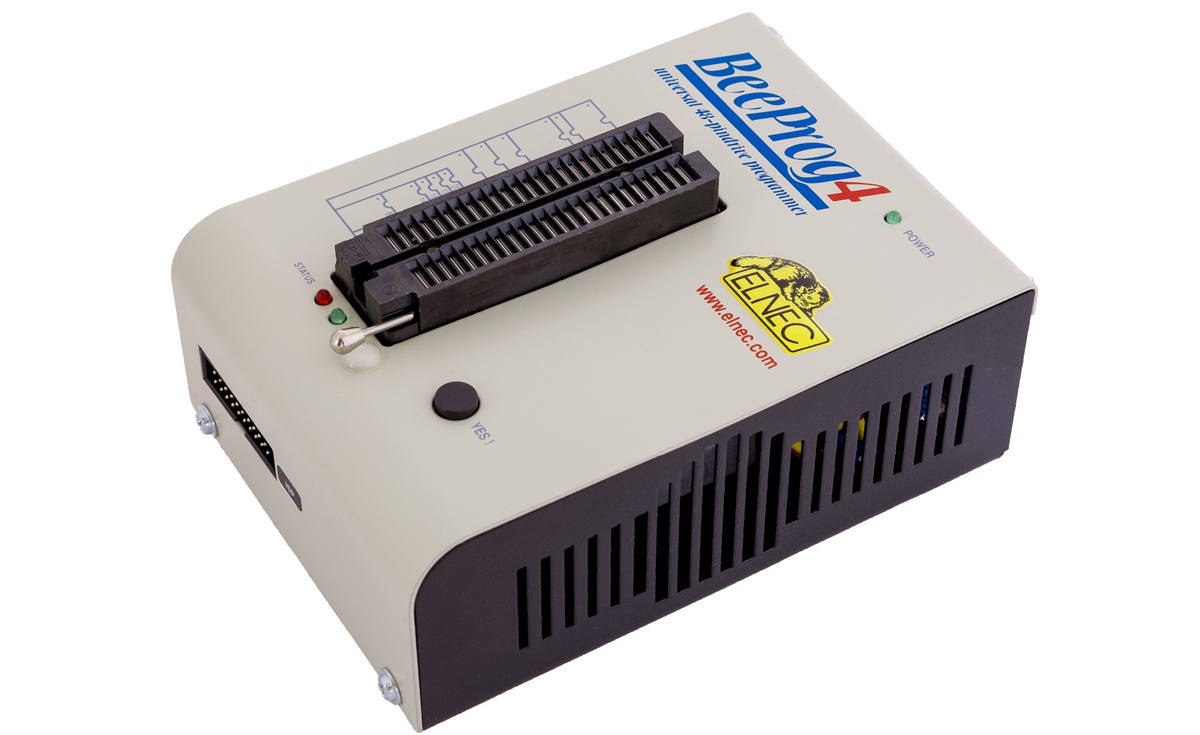

The Beeprog4 is a professional universal programming device for development, service, production, and mobile applications. The current device is a speed-up improvement of the Beeprog+ Programmer. In addition to the comprehensive component support and extremely fast programming, the Beeprog4 offers a rugged housing which is suitable for industrial applications. Programming speed improvement was focused to large memories (NAND Flash, parallel NOR Flash, serial NOR Flash). BeeProg4 is faster by 20-70% than BeeProg+ in such cases.
The BeeProg4 programs nearly all available chips like: EPROMs, paged EPROMs, EEPROMs, serial EEPROMs, FLASH memory (NOR and NAND), bipolar PROMs, NVRAMs, Microcontrollers, GALs, PALCEs, PLD's, SPLDs, CPLDs, EPLDs, Firmware HUBs, MCU, standard logic.
| Special Features | BeeProg4 |
|---|---|
| High Speed Programmer | |
| Chip Auto Identification | |
| Multi Programmer Control | |
| Automatic Programming Start | |
| Security features | |
| Multi-Voltage Verification |
| Chip Support | BeeProg4 |
|---|---|
| Eproms | |
| Eproms, 16 Bit | |
| EEproms | |
| Flash Eproms | |
| LPC, FWH | |
| Serial EEproms | |
| PLDs (PAL/GAL) | |
| Microcontroller | |
| Chip updates on customer request | Free via software updates |
| Supported chip variants | >140000 |
| Complete chip support list |  |
BeeProg Software
The BeeProg software features a comprehensive set of basic functions such as read, program, compare and delete, along with easy-to-use custom configuration options for any special functions required by the selected component.
For volume production of chips up to four BeeProg devices can be controlled simultaneously from one PC.
| Hardware Details | BeeProg4 |
|---|---|

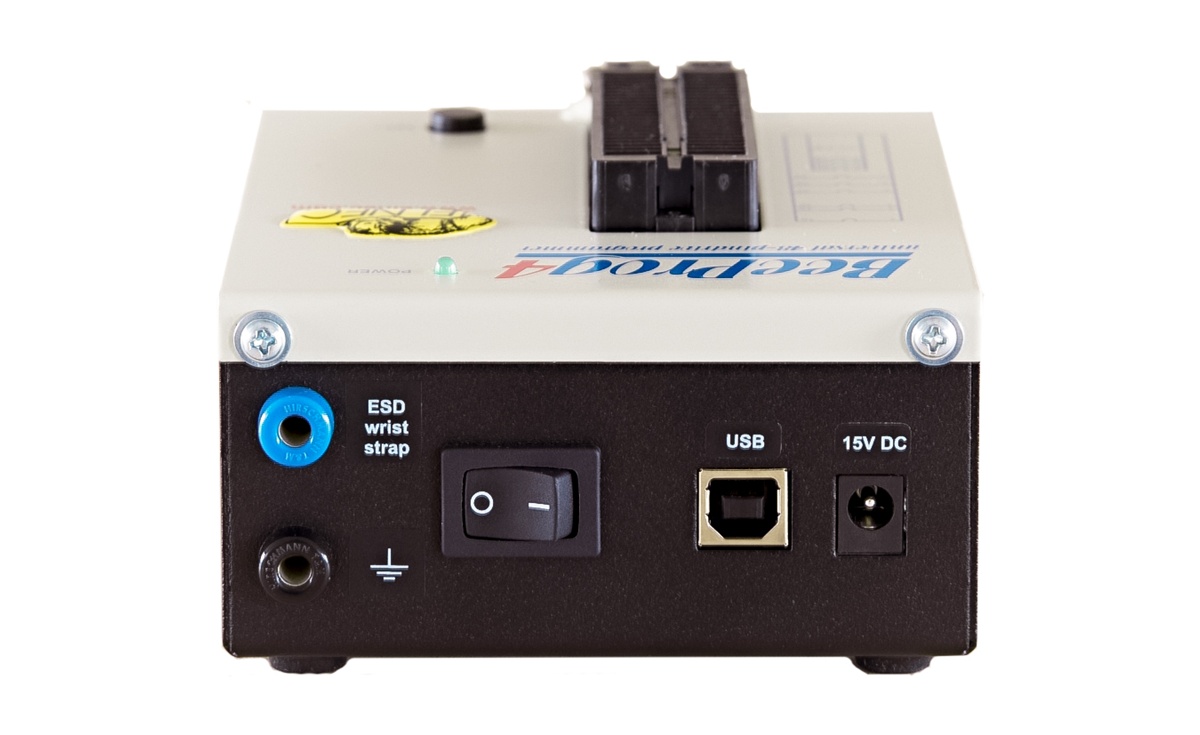

| Interface | USB 2.0 / 1.1 compatible (High Speed) or IEEE 1284 (ECP/EPP) printer-port (LPT) interface |
| Socket | 48 Pin "High Quality" lever socket from Aries |
| Pin driver | Universal |
| Low voltage support | down to 1.8 V |
| Dimensions | 19.2 × 14.0 × 5.6 cm (7.6" × 5.5" × 2.2") |
| Weight without accessories / packaging | 600 g (2.43 lbs) |
| Weight with accessories / packaging | 1200 g (4.11 lbs) |
| Warranty | 3 Years |
| Software Details | BeeProg4 |
|---|---|
| Process control | |
| Project management | |
| File formats | Binary, Intel Hex, Motorola S-Records, Exormax, MOS-Technology, ASCII Space, ASCII Hex, Texas Instruments, Tektronix, Extended Tektronix, POF |
| File format auto detection | |
| Offset | Data and chip offsets |
| Splitting | Complete 16 and 32 Bit splitting functions |
| Serial number generator | Very comfortable serial number generator with support for external serial number files |
| Checksum calculation | Checksum, MD5, CRC16 |
| Hex-Editor | Simple with some editing functions |
| Software remote control | |
| Software updates | free via download |
| Supported operation systems | Windows 11, Windows 10 |
| Languages | English, German, French, Chinese, Japanese, Korean, Portuguese, Slovak |
