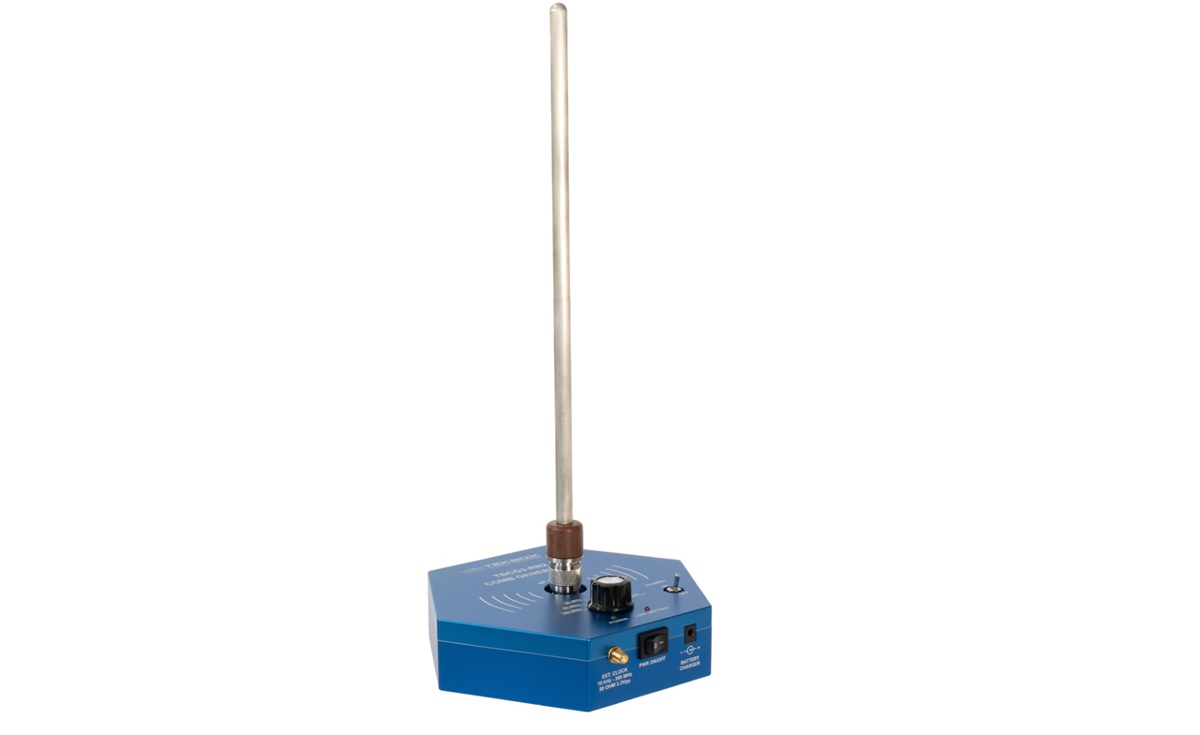

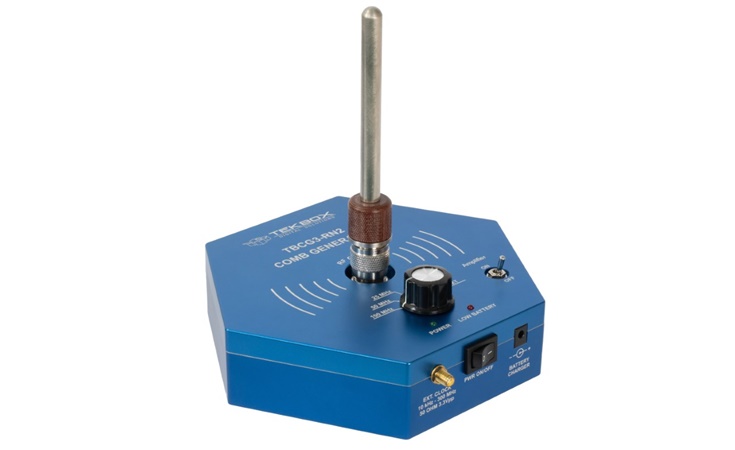

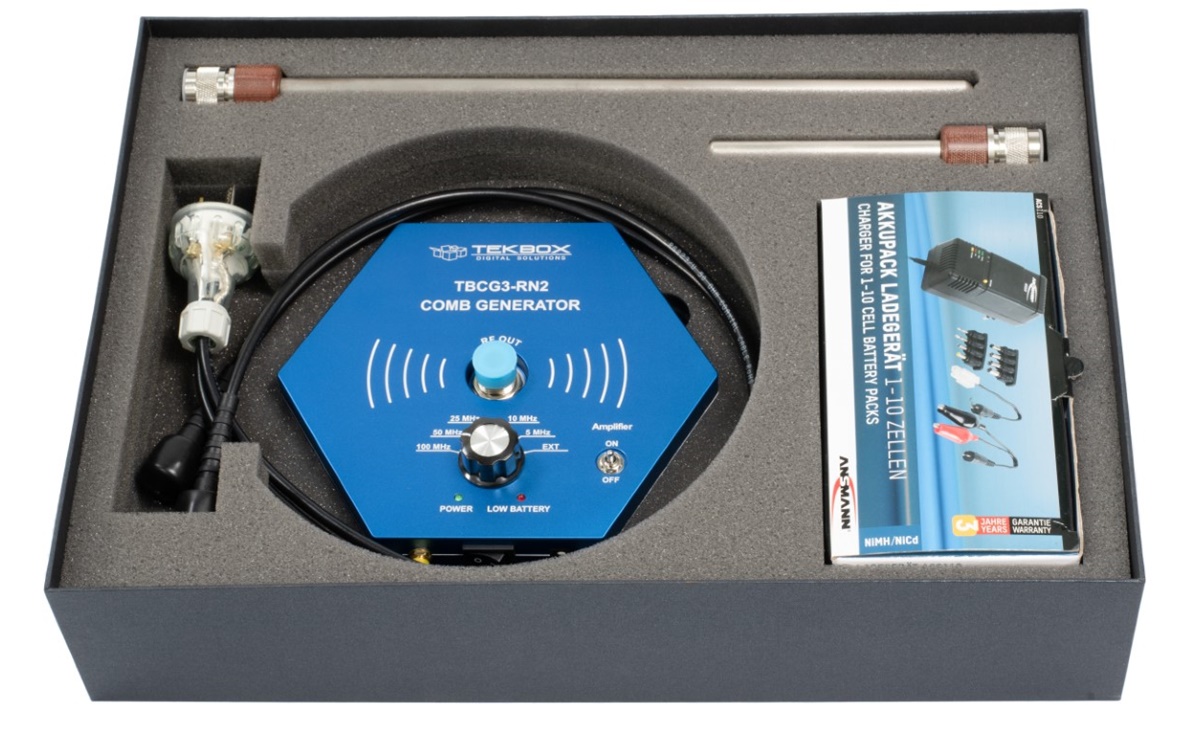

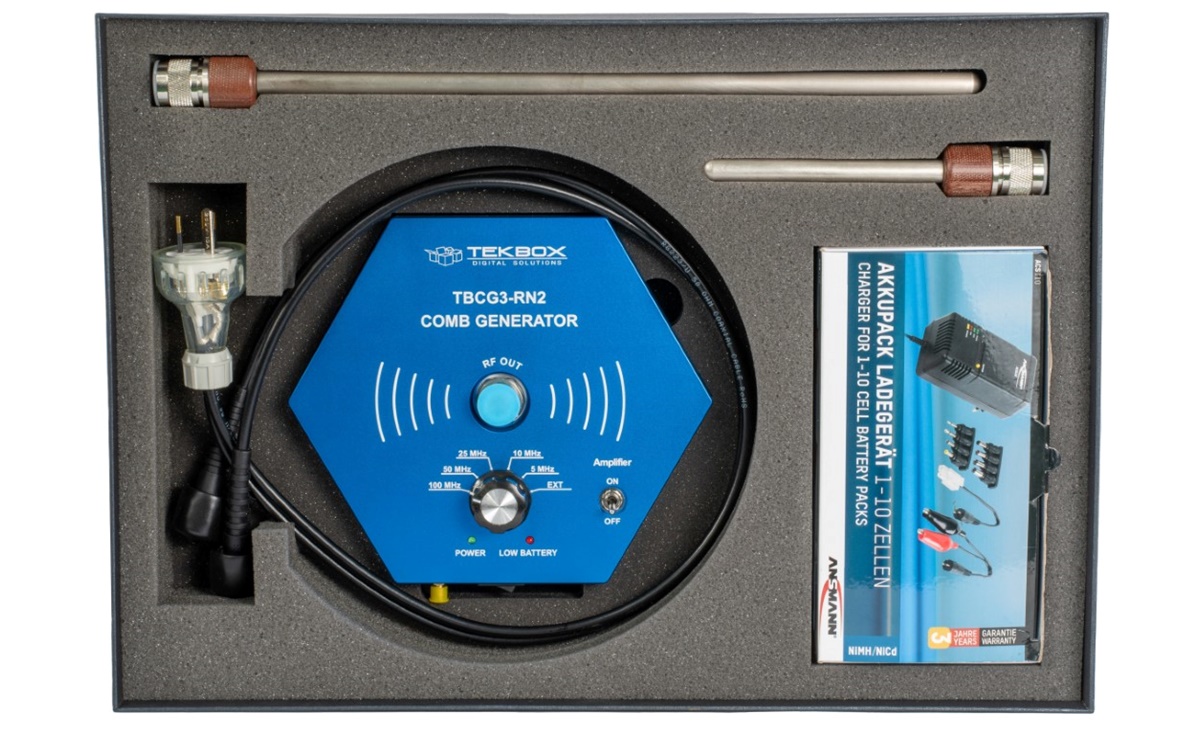

Typically, the TBCG3-RN2 is used in a shielding chamber, the diagrams of the radiated emission can be used as a reference to compare a DUD in a non-ideal environment with the comb generator at the same location. A rotary switch can be used to select between five fixed comb frequencies and an external comb frequency input in the range from 5 kHz to 200 MHz. can be selected. A switchable RF amplifier can amplify the output signal by 20 decibels (dB).
Model | TBCG3-RN2 | TBCG3-RN6 | TBCG3-CN |
---|---|---|---|
Characterized frequency range | 5 MHz - 3 GHz | 5 MHz - 6 GHz | 1.5 GHz |
Comb spectrum flatness | Up to 1.5 GHz, amplifier off: typ. 8 dB at RF connector | Up to 2 GHz: typ. 10 dB at RF connector | typ. 8 dB |
Up to 1.5 GHz, amplifier on: typ. 12 dB at RF connector | Up to 6 GHz: typ. 40 dB at RF connector | ||
Output impedance | 50 Ω | ||
Output power | -5 dBm max. at 100 MHz fcomb; decreasing 6 dB with every fcomb/2 | 0 dBm max. at 100 MHz fcomb; decreasing 6 dB with every fcomb/2 | 66 dBµV at 10 MHz fcomb; decreasing 6 dB with every fcomb/2 |
Amplitude stability | <0.2 dB; <0.1 dB after 15 minutes | <0.2 dB; <0.1 dB after 15 minutes | <0.2 dB; <0.1 dB after 15 minutes |
Aging | <0.5 dB over 12 months | <0.5 dB over 12 months | <0.5 dB over 12 months |
Output connector | N-female | N-female | N-female |
Selectable, fixed comb frequencies | 100 MHz, 50 MHz, 25 MHz, 10 MHz, 5 MHz | 100 MHz, 50 MHz, 25 MHz, 10 MHz, 5 MHz | 100 kHz, 500 kHz, 1 MHz, 5 MHz, 10 MHz |
Frequency stability | 50 ppm | 50 ppm | 50 ppm |
External excitation input | 5 kHz - 200 MHz at square input signal; 3.3 Vpp max., 100 kHz - 200 MHz at sinus input signal; 3.3 Vpp max. | 5 kHz - 200 MHz at square input signal; 3.3 Vpp max., 100 kHz - 200 MHz at sinus input signal; 3.3 Vpp max. | 5 kHz - 300 MHz at square input signal; 3.3 Vpp max., 100 kHz - 300 MHz at sinus input signal; 3.3 Vpp max. |
External input impedance | 50 Ω | 50 Ω | 50 Ω |
Input connector | SMA-female | SMA-female | SMA-female |
Antennas | 30 cm monopole for f<300 - 500 MHz; 10 cm monopole for f>300 - 500 MHz | 30 cm monopole for f<300 - 500 MHz; 10 cm monopole for f>300 - 500 MHz | |
Indicators | Power On LED, Low Battery LED | Power On LED, Low Battery LED | Power On LED, Low Battery LED |
Power supply | 6x AA NiMH (e.g. Varta Mignon 2700, not supplied); charger: External; Ansmann ACS310 | 4x AA NiMH (e.g. Varta Mignon 2700, not supplied); charger: External; Ansmann ACS310 | |
Operation time | Battery capacity/96 mA (ampl. off) or 181 mA (ampl. on) | Battery capacity/91 mA | Battery capacity/70 mA |
Temperature range | -10 - +45°C | -10 - +45°C | -10 - +45°C |
Dimensions | Diameter: 180 mm, height: 60 mm, weight: 1250 g | Diameter: 180 mm, height: 60 mm, weight: 1250 g | Diameter: 180 mm, height: 60 mm, weight: 1250 g |
Language: English
Version: V1.1
File Size: 1.84 MiB
Release Date: 19.06.2023
Manual for the TBCG3-RN2 Comb Generator
Language: English
File Size: 144.21 MiB
Release Date: 04.08.2023
Test data for the TBCG3-RN2 & RN6 Comb Generators
