Pico Technology's PT100 temperature probes provide a reliable and accurate solution for measuring temperature in a wide range of applications. They use the resistance thermometer principle, where the electrical resistance of a platinum resistor (PT100) increases linearly with increasing temperature. This provides accurate and reliable temperature measurement. An outstanding feature of PT100 temperature probes is their high accuracy. They offer a measurement accuracy of ±0.3°C (Class B), ±0.15°C (Class A) or even ±0.03°C (1/10 DIN), enabling precise detection of temperature changes. This is particularly important in applications where precise temperature control is required, such as laboratories, industrial processes, air conditioning and food processing. Pico Technology's PT100 temperature probes are also rugged and durable. They are made from high quality materials and have a protective sheath that protects them from external influences such as moisture, dust and mechanical stress. This makes them ideal for use in demanding environments. They also offer a fast response time to detect temperature changes in real time. This enables precise monitoring and control of temperature processes, helping to improve product quality, process efficiency and safety.

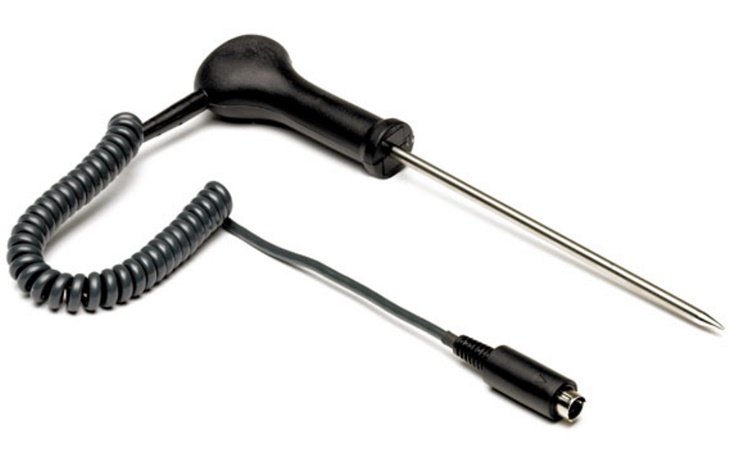

SE015 PT100 probe specifications | |
---|---|
Temperature range | –75 to +250 °C |
Accuracy | ±0.15 °C @ 0 °C Class A |
Metal housing | 120 mm x 3.3 mm |
Cable | 1 m |
Material | Stainless steel probe, PVC cable |
Connector | 4-pin mini-DIN |
Number of wires | 4 |
