Name: Rigol DL3041
Brand: Rigol
Availability: BackOrder
Rating: 4.88 (17 reviews)

Description

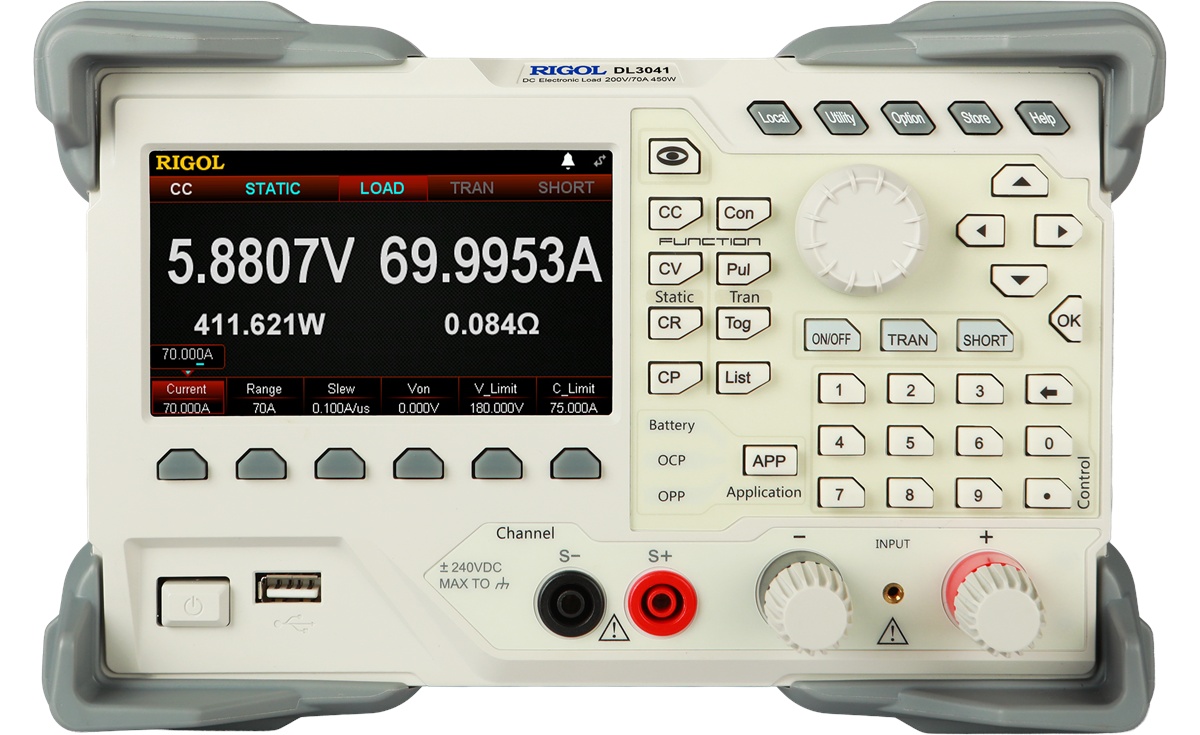

The Rigol DL3041 is a cost-effective programmable DC electronic load with performance specifications that rival any instrument in its class. With a user-friendly interface including graphical charting, the DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. Test power systems and batteries with configurable static, transient, and advanced application modes.

Models	DL3021	DL3021A	DL3031	DL3031A	DL3041
Max. Power	200W	200W	350W	350W	450W
Max. Voltage	150V	150V	150V	150V	200V
Max. Current	40A	40A	60A	60A	70A
Min. Voltage	40 A @ 1 V	40 A @ 1 V	60 A @ 1.3 V	60 A @ 1.3 V	70 A @ 1.5 V
Channels	1	1	1	1	1
Display	10.9 cm (4.3") TFT LCD	10.9 cm (4.3") TFT LCD	10.9 cm (4.3") TFT LCD	10.9 cm (4.3") TFT LCD	10.9 cm (4.3") TFT LCD

Available Options	DL3021	DL3021A	DL3031	DL3031A	DL3041
LAN Interface	Option		Option		Option
Digital I/O Interface	Option		Option		Option
High Resolution Readback	Option		Option		Option
High Frequency Option (dynamic mode)	15 kHz (30 kHz Option)	30 kHz	15 kHz (30 kHz Option)	30 kHz	30 kHz
High Slew Rate Option	Option		Option		Option

Special Features

Fast switching load levels up to 30 kHz

Transient test function enables the load to periodically switch between two set levels (Level A and Level B). It can be used to test the transient characteristics of the DUT. The highest frequency can be set to 15/30 kHz. Besides, in the guide interface, you can configure parameters in the parameter configuration list and view the configuration diagram at the left of the configuration list in the real-time manner.

Current rising speed (A/μs)

Current rising speed is defined as the speed of transition from one setting to another. You can set the actual transition time from one setting to another by changing the current rising speed. Adjustable current rising speed: 0.001 A/μs to 5 A/μs.

Powerful list operation function

You can generate complex sequences with the Rigol DL3021 by editing the setting value for each step, the dwell time, and slew rate (the slew rate can only be edited in CC mode) to meet the complex test demands.

Powerful waveform display function

The electronic load provides the waveform display function and supports the following operations for the waveform, such as pausing the waveform, enlarging and narrowing the waveform, and capturing the waveform. Therefore, you can dynamically observe the trend of parameters changes.
