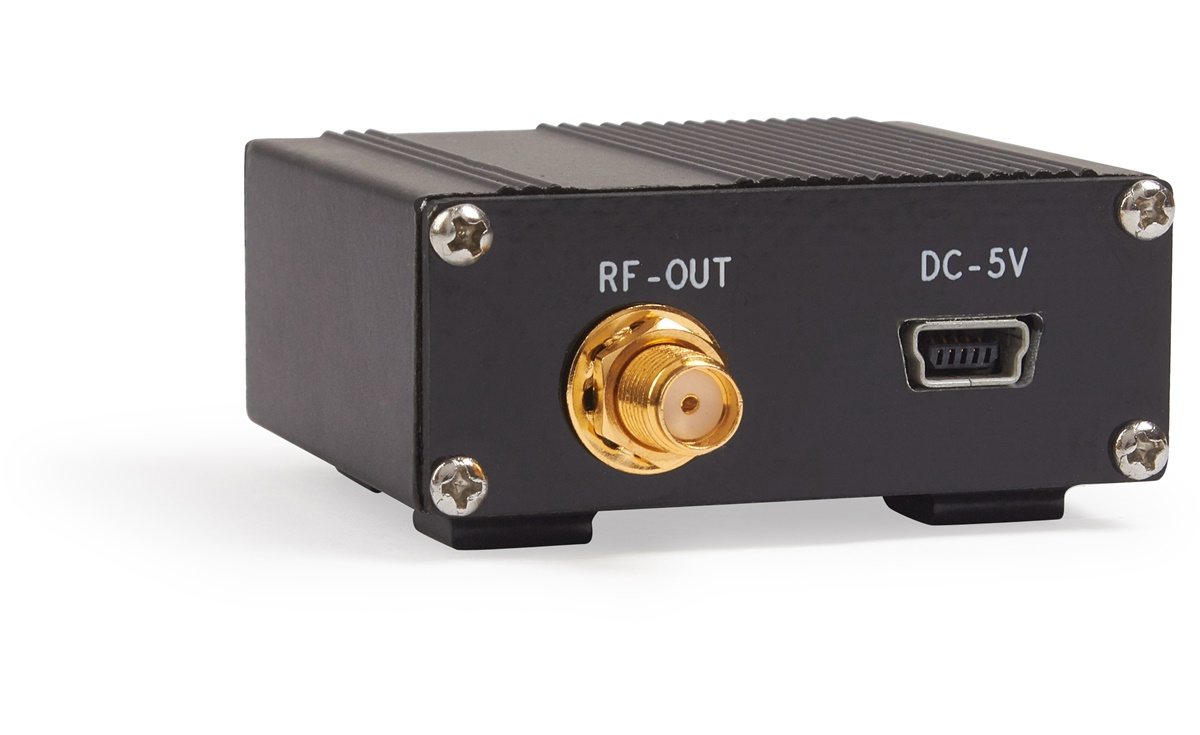

TekBox TBHDR1

High dynamic range, low-distortion 24dB preamplifier for frequencies from 30 kHz to 1.5 GHz. Ideal for EMC pre-compliance test applications (e.g. CISPR 25).

Delivery including coaxial cable with SMA plug to SMA plug (length: 0.25 m), coaxial cable with SMA plug to N plug (length: 0.75 m), coaxial adapter from SMA socket to N plug, USB cable, measurement protocol.

€ 246.33 incl. VAT

€ 207.- net


Availability:
Picture: n/a

This article is currently in stock and can be shipped immediately.

EAN: 8936120675243

2 years warranty

30 days trial period

Made in Vietnam

Share on facebook
Google +1
Twitter
  • Frequency range: 30 kHz..1.5 GHz
  • Gain: typ. 24 dB
  • Maximum input power: +10 dBm
  • Maximum output power: +19 dBm (80 mW)
  • IP3 (OIP3): +38 dBm
  • Noise: typ. 2.7 dB (@ 2 GHz)
  • Input + Output: SMA connectors (female)
  • Power supply: 5 V, 100 mA (Mini-USB-B)

Downloads

Datasheet

Adobe PDF

TBHDR1-Datasheet

Language: English
File Size: 2.04 MiB
Release Date: 27.12.2018 11:25:48
