Micsig ACP1000

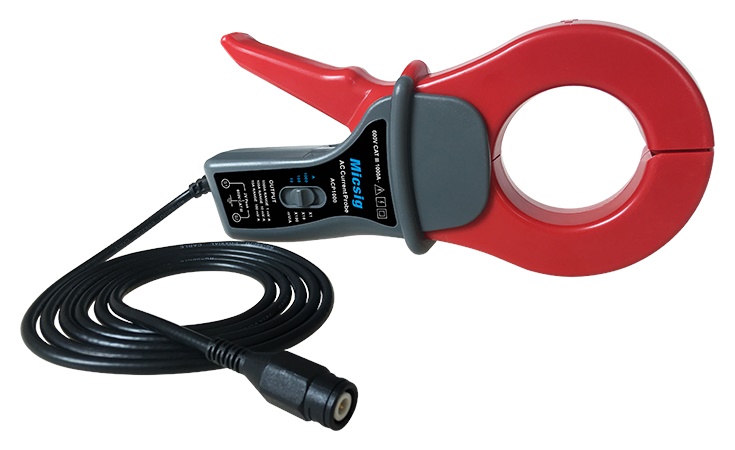

Picture: Micsig ACP1000
Be the first to write a review

The ACP1000 AC current probe is clamp-on core design. It tests the circuit current safely and directly without disconnecting the circuit. This method permits a safe,easy and portable current measurement.

  • Current range: 0.1 A-1000 A
  • Maximum working current: 2000 A
  • Output signal: mV/A
  • Operating frequency: 10 Hz–100 kHz
  • Maximum accuracy: 1 %
1 year warranty

Nr: Micsig ACP1000

with FREE shipping within the EU!
Shipping costs outside EU
in Stock
€ 229.- net (VAT Details)
€ 272.51 incl. 19% VAT

The Micsig ACP 1000 is a current clamp for the portable and tablet oscilloscopes of the Micsig ATO, STO and TO series as well as for other oscilloscopes with BNC connection. With an optional BNC banana adapter (not included), the probe can also be used with multimeters.

AC clamps can measure current signals with complex waveforms, e.g. transient start-up currents from power devices, sinusoidal currents from three-phase currents of three-phase power supplies, harmonic components of measured currents, current measurement of IGBTs and MOSFETs, etc.

Model ACP1000
Rated output 100 mV/A, 10 mV/A, 1 mV/A
Frequency 10-100 kHz
Secondary burden ≥100 kΩ
Accuracy class 3% ±10 mV/2% ±5 mV/1% ±1 mV
Test current range 0.1-1000 A
Operating frequency 10 Hz-100 kHz
Max. working current 2000 A (2 s)
Output signal mV/A
Highes precision 1%
Operating temperature -15-+75°C
Safety class CAT III 600 V
Max. conductor size 52 mm
Dimensions (mm) 111 x 216 x 45
Output cable 1.5 m insulated BNC/coax-cable can connect directly to an oscilloscope. Can also be used with multimeters with optional BNC/banana adaptor

Downloads

Manual

Adobe PDF

ACP1000 Manual

Language: English
Version: V1
File Size: 693.14 KiB
Release Date: 23.11.2022
