Micsig MHO3-5004

Be the first to write a review

High resolution 4-channel oscilloscope with 500 MHz bandwidth, 3 GSa/s sampling rate, 360 Mpts memory depth and 12-bit resolution; ultra-slim 3.58 cm housing supports wall/arm mounting; 14-inch 1920 x 1200 pixel touch screen for unrivalled waveform display. Serial decoders for CAN, CAN FD, LIN, SPI, I2C, UART, 1553B, 429 are already included!

3 years warranty

No.: MHO 3-5004

with FREE shipping within the EU!
Shipping costs outside EU

in Stock

€ 3,999.- net (VAT Details)

€ 4,758.81 incl. 19% VAT

Description

The high-resolution 12-bit oscilloscopes of the MHO 3 series offer 4 analogue channels, 250, 350 or 500 MHz bandwidth, a 3 GSa/s sampling rate and a memory depth of 360 Mpts.

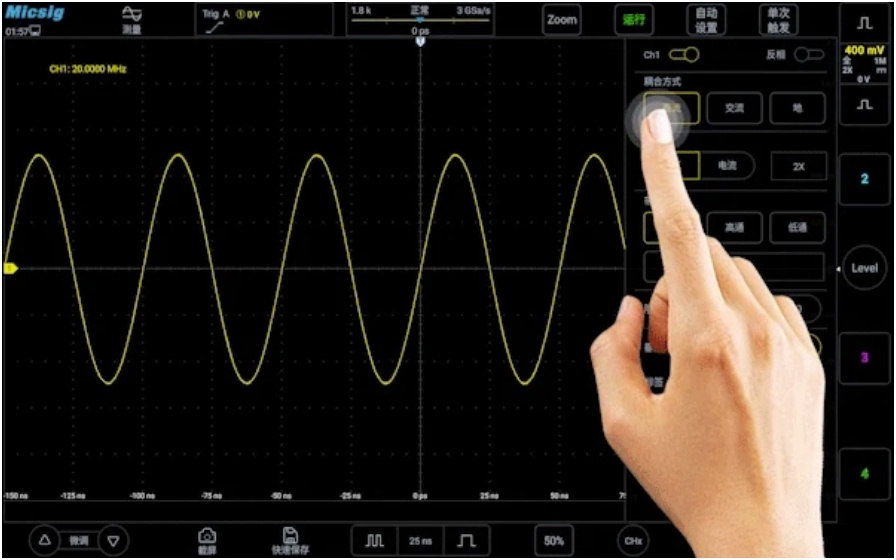

The Micsig MHO3-5004 has a 14 inch integrated touchscreen display with 1,920 x 1,200 pixels, combined with Micsig's 10+ years of experience in touch control technology the MHO series takes the touch experience to a new level.

The Micsig MHO3-5004 comes in a compact format and features comprehensive measurement and maths operation functions and supports triggering and decoding.

It is also equipped with digital hardware filter modules and other functions.

Specifications	MHO3-2504	MHO3-3504	MHO3-5004
Channels	4	4	4
Bandwidth	250 MHz	350 MHz	500 MHz
Vertical resolution	12 bit	12 bit	12 bit
Real-time sampling rate	3 GSa/s	3 GSa/s	3 GSa/s
Max. waveform capture rate	230,000 wfms/s	230,000 wfms/s	230,000 wfms/s
Memory Depth	360 Mpts	360 Mpts	360 Mpts
Std. bus decoding	RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B	RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B	RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B
Interfaces	USB 3.0 Host, USB Typ C, LAN, HDMI, Trigger out	USB 3.0 Host, USB Typ C, LAN, HDMI, Trigger out	USB 3.0 Host, USB Typ C, LAN, HDMI, Trigger out
Display	14" full touch display, 1920 x 1200 resolution	14" full touch display, 1920 x 1200 resolution	14" full touch display, 1920 x 1200 resolution
Dimensions / Net Weight	400 x 280 x 35.8 mm / 4.3kg	400 x 280 x 35.8 mm / 4.3kg	400 x 280 x 35.8 mm / 4.3kg

12-bit Vertical Resolution

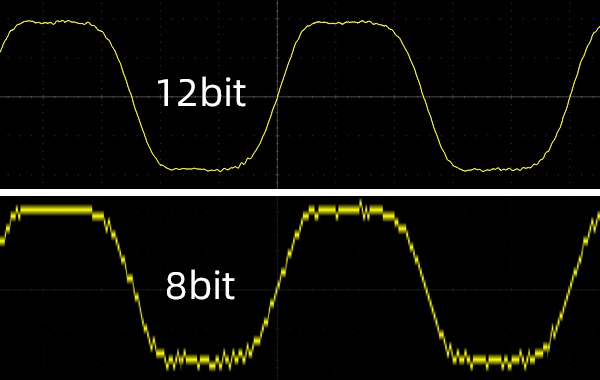

The MHO 3 series has 12-bit high-resolution ADC with a quantization level of up to 4096, which is 16 times that of traditional 8-bit ADC, helping users to observe waveform details more comprehensively and clearly.

Most friendly UI

Equipped with instrument-dedicated SigTestUI™ operating system, and accumulation of 10 years of UI design experience, the MHO 3 series evolved to simplify all user interfaces, newer engineers can quickly learn to use in 5 minutes.

Complete connectivity

Original Mic-OPI™ probe interface, automatically identifies passive probe attenuation, one-click to proceed auto-calibration; standard with BNC adapter, also has USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger out etc.

Low noise floor

The noise of MHO 3 series is less than 80 μVrms under 500 MHz full bandwidth, allow engineers accurately capture weak but important signals during daily circuit debugging.

Space saving and universally mountable

Can be mounted with standard wall brackets or table stands thanks to VESA, takes up very little space on the table due to its shallow depth.

Deep memory and segmented storage acquisition

Up to 360Mpts memory depth delivers excellent signal fidelity, segmented storage divides the limited storage space into multiple small segments, and collects multiple trigger events into one storage space, effectively captures target signals multiple times over a long period of time and play back for further analysis.

Comprehensive selection of probes

In addition to the standard passive probes, the MHO 3 series supports connection to all Micsig probes: optical-fiber isolated probe, high-voltage differential probes, and AC/DC current probes, such combination can maximize the performance of the probe and oscilloscope.

Hardware digital filter

Hardware digital filtering can selectively pass or block signal components within a specific frequency range, very useful for analyzing specific frequency bands of a signal or observing changes in specific frequency components.

Supports remote control and HDMI

The MHO 3 series support PC and smartphone remote control, also have HDMI port for demonstration purpose. Support SCPI programming commands control, helping engineers achieve automated measurements more flexibly and efficiently.
