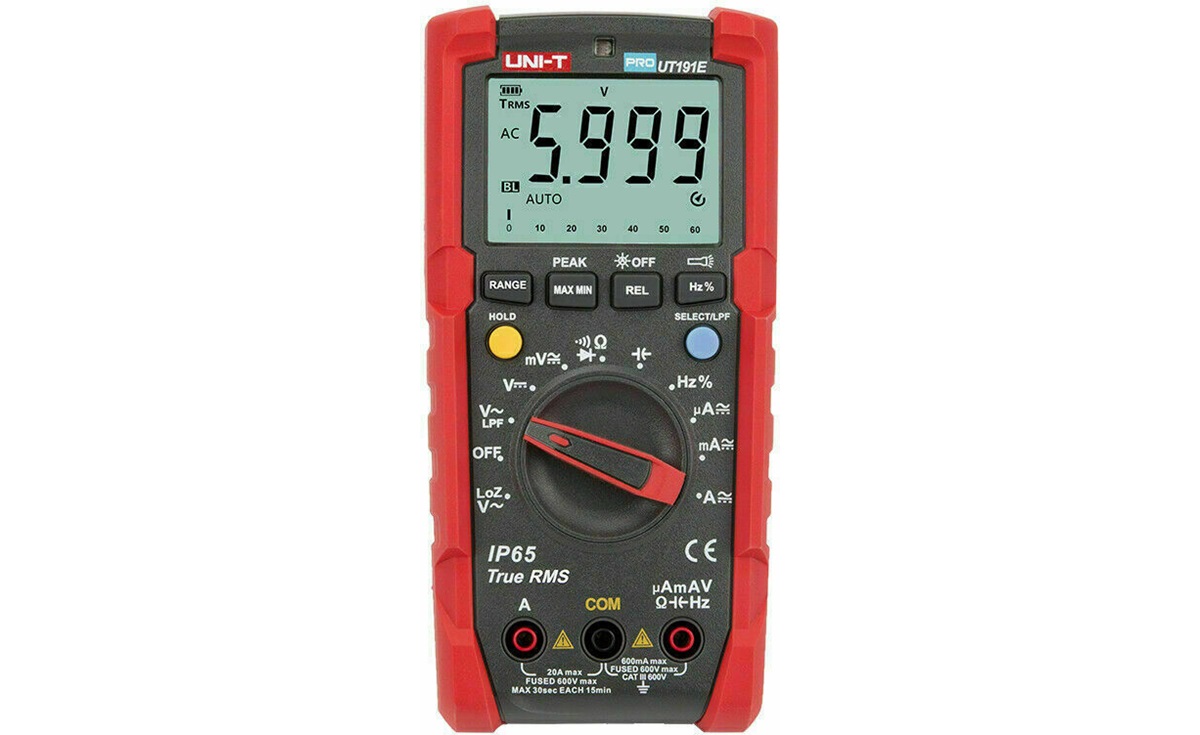

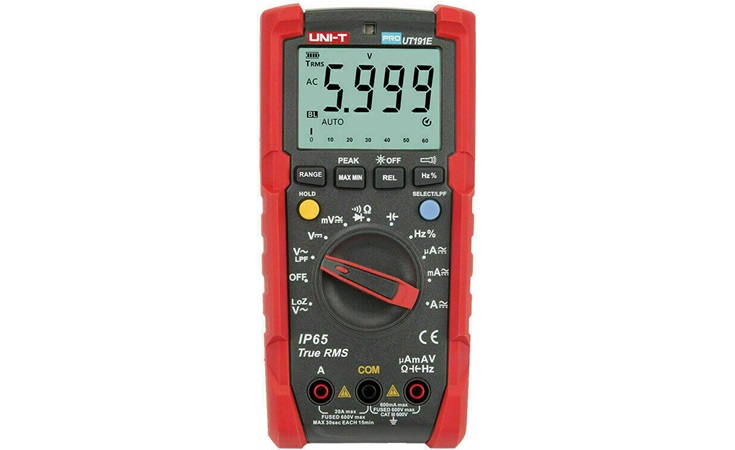

The UT191 series are industrial digital multimeters with IP65 and 2m drop proof. It can be used in mines, oilfields and other harsh environments. The UNI-T UT191E can be used to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair. It is exquisitely designed and easy to operate.
- Measurement setting saved after power reset
- IP65, 2m drop proof
- Diode/Continunity test
- Auto/Manual range
- True RMS/Peak value measurement
- Auto backlight/Flashlight
- Auto power off
- Low battery indication
- Data hold/MAX/MIN
- Function selection (SELECT)
- 20A current measurement
- LoZ AC measurement
- Precise temperature measurement with resolution of 0.1℃ (UT191T)
| Specifications | Range | UT191E | UT191T |
|---|---|---|---|
| max. Resolution | 3 5/6 Digits | 3 5/6 Digits | |
| Display count | 6.000 | 6.000 | |
| True RMS | |||
| DC voltage | 600V | ±(0.2%+5) | ±(0.2%+5) |
| AC voltage | 600V | ±(1%+3) | ±(1%+5) |
| DC current | 20A | ±(0.8%+3) | ±(0.8%+3) |
| AC current | 20A | ±(1%+3) | ±(1%+3) |
| Resistance | 60MΩ | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) | ±(3%+5) |
| Frequency | 10Hz~1MHz | ±(0.1%+4) | ±(0.1%+4) |
| Temperature | -40 - +400 Celsius | ±(1%+20) | |
| Category ratings | CAT III 600V, IP65 | CAT III 600V, IP65 |
You will find the specifications of the UT191 here.
