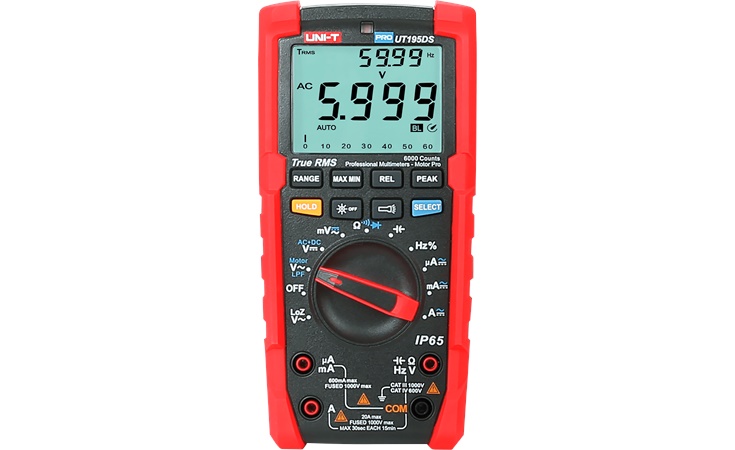

DeutschUT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. It can be applied in mines, oilfields and other harsh environments. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution and repair etc. It is exquisitely designed and easy to operate.
| Specifications | UT195DS | UT195E |
|---|---|---|
| DC voltage range | 600mV ~ 1000V - ±(0.5%+3) | 600mV ~ 1000V - ±(0.5%+3) |
| AC + DC | 6.000V ~ 600V - ±(1.5%+4) | 6.000V ~ 600V - ±(1.5%+4) |
| AC voltage | 600mV ~ 750V - ±(0.7%+3) | 600mV ~ 750V - ±(0.7%+3) |
| LoZ ACV | 600V - ±(2.0%+3) | 600V - ±(2.0%+3) |
| DC current (A) | 600.0μA ~ 20A - ±(0.8%+3) | 600.0μA ~ 20A - ±(0.8%+3) |
| AC current (A) | 600.0μA ~ 20A - ±(1.0%+3) | 600.0μA ~ 20A - ±(1.0%+3) |
| Resistance (Ω) | 600.0Ω ~ 60.00MΩ - ±(0.8%+2) | 600.0Ω ~ 60.00MΩ - ±(0.8%+2) |
| Capacitance | 6.000nF ~ 60.00mF - ±(3%+5) | 6.000nF ~ 60.00mF - ±(3%+5) |
| Frequency | 60.00Hz ~ 40.00MHz - ±(0.1%+4) | 60.00Hz ~ 40.00MHz - ±(0.1%+4) |
| Duty ratio | 0.1% ~ 99.9% - ±(2.0%+5) | 0.1% ~ 99.9% - ±(2.0%+5) |
| Peak hold | 250μs | |
| Dual display |
You will find the specifications of the UNI-T 195 series here.
