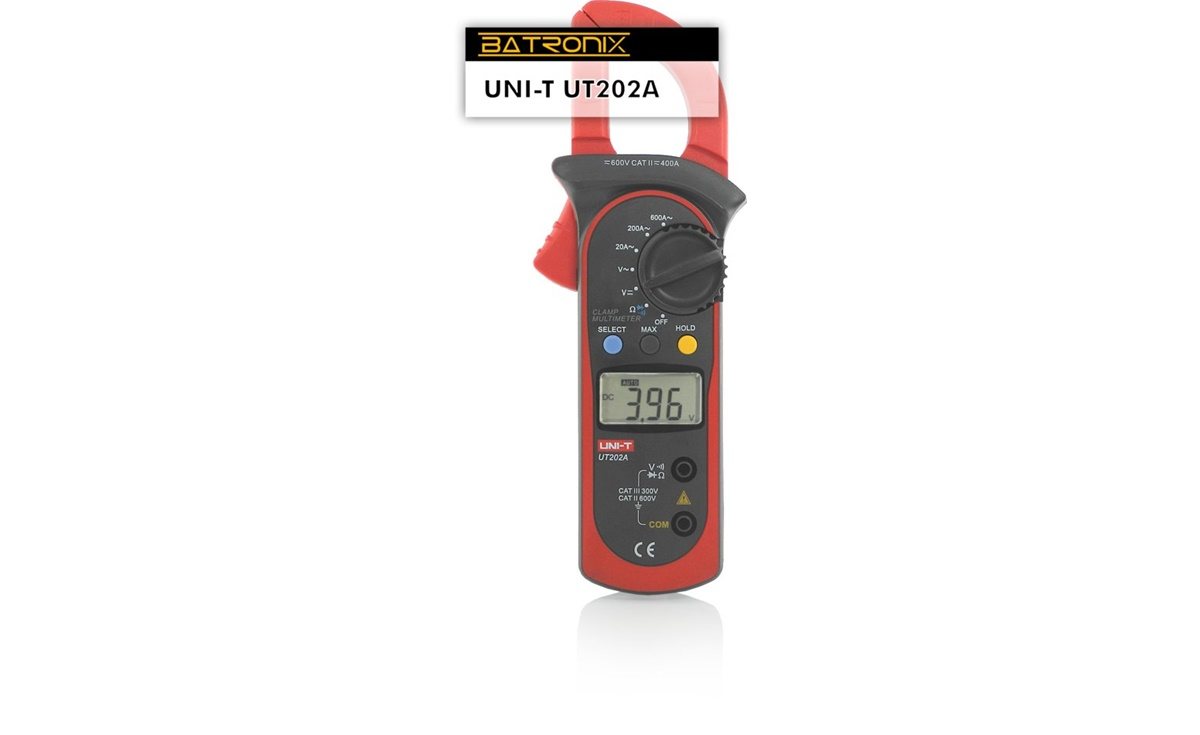

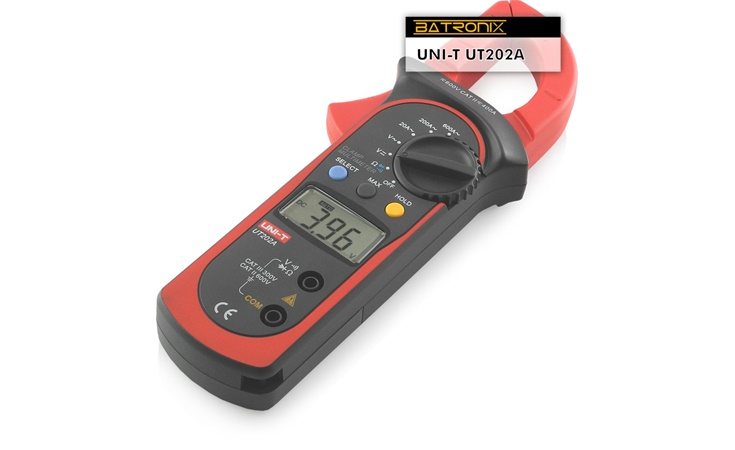

The UNI-T digital clamp multimeter UT202A is a 3½ digits instrument with steady operations, fashionable structure and highly reliable measuring. The meter uses a large scale of integrated circuit with double integrated A/D converter as its core, and contains a full range overload protection.
Besides the quality, the measurement devices distinguish by their ease of use, good legibility of the display and sophisticated measurement functions. UNI-T digital multimeters also fulfill the important details of everyday measuring, such as the almost immediate response of the continuity test, reliable measurement results, and conservative use of the battery. If you have ever worked with a digital multimeter from one of the various cheap manufacturers, you are familiar with problems such as continuity tests taking several seconds, noticeable deviation of measurement results if the battery is low, and rapid battery drain...
| Measurement | Range | Accuracy | Resolution |
|---|---|---|---|
| DC Voltage (DCV) | 200.0 mV 2.000 V 20.00 V 200.0 V 600 V | ±(0.8%+3 dig.) ±(0.8%+1 dig.) ±(0.8%+1 dig.) ±(0.8%+1 dig.) ±(1.0%+3 dig.) | 0.1 mV 1 mV 10 mV 100 mV 1 V |
| AC Voltage (ACV) 40 Hz - 1 kHz | 2.000 V 20.00 V 200.0 V 600 V | ±(1.2%+5 dig.) ±(1.2%+5 dig.) ±(1.2%+5 dig.) ±(1.5%+5 dig.) | 1 mV 10 mV 100 mV 1 V |
| AC Current (ACA) 50 Hz - 60 Hz | 20.00 A 200.0 A 600 A | ±(2.0%+5 dig.) ±(1.5%+5 dig.) ±(2.0%+8 dig.) | 10 mA 100 mA 1 A |
| Resistance | 200.0 Ω 2.000 kΩ 20.00 kΩ 200.0 kΩ 2.000 MΩ 20.00 MΩ | ±(1.2%+5 dig.) ±(1.0%+2 dig.) ±(1.0%+2 dig.) ±(1.0%+2 dig.) ±(1.2%+2 dig.) ±(1.5%+2 dig.) | 0.1 Ω 1 Ω 10 Ω 100 Ω 1 kΩ 10 kΩ |
| Function | Digital Multimeter UT202A |
|---|---|
| RS232 Interface | |
| True RMS (TRMS) | |
| Auto Range | |
| Manual Range | |
| Data Logging | |
| Data Recall | |
| Diode test | |
| Transistor test | |
| Continuity test | (fast reaction time below 0.3 seconds) |
| Low battery indication | |
| Relatively measuring | |
| Data hold | |
| Min-Max / Peak hold | (Max value only) |
| Auto power-off | |
| Overload protection | |
| Shockproof Protection | |
| Backlight | |
| "Analogue" Bargraph | |
| Max. Reading | 1999 (3½digits) |
| LCD Size | 35 mm x 18 mm |
| Sampling rate | Approx. 4 times / second |
| Details | Digital Multimeter UT202A |
|---|---|
| Battery | 9 V Block Battery (included in delivery) |
| Safety standard | CAT II 600 V CAT III 300 V |
| Dimensions | 21 cm × 7.5 cm × 3 cm (8.27" × 2.95" × 1.18") |
| Weight without accessories / packaging | 240 g (with battery) (0.53 lb) |
| Weight with accessories / packaging | 495 g (1.09 lbs) |
| Warranty | 2 Years |
