Micsig MHO68-500

Name: Micsig MHO68-500
Brand: Micsig
Availability: BackOrder

Series MHO6 Oscilloscope by Micsig, Rear view

Series MHO6 Oscilloscope by Micsig, Side view

Be the first to write a review

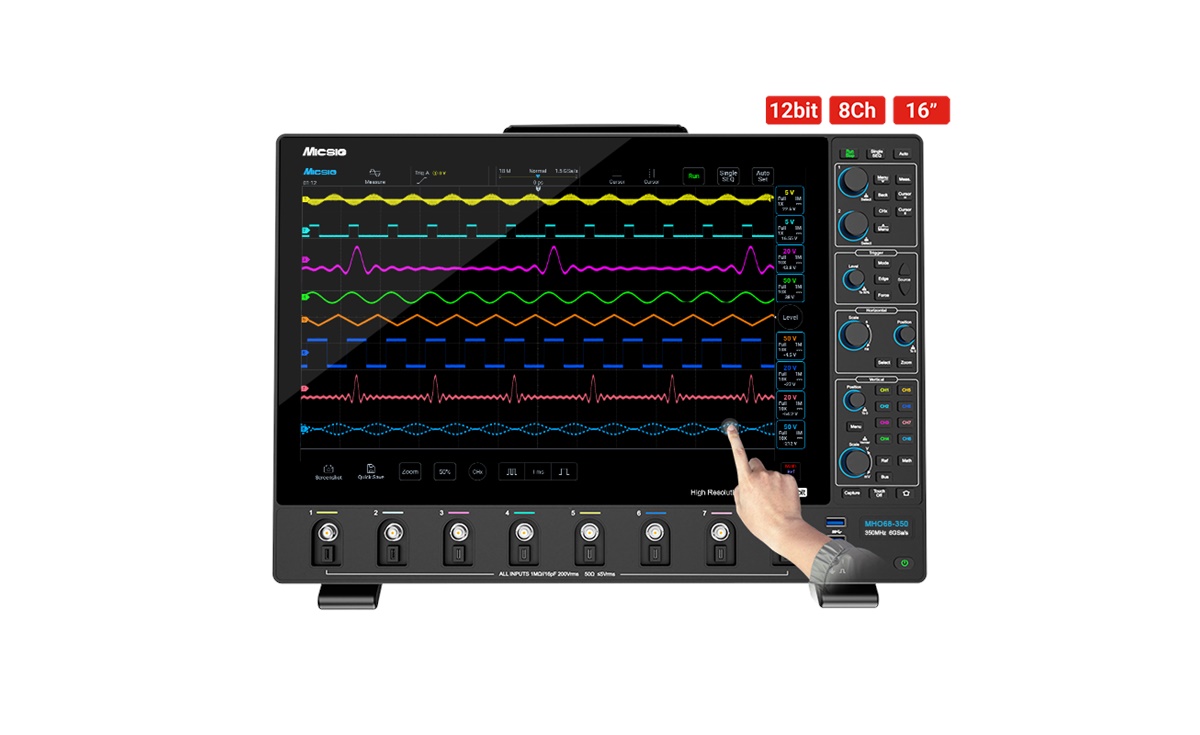

High resolution 8-channel oscilloscope with 500 MHz bandwidth, 6 GSa/s sampling rate, 1,800 Mpts memory depth and 12-bit resolution; ultra-slim 3.52 cm housing supports wall/arm mounting; 16-inch 1920 x 1200 pixel touch screen for unrivalled waveform display. Serial decoders for CAN, CAN FD, LIN, SPI, I2C, UART, 1553B, 429 are already included. ARINC-429, MIL-STD1553B optional.

3 years warranty

No.: MHO68-500

with FREE shipping within the EU!
Shipping costs outside EU

In 11-30 days after order in stock.

12,999.- € net (VAT Details)

15,468.81 € incl. 19% VAT

Description

The MHO high-resolution oscilloscope 6 series features a bandwidth of up to 1 GHz, 6 GSa/s sampling rate, 8 analog channels, a storage depth of 1,800 million points (Mpts), and a 12-bit vertical resolution. Its high bandwidth and 8-channel capability are suitable for faster circuit analysis and more synchronized signal testing. Its ultra-thin design of 3.52 cm can save a lot of your precious desk space; a 16-inch touch screen with a resolution of 1920*1200 provides you with a super clear waveform display for a more comfortable visual experience.

Model	MHO68-1000	MHO68-500	MHO68-350
Bandwidth	1 GHz	500 MHz	350 MHz
Rise Time	≤0.4 ns	≤0.7 ns	≤1 ns
Analog channels	8	8	8
Real-time sampling rate	6 GSa/s	6 GSa/s	6 GSa/s
Memory Depth	1,800 Mpts	1,800 Mpts	1,800 Mpts
Vertical Resolution	12 Bit	12 Bit	12 Bit
Input impedance	50 Ω / 1 MΩ	50 Ω / 1 MΩ	50 Ω / 1 MΩ
Display	16" touch-display, 1,920 x 1,200 pixel	16" touch-display, 1,920 x 1,200 pixel	16" touch-display, 1,920 x 1,200 pixel

12-bit Vertical Resolution

The MHO 6 series oscilloscopes utilize high-precision 12-bit high-speed ADC technology with a sampling rate up to 6Gsa/s. Combined with meticulous circuit design and advanced signal processing techniques, they achieve comprehensive capture and stable analysis of signals ranging from weak to high-speed, providing solid assurance for high-precision testing in fields such as scientific research, production, and education. Their maximum analog bandwidth reaches 1GHz, easily meeting the testing challenges of the most cutting-edge devices in the field of power electronics.

Most friendly UI

Equipped with instrument-dedicated SigTestUI™ operating system, and accumulation of 10 years of UI design experience, the MHO 6 series evolved to simplify all user interfaces, newer engineers can quickly learn to use in 5 minutes.

Complete connectivity

Original Mic-OPI™ probe interface, automatically identifies passive probe attenuation, one-click to proceed auto-calibration; standard with BNC adapter, also has USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger out etc.

Multi-Channel Parallelism

Equipped with 8 independent analog channels, the MHO 6 series oscilloscopes enable engineers to simultaneously observe and analyze up to 8 test points, greatly enhancing testing efficiency and accuracy. This provides strong support for timing analysis, troubleshooting, and performance optimization of complex systems.

Space saving and universally mountable

Can be mounted with standard wall brackets or table stands thanks to VESA, takes up very little space on the table due to its shallow depth.

Deep memory and segmented storage acquisition

Up to 1,800 Mpts memory depth delivers excellent signal fidelity, segmented storage divides the limited storage space into multiple small segments, and collects multiple trigger events into one storage space, effectively captures target signals multiple times over a long period of time and play back for further analysis.

Comprehensive selection of probes

Based on Micsig's comprehensive probe product line, the MHO6 series oscilloscopes can be paired with SigOFIT Optical-fiber Isolated Probe, high-voltage differential probes, Rogowski coils, and high-frequency AC/DC current probes, among others. Each of these probes has its own unique features, capable of flexibly adapting to various testing scenarios, providing a complete and reliable solution for power electronics testing.

Supports remote control and HDMI

The MHO 6 series support PC and smartphone remote control, also have HDMI port for demonstration purpose. Support SCPI programming commands control, helping engineers achieve automated measurements more flexibly and efficiently.
