Name: Rigol DHO814
Brand: Rigol
Availability: BackOrder
Rating: 4.89 (18 reviews)

Description

The DHO800 series is RIGOL's new launched high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise.

The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands.

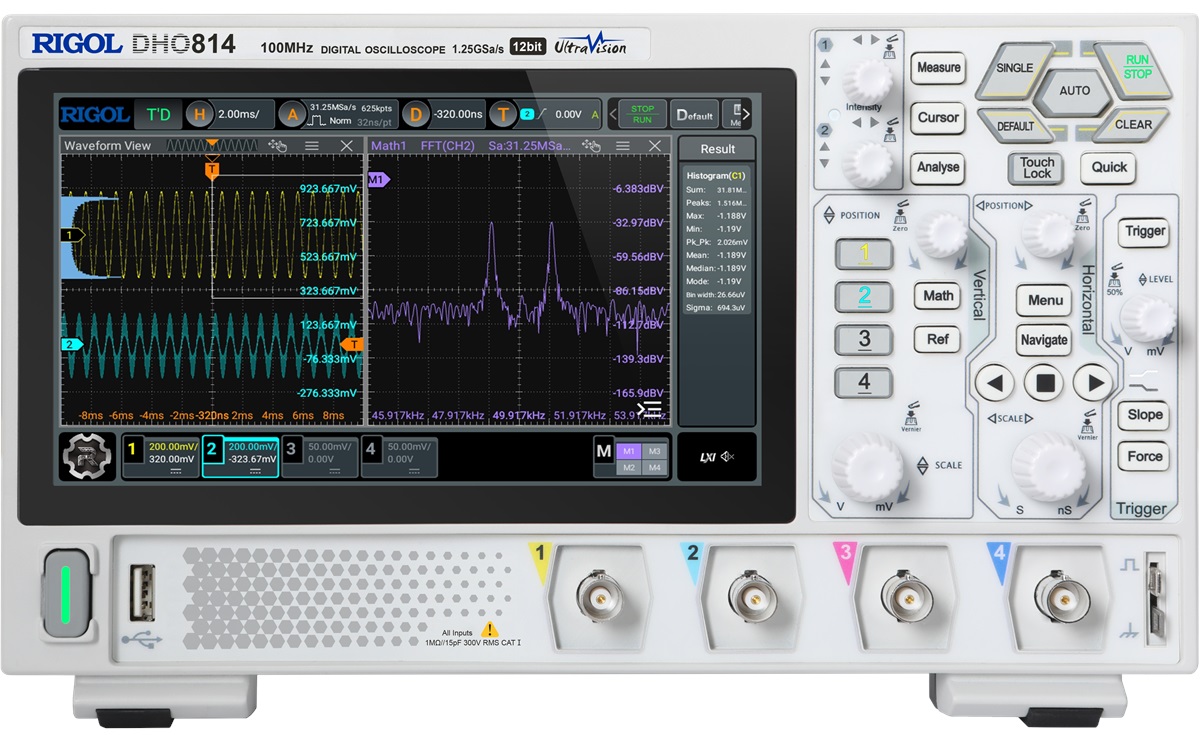

The Rigol DHO814 is equipped with a clear 7" touch display with 1024*600 pixel.

Features	DHO800
Channel	2 - 4
Bandwidth	70 - 100 MHz
Sample rate	1 channel with 1.25 GSa/s 2 channel with each 625 MSa/s 4 channel with each 312.5 MSa/s
Waveform capture rate	1.000.000 wfms/s (UltraAcquire Mode)
Memory depth (standard)	1 channel with 25 Mpts 2 channel with each 10 Mpts 4 channel with each 1 Mpts

DHO800	Bandwidth	Channel	Rise time (typ.)
DHO802	70 MHz	2	≤ 5 ns
DHO804	70 MHz	4	≤ 5 ns
DHO812	100 MHz	2	≤ 3.5 ns
DHO814	100 MHz	4	≤ 3.5 ns

You will find the specifications of the DHO800 series here.

12-bit ADC

High resolution & offset. Low noise signal path. More accurate measurements.

12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

7-inch HD Touchscreen

7-inch high-definition touchscreen for more convenient human-machine interaction.

1.000.000 wfms/s acquisition rate

Find signal anomalies quickly. Smooth workflows – even with measurements, spectrum, math or long acquisitions.

1.0 M wfms/s
Acquire, process & display signals with unrivaled speed
Detect signal faults & anomalies quickly
Increase your statistical confidence

Support Type-C Power

Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.

Sleek Design

Sleek Design The DHO800 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.

Versatile Interfaces

The DHO800 series comes standard with USB, LAN, and HDMI output interfaces, supporting remote control and conference presentations, making collaboration more convenient.
