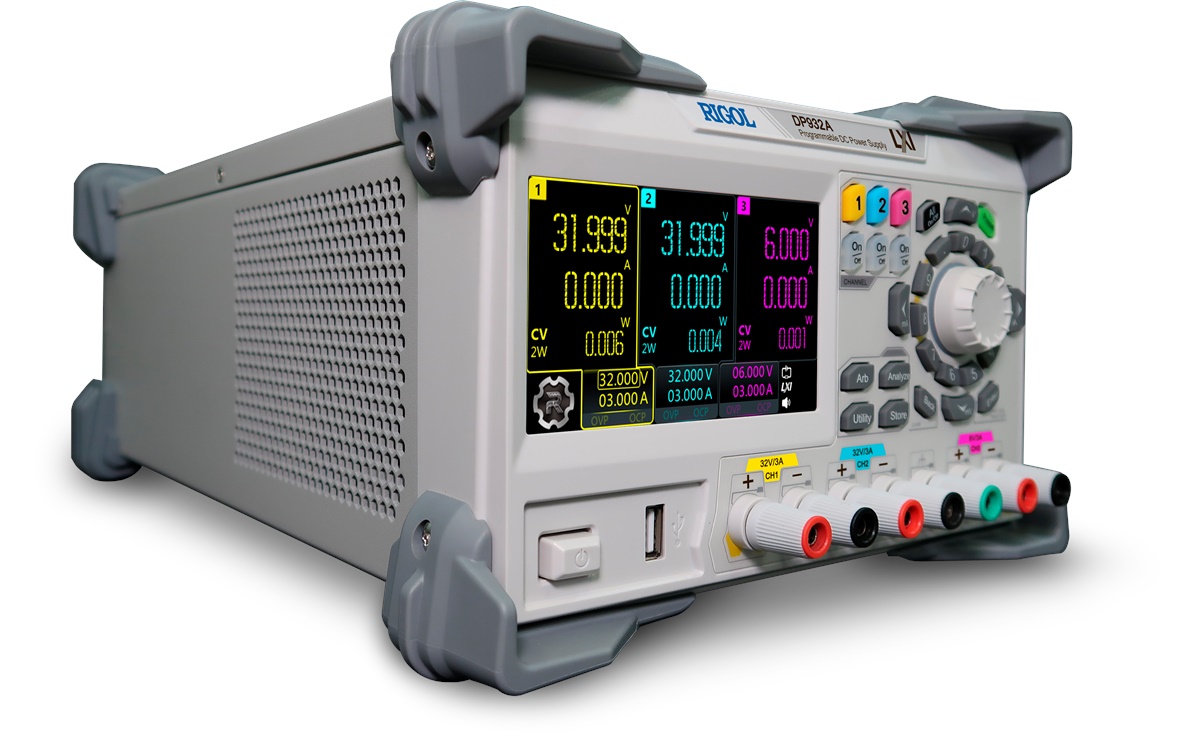

The Rigol DP900 are programmable laboratory power supplies with 3 electrically isolated independent channels with a maximum total power of up to 210 W.

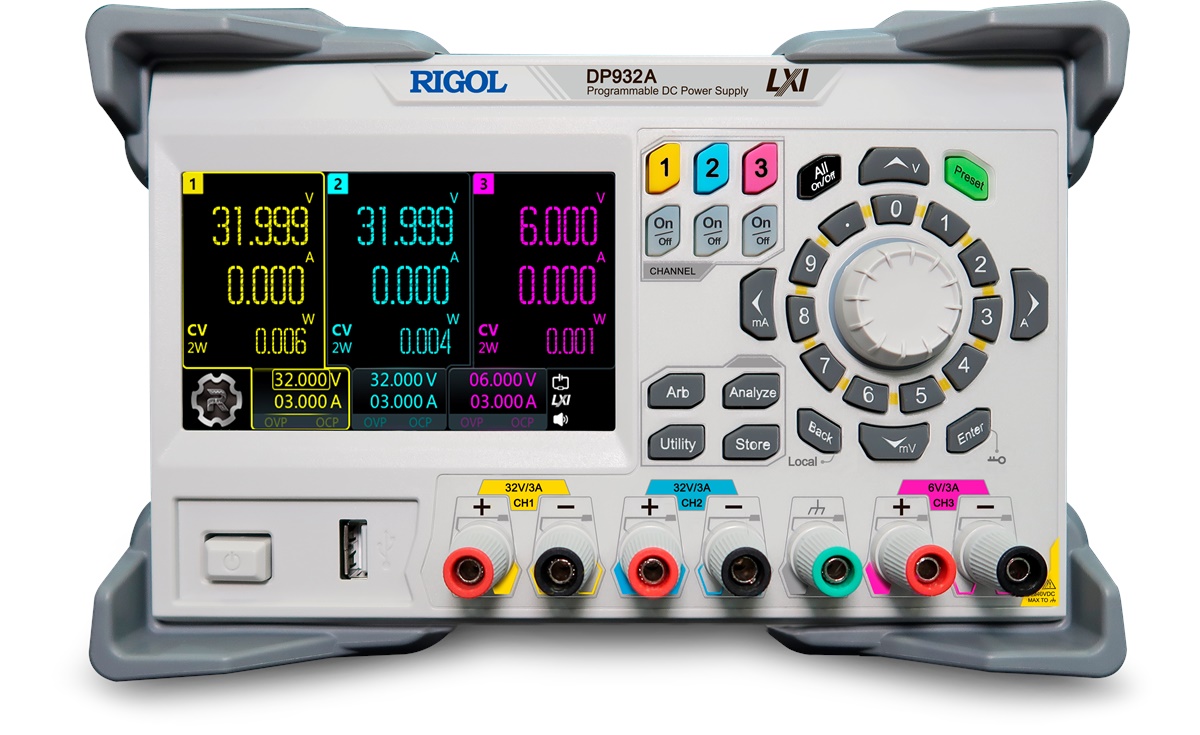

Like all Rigol devices, the Rigol DP932A features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.
The Rigol DP932A features a relative large (10.92 cm / 4.3") and easy to read LCD color touch screen. In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves.
The Rigol DP932U has front-panel safety sockets available.
| Quick comparision | DP932A | DP932U | DP932E |
|---|---|---|---|
| Voltage / Current CH1 | 0 - +32 V / 0 - 3 A | 0 - +32 V / 0 - 3 A | 0 - +30 V / 0 - 3 A |
| Voltage / Current CH2 | 0 - +32 V / 0 - 3 A | 0 - +32 V / 0 - 3 A | 0 - +30 V / 0 - 3 A |
| Voltage / Current CH3 | 0 - +6 V / 0 - 3 A | 0 - +6 V / 0 - 3 A | 0 - +6 V / 0 - 3 A |
| Model | Standard | University | E-commerce |
| Display resolution | 1 mV/1 mA | 10 mV/1 mA (upgradable) | 10 mV/10 mA (upgradable) |
| Minimum dwell time between 2 arbitrary points | 100 ms | 1000 ms (upgradable) | Not available |
| Communication interfaces (standard) | USB Device, USB Host, LAN, Digital IO | USB Device, USB Host, LAN Digital IO (optional) | USB Device, USB Host, LAN |
| Safety sockets at front panel |
You will find the specifications of the DP900 series here.
Downloads
Datasheet
DP900 Data sheet
Language: English
File Size: 10.19 MiB
Release Date: 04.08.2022
Guide
DP900 Programming guide
Language: English
File Size: 2.56 MiB
Release Date: 04.08.2022
DP900 Quick guide
Language: English
File Size: 2.56 MiB
Release Date: 04.08.2022
Manual
DP900 Manual
Language: English
File Size: 3.80 MiB
Release Date: 04.12.2022
Software
Rigol Ultra Sigma Software Download
Language: English
Version: 00.01.06.01
File Size: 521.18 MiB
Release Date: 22.08.2019
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)
