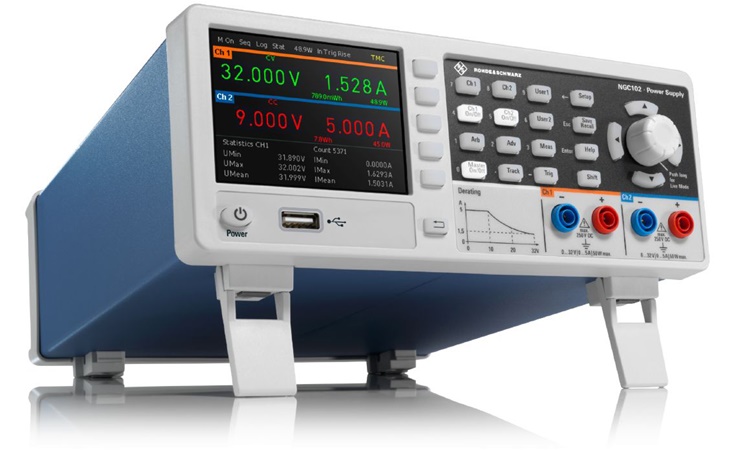

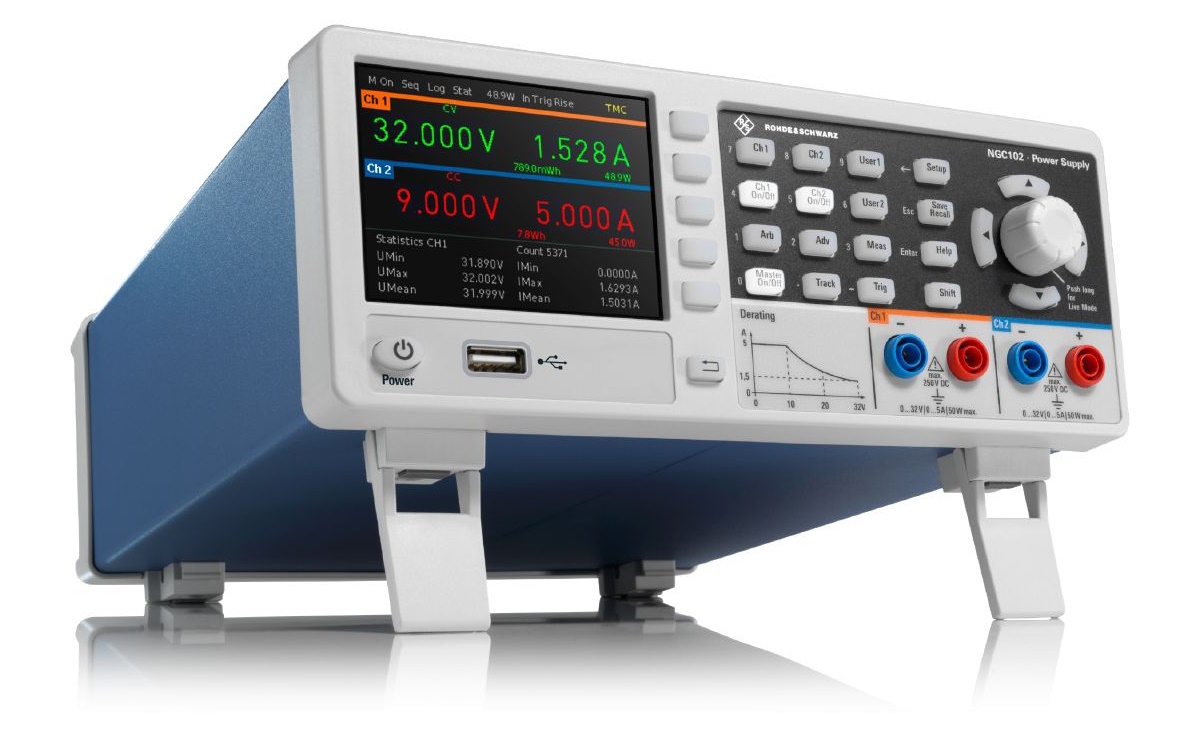

Name: R&S® NGC102
Brand: Rohde & Schwarz
Availability: BackOrder

Description

The R&S® NGC100 family consists of three models, all with a maximum total power of up to 100 W and a continuous voltage range from 0 V to 32 V. The single-channel R&S®NGC101 delivers a maximum of 10 A, the two- channel R&S®NGC102 a maximum of 5 A and the three-channel R&S®NGC103 a maximum of 3 A per channel. The two-channel and three-channel models enable users to connect multiple outputs in parallel or in series to increase the voltage or current.

The outputs are galvanically isolated, floating and protected against overloading and short circuits. Voltage, current and power values are output on a brilliant QVGA display. Developers and industrial users benefit from useful functions such as the sequenced start of channels, EasyArb and EasyRamp functions that are directly programmable on the device, an analog input for external control of voltage values, an external trigger input for controlling channels and arb steps, a wide range of logging functions and an integrated energy meter.

The R&S® NGC102 power supplies offer a variety of protective functions to prevent damage to the instrument and the DUT. You can set the maximum current (electronic fuse, overcurrent protection/OCP), the maximum voltage (overvoltage protection/OVP) or the maximum power (overpower protection/OPP) separately for each channel. The output channels switch off when any of their set limits are reached. Overtemperature protection (OTP) prevents the instrument from overheating.

Switching technology ensures high efficiency, with minimum heat dissipation even at full load.

In industrial applications, power supplies are often installed in 19" racks. The R&S®HZC95 rack adapter is available for this purpose and can even hold two instruments of this class side by side.

Additional connections for all channels, including sense lines, are provided on the rear panel to simplify use in system cabinets.

The power supplies can be controlled via LAN, USB or even via a GPIB interface when using the R&S® NGC100-G models.

Models	NGC101	NGC101-G	NGC102	NGC102-G	NGC103	NGC103-G
Channels	1	1	2	2	3	3
Max output power	100 W	100 W	100 W	100 W	100 W	100 W
Output power per channel	max. 100 W	max. 100 W	max. 50 W	max. 50 W	max. 33 W	max. 33 W
Output voltage per channel	0 V to 32 V	0 V to 32 V	0 V to 32 V	0 V to 32 V	0 V to 32 V	0 V to 32 V
Output current per channel	0 A to 10 A	0 A to 10 A	0 A to 5 A	0 A to 5 A	0 A to 3 A	0 A to 3 A
GPIB interface
