Fume Extractor Accessories, JBC FAE1
8 of 8 Article
The FAE1-2C is the most efficient solution to avoid exposure to solder fumes. It optimizes fume extraction only when needed. The extractor starts up only when soldering. This function saves power and the life of the equipment as well as the filter.
Thanks to a vacuum system integrated into the stand, the system also detects when the tool is at rest and automatically absorbs the fumes.
The FAE1 provides direct connection of up to 4 soldering or rework stations and stand fume extractions for up to 4 tools.
It can be used in two workspaces and has 4 working modes depending on requirements. It can be controlled via JBC stations, a pedal, a robotic system or a PC.
It has 3 predefined levels of aspiration: low, medium and high, and a custom mode with which you can set the airflow within the low (10%) and max rates (100%).
The FAE1-2K2C Kit contains:
- 2x FAE010 - ø50 flexible hose
- 2x FAE070 - ø50 flexible arm
- 1x P405 pedal
Optional accessories:
- FAE030 / FAE040 - accesory for stand aspiration
- FAE050 / FAE060 - fume inlet duct
Special Features
Efficient Fume Extractor
JBC takes fume extractors to a higher level with its new smart Fume Extractor FAE1-2C. Designed for electronics soldering applications, it is capable of removing fumes safely and efficiently.
Aspiration in use
The fume extractor starts up when the tool is lifted from the stand. This function saves power and extends the life of the equipment and the filters.

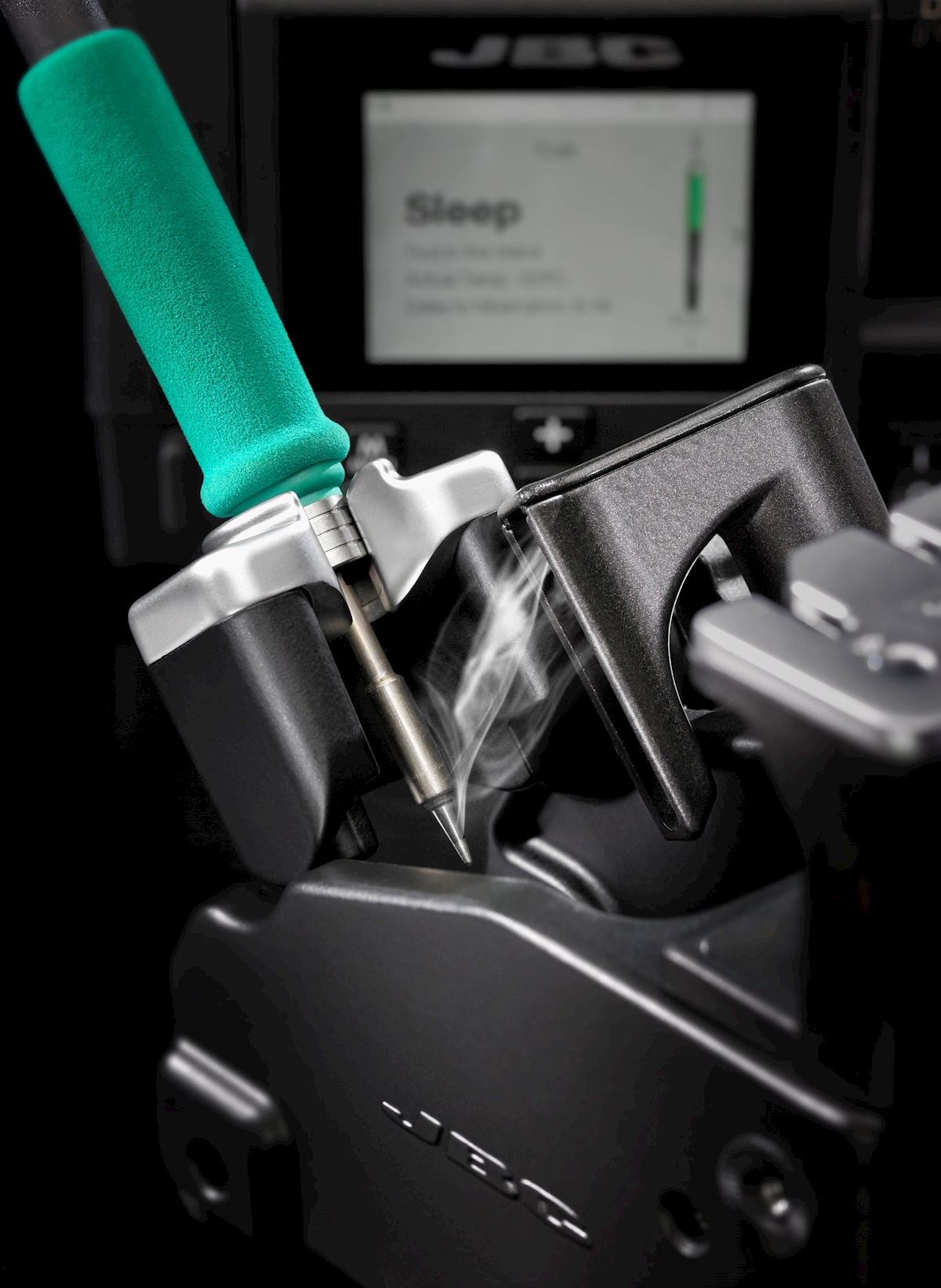

Aspiration on the stand
An innovative vacuum system integrated into the stand detects when the tool is returned to the stand. The vent absorbs the fumes automatically when the tool is at rest.Downloads
