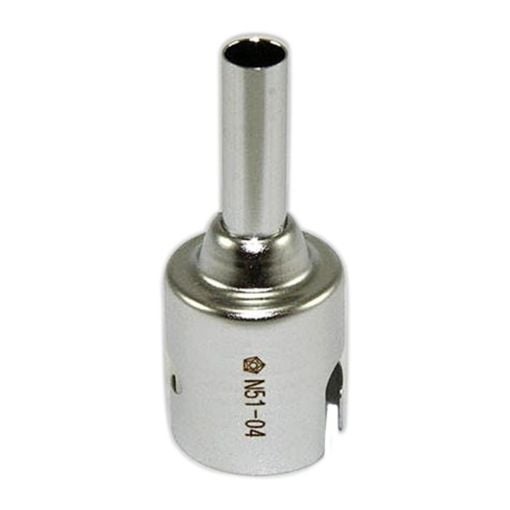

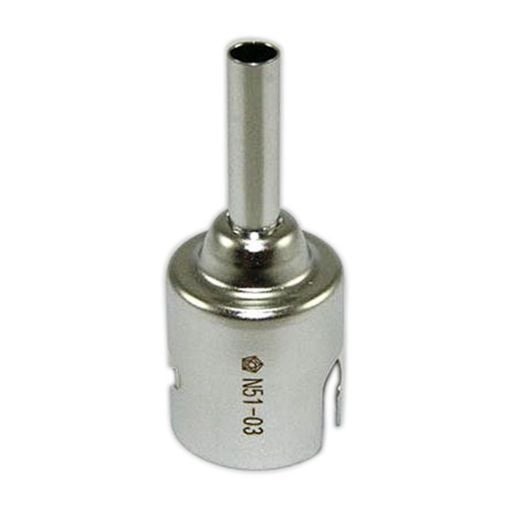

HAKKO N51 desoldering nozzles
7 of 7 Article
Holiday Shipping and Support Update
Our office will be closed for the Christmas holidays from 24th December to 2nd January 2026. We will be back from the 5th of January.
We wish you a Merry Christmas and a Happy New Year!
The Hakko FR-810B offers a powerful combination of high air volume and strong heating power to remove components quickly and efficiently. The powerful hot air flow allows the repair of densely packed circuit boards with high heat capacity. This ensures a sufficiently high air flow rate that allows work to be carried out in a third of the usual time. This reduces thermal load on the circuit board and components. In addition to the tried and tested functions, the Hakko FR-810B also features the vacuum lift-off function and the lift-off indicator. Both features allow components to be removed safely without damaging the PCB. Thanks to its impressive performance and generous air volume, the Hakko FR-810B marks a further development in the field of SMD rework stations.
Highlights
- High air volume flow and high performance for a wide range of SMD rework tasks
- Full digital control of temperature, airflow and time
- Easy removal of nozzles, uncomplicated maintenance
- Vacuum pick-up function with display ensures safety of components and P.W.B.
Specifications
| Model Name | FR-810B |
|---|---|
| Input Voltage | 220 VAC 60 Hz |
| Power Consumption | 1200 W |
| Airflow Capacity1 Dimensions (W x H x D) | 5-115 L/min 160 x 145 x 220 mm (6.3 x 5.7 x 8.7 in.) |
| Weight | 1.5 kg (3.3 lb.) |
UHD desoldering station
High performance and large air volume. The further development of the SMD rework station.
Lift off display
By presetting the lift-off function, a component can be lifted off automatically when the solder has melted. At this moment, the display indicates that a component is being lifted off. Even if the component and the solder joint are covered by the nozzle, the user can lift off the component easily and safely.
Vacuum lift-off function
The component is gently lifted off using a suction pad and a vacuum after the hot air has melted the solder. This prevents the conductor track from being removed from the PCB along with the component due to excessive force.
New nozzle type to improve temperature properties
With the new nozzles, the efficiency of uniform heating is increased by convection of the hot air within the nozzle. This is achieved by air slots in the upper part of the nozzle (only for BGA nozzles)
Change nozzles in a single operation
Nozzles for different components can be changed quickly. The conventional nozzles are also compatible. The heating element can be replaced easily and safely.
Cost-effective rework system with accessories
Thanks to the special stand, the circuit board holder and the preheater the working conditions can be controlled even more precisely.

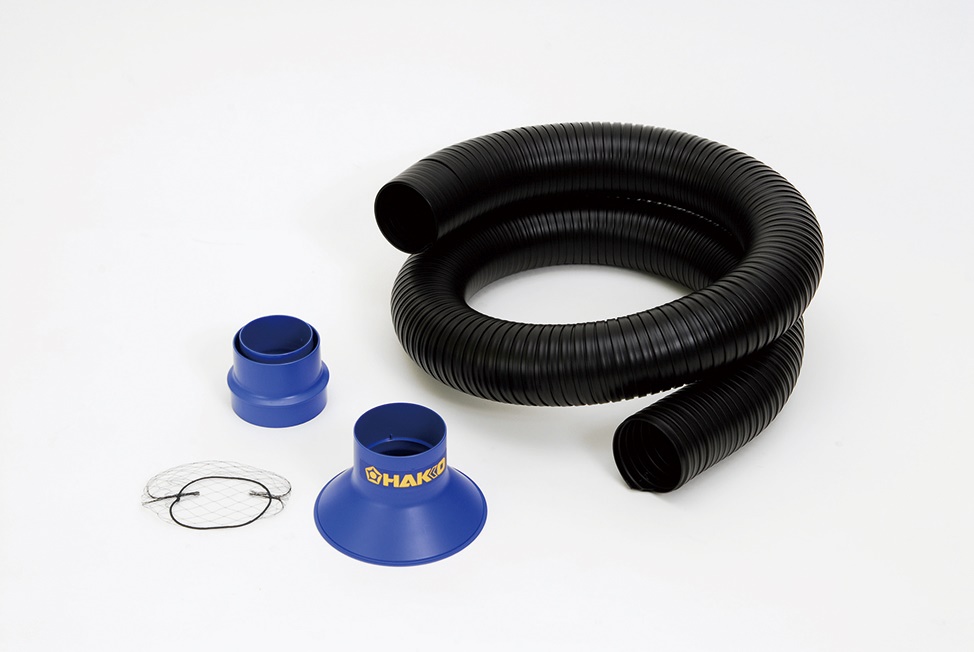

Accessories, HAKKO FR-810B
6 of 6 Article
Downloads
Datasheet
HAKKO FR-810B data sheet
Language: German
Version: CA00487EaYa001
File Size: 820.07 KiB
Release Date: 25.11.2016
HAKKO FR-810B data sheet
Language: English
Version: AHP14 Rev 2012-11
File Size: 349.90 KiB
Release Date: 10.05.2016
