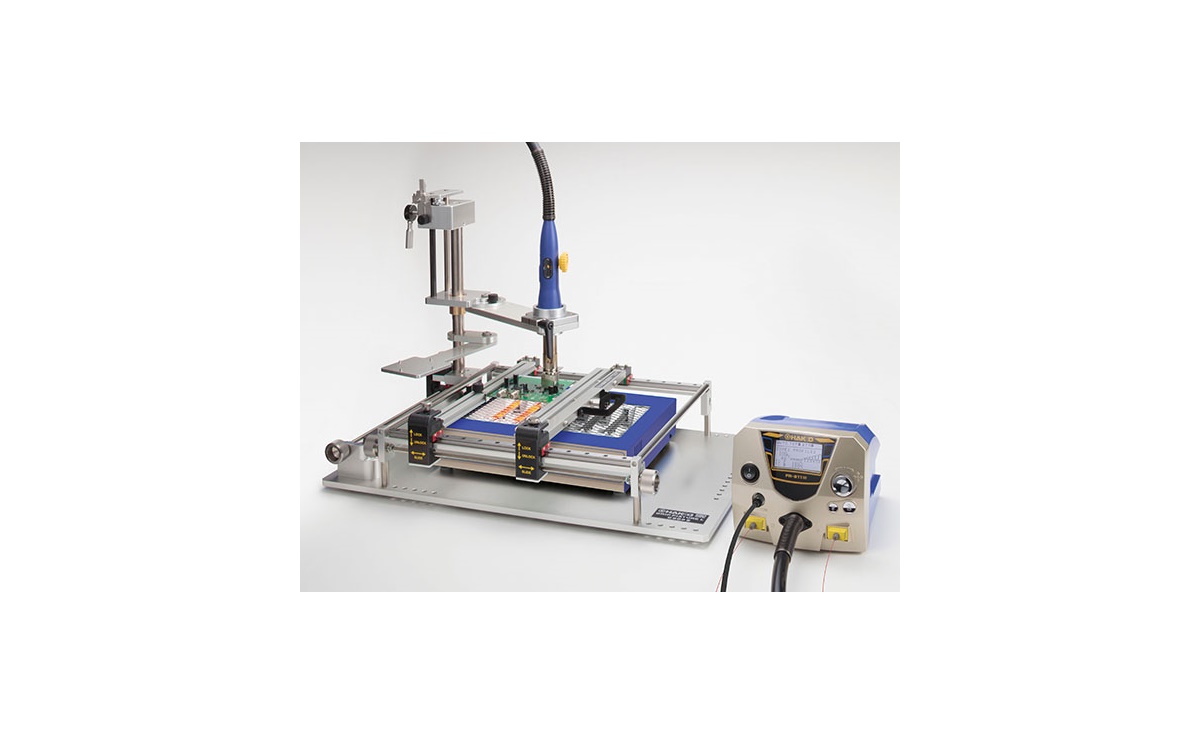

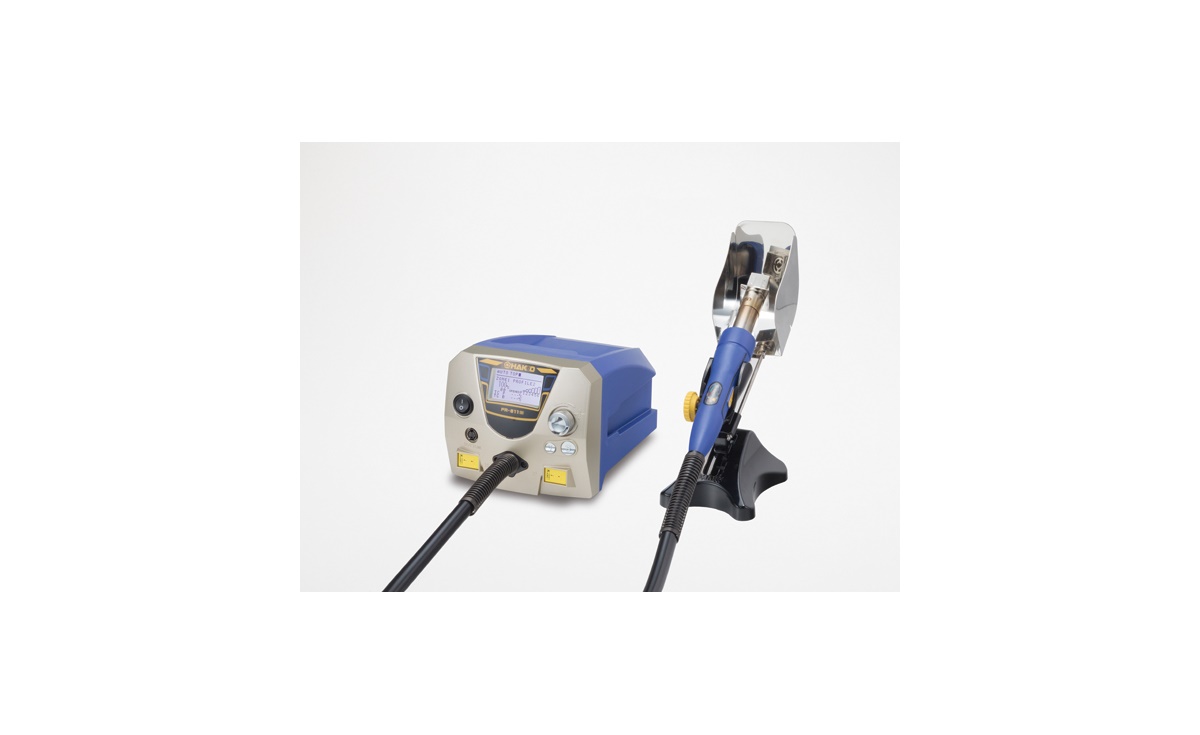

HAKKO FR-811 Hot Air Rework Station

Description

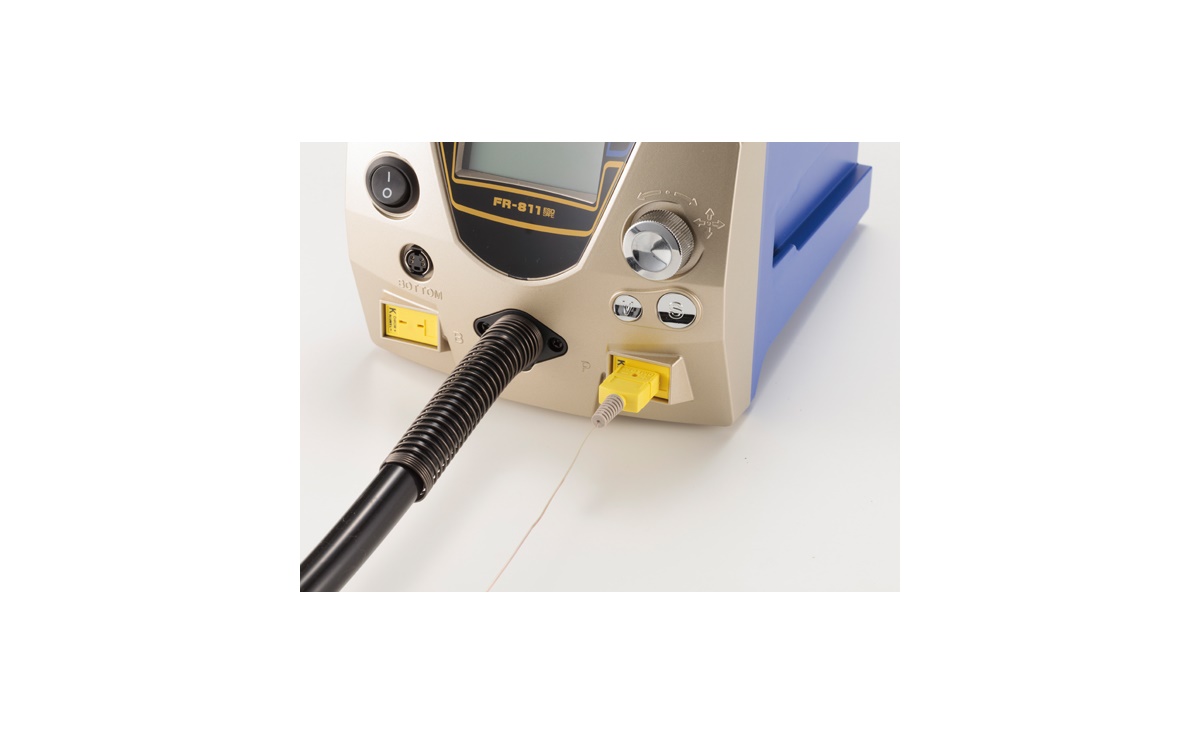

The compact Hakko FR-811 rework station combines all the functions required for precise SMD rework tasks in a single device. Equipped with a powerful hot air flow and high heating capacity, the station allows repairs to be carried out on PCBs with a high heat capacity. It also offers sufficient air flow and the right volume of hot air to process PCBs with a high packing density. The FR-811 has an intuitive menu that is shown on an easy-to-read LCD display. Parameters can be transferred directly or via USB stick using a USB terminal. This allows uncomplicated monitoring and temperature adjustments in real time.

The lift-off display and the vacuum lift-off function enable users to lift off concealed components easily and safely.

Changing the nozzles and replacing the heating element for different components can be carried out quickly and easily, which makes working with the system extremely efficient.

This makes working with the system extremely efficient.

Highlights

Temperature profile: combine hot air and bottom heat with six levels
High power and a strong hot air flow
Volume for fast and reliable component removal
User-friendly functions for SMD rework tasks

Specifications

Power source	230V AC 50/60 Hz
Power consumption (W)	1,200 W
Air flow	001 to 100% 5 to 115 L/min
Dimensions (B)×(H)×(T)mm	160 × 145 × 220
Weight	1.5 kg
Temperature range	50 – 600 °C

UHD desoldering station

300 W high-performance desoldering station with built-in vacuum pump
Safe desoldering with valve function
Avoidance of solder blockage
Improved maintenance options

140 W - enormous heat output

The FR-410 is the ideal station for desoldering micro soldering pads or for tight component placement, It enables perfect desoldering of components on multilayer PCBs.

Upgraded desoldering nozzles

Safe desoldering, valve function with high suction power. Suction starts 0.2 seconds after the trigger is pressed. The high pressure high pressure built up in this way enables complete desoldering.
Improvement of the heating element. The heating zone for the rear part of the heating element has been extended to ensure that the solder sucked in remains liquid right into the filter and does not cool down en route and clog the nozzle.
ACF (Anti Clogging Function). The pump continues to run for one second after the trigger is released. This This function ensures that the extracted solder is carried into the filter tube.
Reduction of solder clogging due to improved heating core. The additional protective device prevents a drop in temperature of the heating core due to contact with the front holder and reduces clogging of the solder.

Simple heating element replacement

Tip life increases exponentially by using a lower tempearture for a shorter time, as shown in the graph. HAKKO tips last longer than other brands thanks to the intelligent heating hystem and the sleep & hibernation functions.
