Accessory HIKMICRO G31
7 of 7 Article

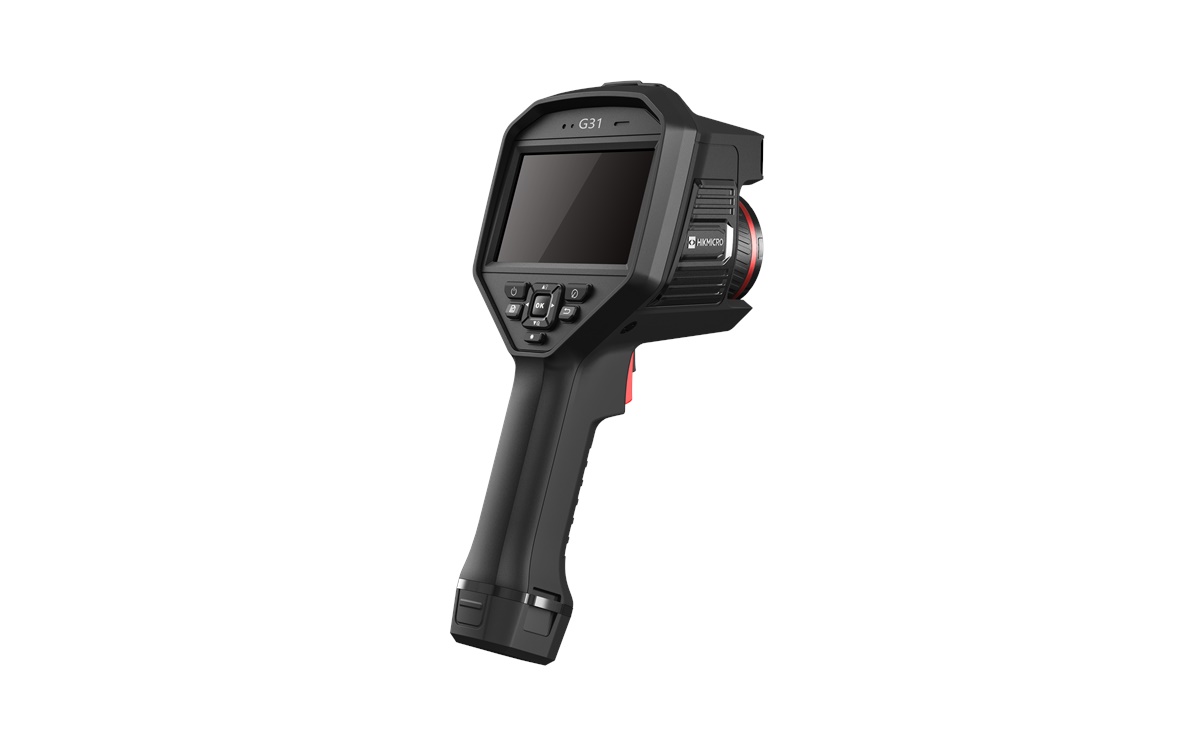

The HIKMICRO G31 is a dual-lens thermal imaging camera with manual focus from 0.1 m for taking thermal images and normal images.
The HIKMICRO SuperIR image enhancement technology scales stored thermal images and live views from 384 x 288 (110,592 pixels) to a resolution of of 768 x 576 (442,368 pixels).
Detects temperature changes and measures in real time for each of the central, hot and cold spots. 10 spots, one line, 5 rectangles and 5 circles are user-definable. 7 colour palettes are available for the display, furthermore there are 5 image variants: thermal, optical, fusion, PIP and cross-fade.
The unit offers 5 focus methods, automatic focus, continuous autofocus, manual focus, touch autofocus and laser rangefinder focus.
The high frame rate of 50 Hz guarantees smooth panning shots.
Each shot can be annotated, either by a voice memo of up to of up to 60 seconds or a text note of max. 200 characters.
The additional compass/GPS function of the Gx1 series offers the possibility of storing the exact location during measurement, which is useful for comparative measurements (for example, after repair or replacement of installations, improved or additional insulation of buildings) to be able to accurately assess the effectiveness of the initiated measure.
The unit supports live view, snapshots, etc., and the 64 GB SD card memory provides space for approx. 60,000 images or 54 hours of MP4 videos.
The HDMI interface allows further viewing via large screens and projectors.
The cameras of the Gx1 series are supplied with 3 rechargeable batteries and a double charging station in a sturdy carrying case. operating time of over 12 hours.
All models are equipped with an LED light and laser rangefinder. Easily share images and videos via Wi-Fi and the HIKMICRO Viewer app, analyse images, create real-time reports in the field.
The camera can be mounted on a tripod using the standard thread.
The optionally available attachment lenses extend the range of application, 1 x wide-angle and 2 x telephoto are available.
The Gx1H models are characterised by a particularly high measuring range (up to +2,000 °C) and therefore can be used in areas in areas with industrial furnaces.
| Specification | HIKMICRO G31 | HIKMICRO G41 | HIKMICRO G61 |
|---|---|---|---|
| IR resolution | 384 × 288 (110,592 pixels) ((SuperIR = 768 × 576 (442,368 Pixel）) | 480 × 360 (172,.800 pixels) (SuperIR = 960 × 720 （691,200 pixels） | 640 × 480 (307,200 pixels) (SuperIR = 1,280 x 720 (1,228,800 Pixel)) |
| Optical resolution | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) |
| Field of view (FOV) | 25° × 19° | 18.7° × 14° | 25° × 19° |
| Temperature range | -20 to 650 °C | -20 to 650 °C | -20 to 650 °C |
| NETD | < 35 mK (@ 25 °C, F#=1.0) | < 35 mK (@ 25 °C, F#=1.0) | < 35 mK (@ 25 °C, F#=1.0) |
| Image frequency | 50 Hz | 50 Hz | 50 Hz |
| Accuracy | ±2 °C / ±2 % | ±2 °C / ±2 % | ±2 °C / ±2 % |
| Interface | Type-C USB / Wi-Fi / Bluetooth / HDMI | Type-C USB / Wi-Fi / Bluetooth / HDMI | Type-C USB / Wi-Fi / Bluetooth / HDMI |
| Focus mode | Manual, AF, Laser, Touch | Manual, AF, Laser, Touch | Manual, AF, Laser, Touch |
| Min. focus distance | 0.1 m | 0.3 m | 0.3 m |
| Focal length | 15 mm | 25 mm | 25 mm |
| Memory | Removable 64 GB Micro SD card | Removable 64 GB Micro SD card | Removable 64 GB Micro SD card |
| Drop test height | 2 m | 2 m | 2 m |
| IP protection | IP54 | IP54 | IP54 |
| Power | 3x interchangeable Li-ion battery, operation time more than 4 hours each each | 3x interchangeable Li-ion battery, operation time more than 4 hours each each | 3x interchangeable Li-ion battery, operation time more than 4 hours each each |
High temperature models
| Specification | HIKMICRO G41H | HIKMICRO G61H |
|---|---|---|
| IR resolution | 480 × 360 (172,800 pixels) (SuperIR = 960 × 720 （691,200 pixels） | 640 × 480 (307,200 pixels) (SuperIR = 1,280 x 720 (1,228,800 Pixel)) |
| Optical resolution | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) |
| Field of view (FOV) | 18.7° × 14° | 25° × 19° |
| Temperature range | -20 to 2,000 °C | -20 to 2,000 °C |
| NETD | < 35 mK (@ 25 °C, F#=1.0) | < 35 mK (@ 25 °C, F#=1.0) |
| Image frequency | 50 Hz | 50 Hz |
| Accuracy | ±2 °C / ±2 % | ±2 °C / ±2 % |
| Interface | Type-C USB / Wi-Fi / Bluetooth / HDMI | Type-C USB / Wi-Fi / Bluetooth / HDMI |
| Focus mode | Manual, AF, Laser, Touch | Manual, AF, Laser, Touch |
| Min. focus distance | 0.3 m | 0.3 m |
| Focal length | 25 mm | 25 mm |
| Memory | Removable 64 GB Micro SD card | Removable 64 GB Micro SD card |
| Drop test height | 2 m | 2 m |
| IP protection | IP54 | IP54 |
| Power | 3x interchangeable Li-ion battery, operation time more than 4 hours each each | 3x interchangeable Li-ion battery, operation time more than 4 hours each each |
Complete set
Professional kit in hard case, everything has its place and is well protected.
Interchangeable Battery System
Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
Wide angle
The 5 models in the G-Series offer 5 different focus settings for electrical, HVAC and mechanical inspections where focusing on specific components is critical.

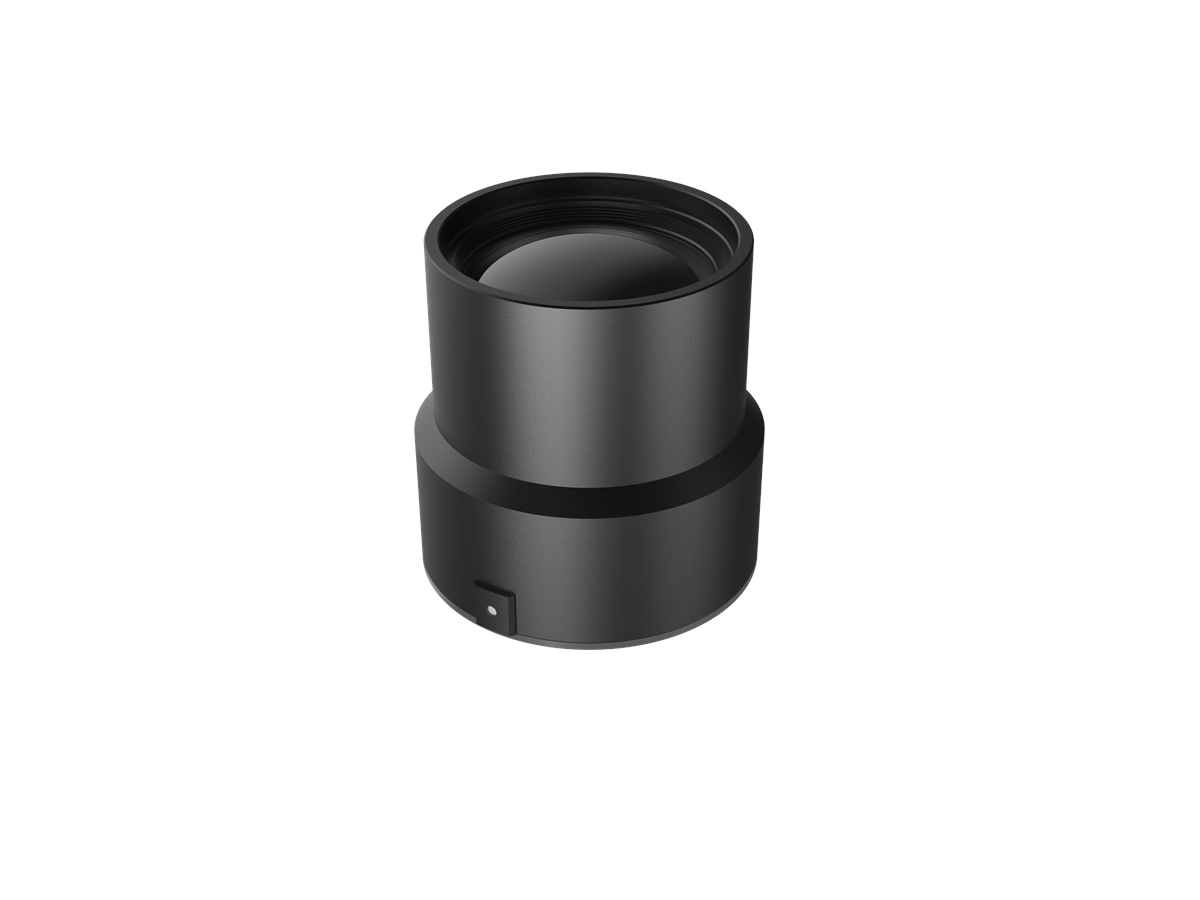

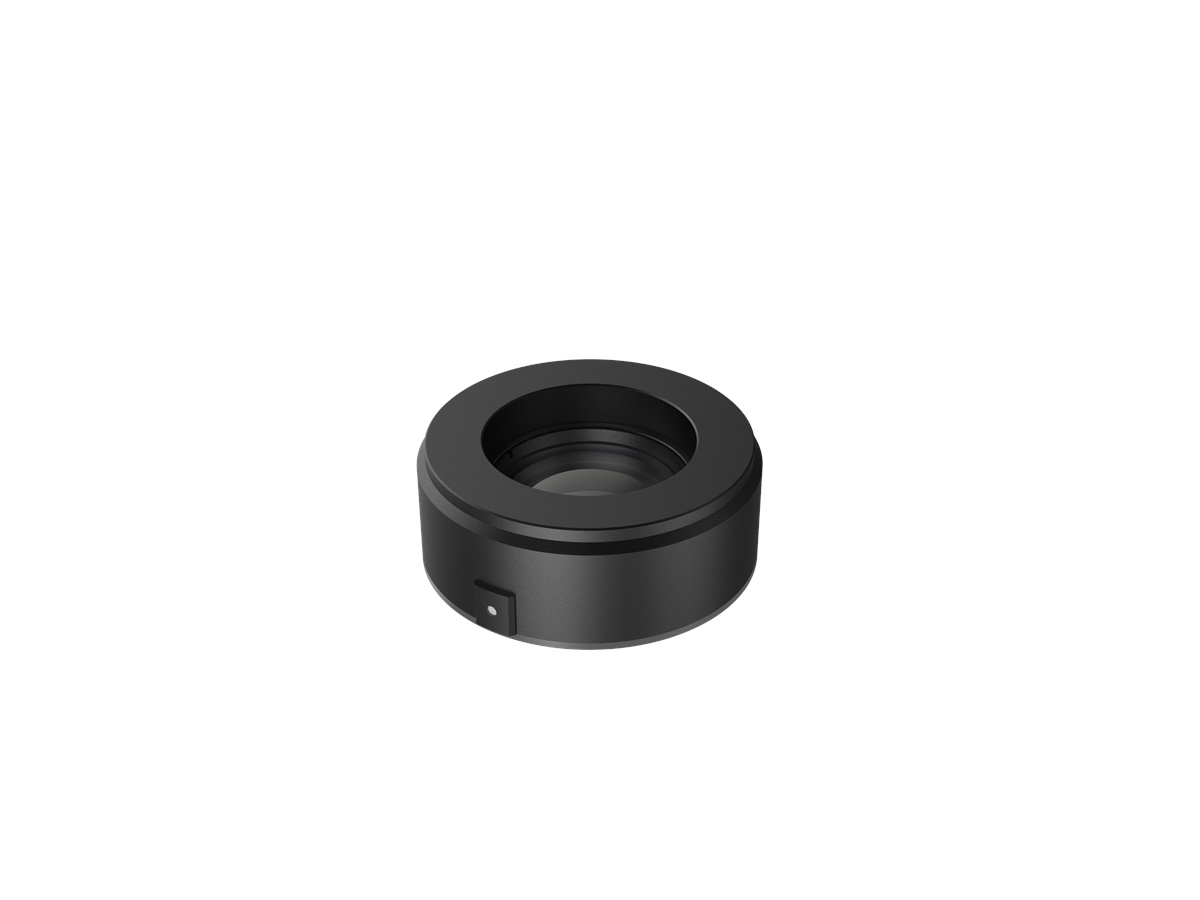

Add-on lenses
3 add-on lenses 0.5x, 2x, and 3.3x are available for choice. Different teleconverter gives different Field Of View, which gives more choices when facing different scenarios.
High Image Quality
Features a highly sensitive (< 35 mK) VOx detector to provide clear thermal images.
Laser distance meter
An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.
5 Image modes
Thermal, Fusion, PIP, blending and optical modes to suit your preferred view.
1-Tap Level & Span
Quickly highlights the area of the image you are interested in by narrowing the span with one tap on the 3.5" LCD touchscreen, instantly improving image contrast and highlighting potential problems.
Wi-Fi
Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.
Multiple Image Annotations
In addition to supporting voice, text and QR Code Scan annotations, GPS and compass functions automatically add location and direction information to the image, helping to improve inspection efficiency and productivity.
HIKMICRO Analyzer Software
Supports recording of radiometric video in-camera SD card storage, including all temperature data, for post analysis on PC software. Works seamlessly with HIKMICRO Analyzer software for intuitive viewing, advanced analysis, and processing of thermal data.
