The HIKMICRO SP40-L6 is a dual-optic thermal imaging camera with automatic/manual focus from 0.15 to 2 metres (depending on the model selected) for capturing thermal and normal images. HIKMICRO SuperIR image optimisation technology scales stored thermal images from 480 x 360 (172,800 pixels) to a resolution of 960 x 720 (691,200 pixels). Detection of temperature changes and real-time measurement for the central, hot and cold points respectively.
Ten spots, one line, five rectangles and five circles can be customised. Eight colour palettes are available for display, as well as five image variants: thermal, optical, fusion, PIP and crossfade. The device offers five focus methods: automatic focus, continuous autofocus, manual focus, autofocus, touch autofocus and laser-assisted autofocus. The high frame rate of 30 Hz guarantees smooth recordings when panning.
Each recording can be annotated with either a voice memo of up to 60 seconds, a QR code or a text memo of up to 200 characters. The additional compass/GPS function of the SP series offers the option of saving the exact location when measuring outdoors, which is important for comparative measurements (e.g. after repair or replacement of installations, improved or additional insulation of buildings) in order to be able to accurately assess the effectiveness of the measures taken.
The device supports live view, snapshots, etc. The 128 GB SD card memory offers space for approx. 130,000 images or 420 hours of MP4 videos (72 hours of radiometric videos). The HDMI interface enables further display via large screens and projectors.
The SP series cameras come with 2 batteries and a dual charging station in a sturdy carrying case, enabling an operating time of 8 hours. All models are equipped with an LED light and a laser rangefinder. Easily share images and videos via Wi-Fi and the HIKMICRO Viewer app, analyse images and create real-time reports on site. The camera can be mounted on a tripod using the UNC ¼"-20 thread; an adapter for other threads is available.
The optional attachment lenses available for the SP40, SP40H, SP60 and SP60H models extend the range of applications; 1 x standard, 1 x wide angle, 2 x telephoto and 2 x macro lenses are available.
The SPxxH models feature a particularly high measuring range (up to +2,200 °C) and can therefore also be used in industrial areas with very high working temperatures (e.g. blast furnaces).
| Secification | HIKMICRO SP40-L6 | HIKMICRO SP40-L9 | HIKMICRO SP40-L19 | HIKMICRO SP40-L37 |
|---|---|---|---|---|
| IR resolution | 480 × 360 (172,800 pixels) ((SuperIR = 960 × 720 (691,200 pixels）) | 480 × 360 (172,800 pixels) ((SuperIR = 960 × 720 (691,200 pixels）) | 480 × 360 (172,800 pixels) ((SuperIR = 960 × 720 (691,200 pixels）) | 480 × 360 (172,800 pixels) ((SuperIR = 960 × 720 (691,200 pixels）) |
| Optical resolution | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) |
| Field of view (FOV) | 6° × 4.5° | 9° × 6.8° | 18.7° × 14° | 37.3° × 27.8° |
| Temperature range | -20 bis 650 °C | -20 bis 650 °C | -20 bis 650 °C | -20 bis 650 °C |
| NETD | < 30 mK (@ 25 °C, F#=1.0) | < 30 mK (@ 25 °C, F#=1.0) | < 30 mK (@ 25 °C, F#=1.0) | < 30 mK (@ 25 °C, F#=1.0) |
| Image frequency | 30 Hz | 30 Hz | 30 Hz | 30 Hz |
| Accuracy | ±2 °C / ±2 % | ±2 °C / ±2 % | ±2 °C / ±2 % | ±2 °C / ±2 % |
| Interface | Type-C USB / Wi-Fi / Bluetooth / HDMI | Type-C USB / Wi-Fi / Bluetooth / HDMI | Type-C USB / Wi-Fi / Bluetooth / HDMI | Type-C USB / Wi-Fi / Bluetooth / HDMI |
| Focus mode | Manual, AF, Laser, Touch | Manual, AF, Laser, Touch | Manual, AF, Laser, Touch | Manual, AF, Laser, Touch |
| Min. focus distance | 2 m | 1 m | 0,15 m | 0,15 m |
| Focal length | 77.4 mm | 51.4 mm | 25.6 mm | 12.6 mm |
| Memory | Removable SD card | Removable SD card | Removable SD card | Removable SD card |
| Drop test height | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 |
| IP protection | IP54, IEC 60529 | IP54, IEC 60529 | IP54, IEC 60529 | IP54, IEC 60529 |
| Power | 2x Li-ion battery, operation time approx. 4 hours each | 2x Li-ion battery, operation time approx. 4 hours each | 2x Li-ion battery, operation time approx. 4 hours each | 2x Li-ion battery, operation time approx. 4 hours each |
High Temperature Models
| Secification | HIKMICRO SP40H-L6 | HIKMICRO SP40H-L9 | HIKMICRO SP40H-L19 | HIKMICRO SP40H-L37 |
|---|---|---|---|---|
| IR resolution | 480 × 360 (172,800 pixels) ((SuperIR = 960 × 720 (691,200 pixels）) | 480 × 360 (172,800 pixels) ((SuperIR = 960 × 720 (691,200 pixels）) | 480 × 360 (172,800 pixels) ((SuperIR = 960 × 720 (691,200 pixels）) | 480 × 360 (172,800 pixels) ((SuperIR = 960 × 720 (691,200 pixels）) |
| Optical resolution | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) |
| Field of view (FOV) | 6° × 4.5° | 9° × 6.8° | 18.7° × 14° | 37.3° × 27.8° |
| Temperature range | -40 bis 2,200 °C | -40 bis 2,200 °C | -40 bis 2,200 °C | -40 bis 2,200 °C |
| NETD | < 30 mK (@ 25 °C, F#=1.0) | < 30 mK (@ 25 °C, F#=1.0) | < 30 mK (@ 25 °C, F#=1.0) | < 30 mK (@ 25 °C, F#=1.0) |
| Image frequency | 30 Hz | 30 Hz | 30 Hz | 30 Hz |
| Accuracy | ±2 °C / ±2 % | ±2 °C / ±2 % | ±2 °C / ±2 % | ±2 °C / ±2 % |
| Interface | Type-C USB / Wi-Fi / Bluetooth / HDMI | Type-C USB / Wi-Fi / Bluetooth / HDMI | Type-C USB / Wi-Fi / Bluetooth / HDMI | Type-C USB / Wi-Fi / Bluetooth / HDMI |
| Focus mode | Manual, AF, Laser, Touch | Manual, AF, Laser, Touch | Manual, AF, Laser, Touch | Manual, AF, Laser, Touch |
| Min. focus distance | 2 m | 1 m | 0,15 m | 0,15 m |
| Focal length | 77.4 mm | 51.4 mm | 25.6 mm | 12.6 mm |
| Memory | Removable SD card | Removable SD card | Removable SD card | Removable SD card |
| Drop test height | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 |
| IP protection | IP54, IEC 60529 | IP54, IEC 60529 | IP54, IEC 60529 | IP54, IEC 60529 |
| Power | 2x Li-ion battery, operation time approx. 4 hours each | 2x Li-ion battery, operation time approx. 4 hours each | 2x Li-ion battery, operation time approx. 4 hours each | 2x Li-ion battery, operation time approx. 4 hours each |
High Image Quality
Powered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.
Up to 2200°C Temperature Range
With a measurement range of up to 2200°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*SP40H/SP60H/SP120H Only)
High-Precision Detection
By integrating <20m NETD, 12 μm detector pitch, and 0.34 mrad IFOV, the High-Definition Thermal Detail technology delivers exceptional sensitivity and clarity, revealing more intricate thermal details. (*SP120H Only)
Interchangeable Battery System
Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 8 hours of operation. You can stay powered up for even the longest inspections.

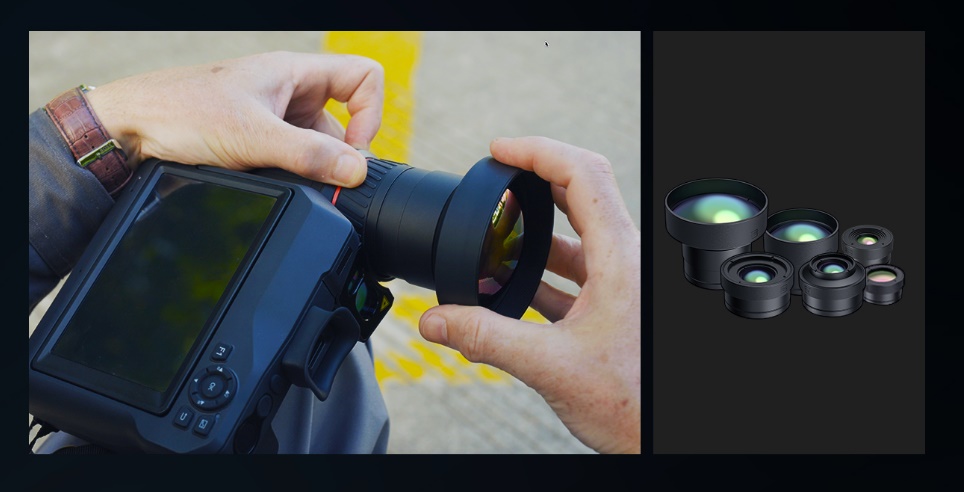

Interchangeable lenses & add-on lenses
3 add-on lenses 0.5x, 2x, and 3.3x are available for choice. Different teleconverter gives different Field Of View, which gives more choices Interchangeable lenses allow you to pick the field of view for your inspections. Different lenses have different fields of view, giving you more options for different scenarios to see and capture more detailed images and to measure small problems more accurately.
Flexible Rotating Lens and Screen
The 90° rotating screen and the 180° rotating lens design help to easily view the area around, between, above, or below the target. Keeping a safe distance allows for equally flexible inspections.
Laser distance meter
An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.

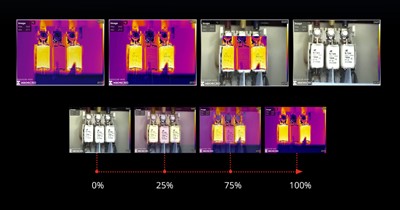

5 Image modes
Thermal, Fusion, PIP, blending and optical modes to suit your preferred view.
Continuous Digital Zoom
1.0x to 12.0x continuous digital zoom provides more image details.

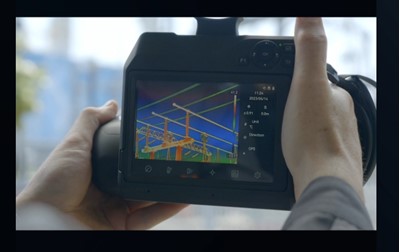

One-second fast focusing
Support for 5 focus modes (Laser-Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) with a fast focus speed of 1 second to match your workflow, optimize image clarity, and ensure measurement accuracy.
1-Tap Level & Span
Supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems.
Wi-Fi
Connect HIKMICRO Viewer App via Wi-Fi to transfer photos or videos from camera to mobile device. Analyze, share images, and generate reports in real-time on-site.
Designed for Outdoor
Water and dust resistant to IP54 standards and drop tested to a height of 1 m. 1024 x 768 OLED electronic viewfinder and auto-brightness 1920 × 1080 resolution 5.1-inch OLED touchscreen. Enables easy outdoor inspections in bright, challenging light and harsh conditions. (*SP120H only)
Multiple Image Annotations
Quickly annotate your images with voice, text or QR codes. Add GPS and compass direction to outdoor images to include geolocation data.

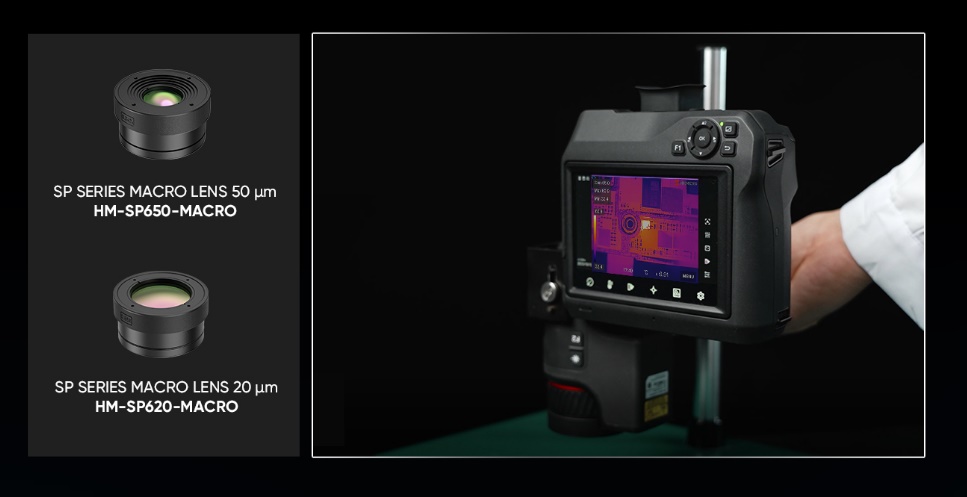

Precise, Flexible, Stable Microscope Stand
Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis. (*SP40/SP40H/SP60/SP60H Only)
HIKMICRO Analyzer Software
HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.
Complete set
Professional kit in hard case, everything has its place and is well protected.
